Stainless Steel / 2mv/V / IP66 Compression & Tension Load Cell (1 t to 30 t)

Name: Stainless Steel / 2mv/V / IP66 Compression & Tension Load Cell (1 t to 30 t)
Brand: all-electronics-online.com
SKU: 684179411
Availability: InStock
Rating: 4.9 (136 reviews)

Price:	US $ 134/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QH-61A
Type:	Pancake Load Cell
Capacity:	From 1t to 30t
10t Size:	M32*1.5
1t-5t:	M16*1.5

Product Description

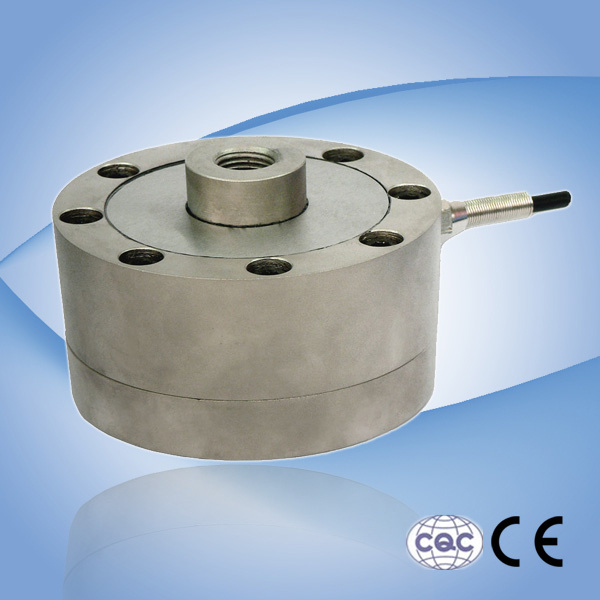

Stainless Steel /2mV/V / IP67 Compression & Tension Load Cell (1 t to 30 t)

QH-61A load cells are available in the capacities from 1t to 30t
Alloy steel or aluminum alloy construction with spoke type.
Silicon adhesive sealed inside, waterproof, anti-corrosion and suitable for all kinds of environment.
Suitable for truck scale, railway scale,hopper scales and other electronic weighing devices.

Features:

Capacity:1t to 30t
Defend grade: IP66.
Reliable performance,integral installation and easy installation.

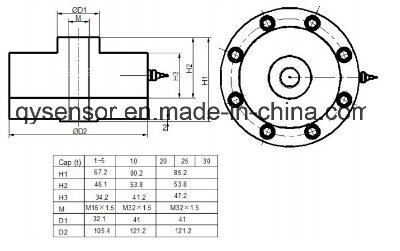

Electrical connection and Dimensions:

Technical Specifications:

Specifications:
capacity	t	1,2,3,5,10,20,25,30
safe overload	%FS	150
ultimate overload	%FS	200
rated output	mV/V	2.0 ± 0.008
excitation voltage	Vdc	9~ 12
combined error	%FS	± 0.05
zero unbalance	%FS	± 1
non-linearity	%FS	± 0.05
hysteresis	%FS	± 0.05
repeatability	%FS	± 0.03
creep	%FS/30min	± 0.03
input resistance	Ω	700 ± 10
output resistance	Ω	700 ± 5
insulation resistance	M Ω	≥ 5000 @ 50 Vdc
operating temperature range	°C	-20 ~ +55
compensated temperature range	°C	-10 ~ +40
temperature coefficient of SPAN	%FS/10°C	± 0.03
temperature coefficient of ZERO	%FS/10°C	± 0.05

Electrical connection:

Excitation+ red Excitation- black Signal+ green Signal- white
Four-core shielded cable with polyethylene.
Cable diameter :5mm
Cable length:12m
The cable length could be chose by customer's application.
The shape also can be customized according to customer's application.

Welcome your inquiry and email !

Han Zhong Quan Yuan Electronic Co., Ltd. is a professional high-tech enterprises committed to the research, development, design and manufacture and sale of load cell, high precision resistance strain gauge, sensor, fittings for electronic weighing apparatus and automatic control system with QuanYuan brand.

QuanYuan are certified according to ISO 9001: 2000 and produce strictly in accordance withR60 recommendation of international Organization of Legal Metrology (OIML).

All electronic products are with good performance and high-level quality, which are widely used in electronic weighing apparatus, metallurgy, construction machinery, chemical and other industries. The products are not only sold very well in domestic, but also welcomed in Europe, America, Southeast Asia and other main countries in abroad. QuanYuan win high praise and good reputation from users in domestic and abroad. The production and sales are growing up year by year in successively.

In order to better satisfy the demand of international market, QuanYuan is going to expand production scale and invest in the construction of new production base, with an area of nearly 15, 000 square meters, which is expected to be fully put into production in 2012.

Sincerely welcome the cooperation and guidance from new and old customers in worldwide.
