Shenzhen Superb Heater Technology Co., Limited >> Stainless Steel Cartridge Heater Resistance Heater Immersion Heater Heating Element

Stainless Steel Cartridge Heater Resistance Heater Immersion Heater Heating Element

Stainless Steel Cartridge Heater Resistance Heater Immersion Heater Heating Element
Price: US $ 5-20/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: Cartridge Heater
Name: Cartridge Heater

Product Description

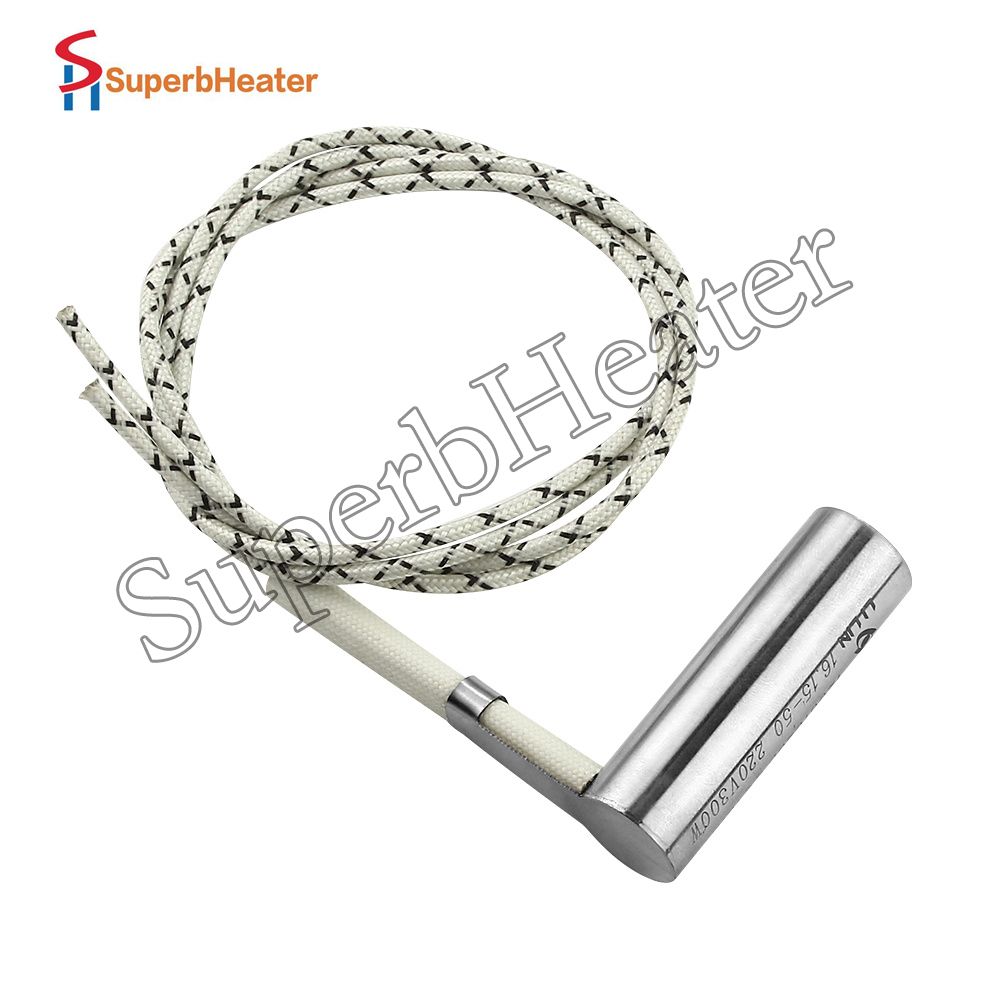

Cartridge Heater Element component

    1. China and Europe High-grade nickel chromium resistance wire for cartridge heater

    2. Japan and USA  MgO core for cartridge heater

    3. Seamless Stainless steel tube for cartridge heater

    4. Terminal type and Swaged in lead type cartridge heater

• Special sizes, wattages, and materials are available upon request;

• Custom-designed to meet your specifications;

• Pin leads are available

Product Details

Diameter(mm)3; 4; 5; 6; 6.5; 8.0; 10; 12; 12.5; 14; 16; 18; (Non-standard can be customized)
ApplicationMold Tools,Packaging Machinery,Plastic Process Machinery, Food Process Machinery,Printing...etc
Recommended temperature 750 ºC
Insulation resistance (500 [V-DC] unheated)≥50MΩ
The maximum leakage current (253 [V-AC] unheated)≤0.5mA
High voltage stability (temperature) Rated voltage≤24V -500V-DC> 24V 1500V-AC
Wattage Tolerance+5% - 10% (closer tolerances are available upon special request)
Input voltage12V-440V (non-standard can be customized)
Terminal unheated length<3mm-20mm
Non-terminal unheated length<3mm-20mm


Connecting wires:

a. glass fiber insulation nickel wire (temperature 450 degrees -750 degrees)

b. Crimp Teflon line (temperature 250 degrees)

c. Crimp silicon insulated wire (temperature 200 degrees)

d. Crimp fiberglass insulated nickel wire (temperature 450 degrees)

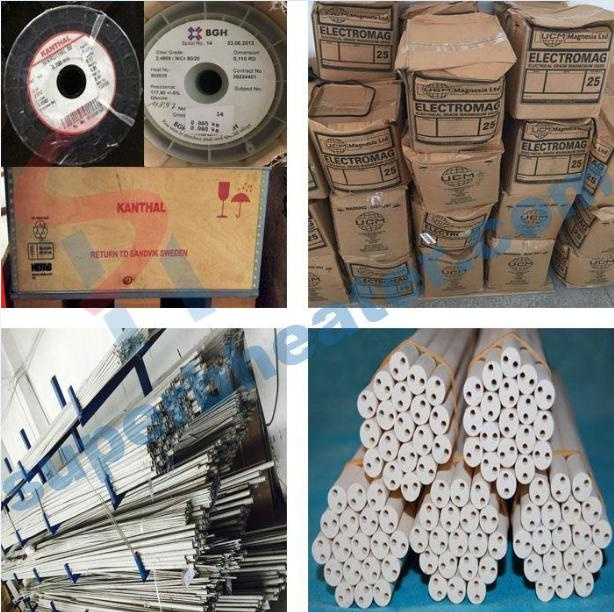

High-quality materials

Insulation: UCM(UK)  Magnesium Oxide Powder ;KANTHAL ,BJH resistance wires ,SS321Seamless Stainless steel tube;OTC(USA) Tateho (Japan) mgo rod...

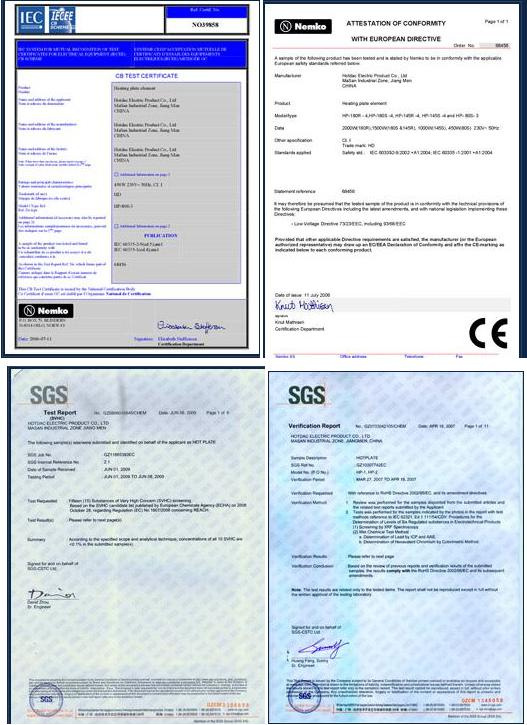

Our certificate

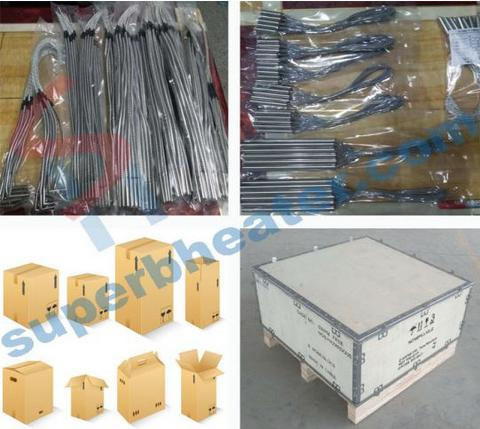

Packing and Delivery
1. Packing details: plastic bag + carton
2. Delivery time: within 7 days
3. Delivery ways: by air, sea or express




Thank you for your visiting, any needs please contact me!

Shenzhen superb heater technology Co., Ltd, Founded in 1985, Start is a state run Magnesium Oxide factory, After privatization reform To become a professional to provide all kinds of electric heating products of the comprehensive private joint-stock companies, After years of development company now grown to have include: ChaoHu heating material fitting, JiuDing machinery and spare parts, LiLin cartridge heaters, chaohu band coiling heaters, JXC Industrial heaters five plants, more than 200 employees, assets of more than $ 5 million, Products include various types of industrial heater, cartridge heater, hot runner, thermocouples, band heater and a variety of heater materials and heater equipment to meet customers one-stop shopping for all kinds of heating element, heating materials and heating equipment needs.

Over the years we are committed to technology and product quality improvement, many products similar products meet international quality, in China in the lead, swaged-in leads cartridge heater and diameter less 4mm cartridge heater as China's first single, cost-effective products to give our customers highly recognized, it has been to establish and maintain long-term cooperative relations with more than 700 customers in over 40 countries.

We will insist on our stable style to establish good image in both customers and our partners. We have been insisting on the "REDUCING THE COST AND GIVING ADVANGTAGE TO CUSTOMERS " To provide customers with better products and services, and grow with customers

After long-term accumulation, we have set up agents and partners in India, Dubai, USA, Russia, Brazil, Argentina, Thailand, Korea and other countries to provide convenient and quick service
