Stainless Steel Control Desk

Name: Stainless Steel Control Desk
Brand: all-electronics-online.com
SKU: 744602995
Availability: InStock
Rating: 5 (135 reviews)

Price:	US $ 168/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	TPX/TP series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dimension:	Optional
Type:	Power
Structure:	Protection
Certification:	ISO9001,RoHS,SGS,TUV
Brand:	Tibox

Product Description

Control Desk
TP series control desk

Material: Cold steel sheet
Thickness of sheet steel
Body: 1.5mm, front door: 2.0mm, upper cover: 2.0mm, galvanised mounting plate: 2.5mm
Color for the control desk: RAL7032 or RAL7035
Supply include: Control desk, front door with lock system, upper cover with cover stop 2pcs, 2pcs gland cable plates, mounting plate
The accessorries of plinth 100mm to be supplied separately according to the client's requirment.

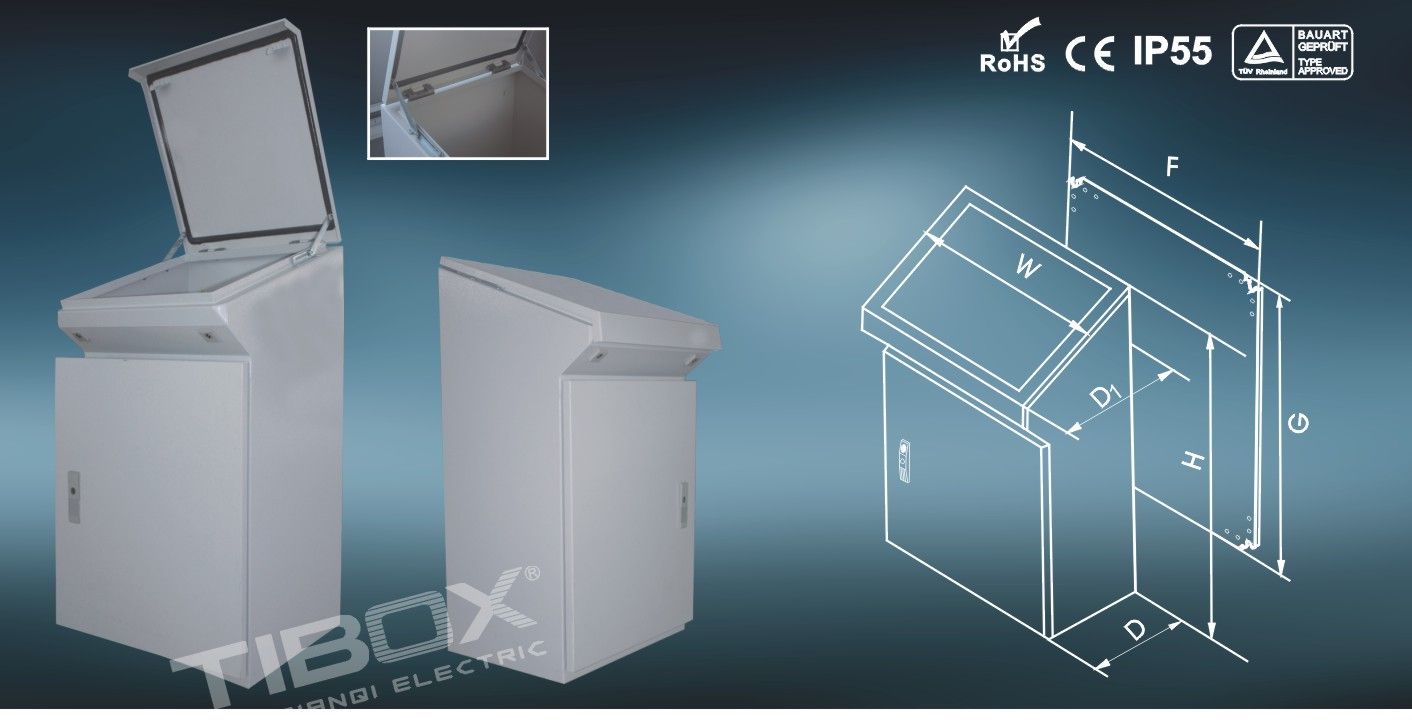

TPX series stainless steel control desk

Material: Stainless steel AISI304 or AISI316
Thickness of sheet steel
Body: 1.5mm, front door: 2.0mm, upper cover: 2.0mm, galvanised mounting plate: 2.5mm
Supply include: Control desk, front door with lock system, upper coverwith cover stop 2pcs, 2pcs gland cable plates, mounting plate
The accessorries of plinth 100mm to be supplied separately according to the client's requirment.

W H D(mm)	Model	NO. OF DOOR	size of mounting plate(FXG)	weight	plinth 100mm
1	500 X 960 X 400(480)	TP01	1 door	430 X 780mm	38.8KGS	PL54-TP
2	600 X 960 X 400(480)	TP02	1 door	530 X 780mm	52KGS	PL64-TP
3	800 X 960 X 400(480)	TP03	1 door	730 X 780mm	65.2KGS	PL84-TP
4	1000 X 960 X 400(480)	TP04	2 doors	930 X 780mm	79.5KGS	PL104-TP
5	1200 X 960 X 400(480)	TP05	2 doors	1130 X 780mm	90.3KGS	PL124-TP
6	500 X 960 X 400(480)	TPX01	1 door	430 X 780mm	38.8KGS	PL54-TPX
7	600 X 960 X 400(480)	TPX02	1 door	530 X 780mm	52KGS	PL64-TPX
8	800 X 960 X 400(480)	TPX03	1 door	730 X 780mm	65.2KGS	PL84-TPX
9	1000 X 960 X 400(480)	TPX04	2 doors	930 X 780mm	79.5KGS	PL104-TPX
10	1200 X 960 X 400(480)	TPX05	2 doors	1130 X 780mm	90.3KGS	PL124-TPX

Zhejiang tianqi electric Co., Ltd., with 10 years experience in electrical industry, is one of the leading manufacturer of distribution boxes and panel meters in China. Founded in China 1998, located in the beautiful land scape of the largest China bamboo sea in anji economic development zone which place is in the north of zhejiang, covers an area of 100, 000 square meters and has 500 employees.

T&j's product range consists of wall mounting enclosures, floor standing cabinets, stainless steel enclosures, plastic enclosures, terminal boxes, power distribution cabinets, floor standing modular cabinets, console systems, analog panel meters, digital panel meter, DIN rail panel meter, current transformer, shunt.

We also got the quality system certificate of CE, rosh, IP65 and ISO 9002 for our products. It has established the good commercial relations with America, west-europeam, east-Asia, Africa etc.

All kinds of electronics products and its accessories will be designed and manufactured according to the customer' s special requirement.

Sticking to the policy as "no quality, no future!
