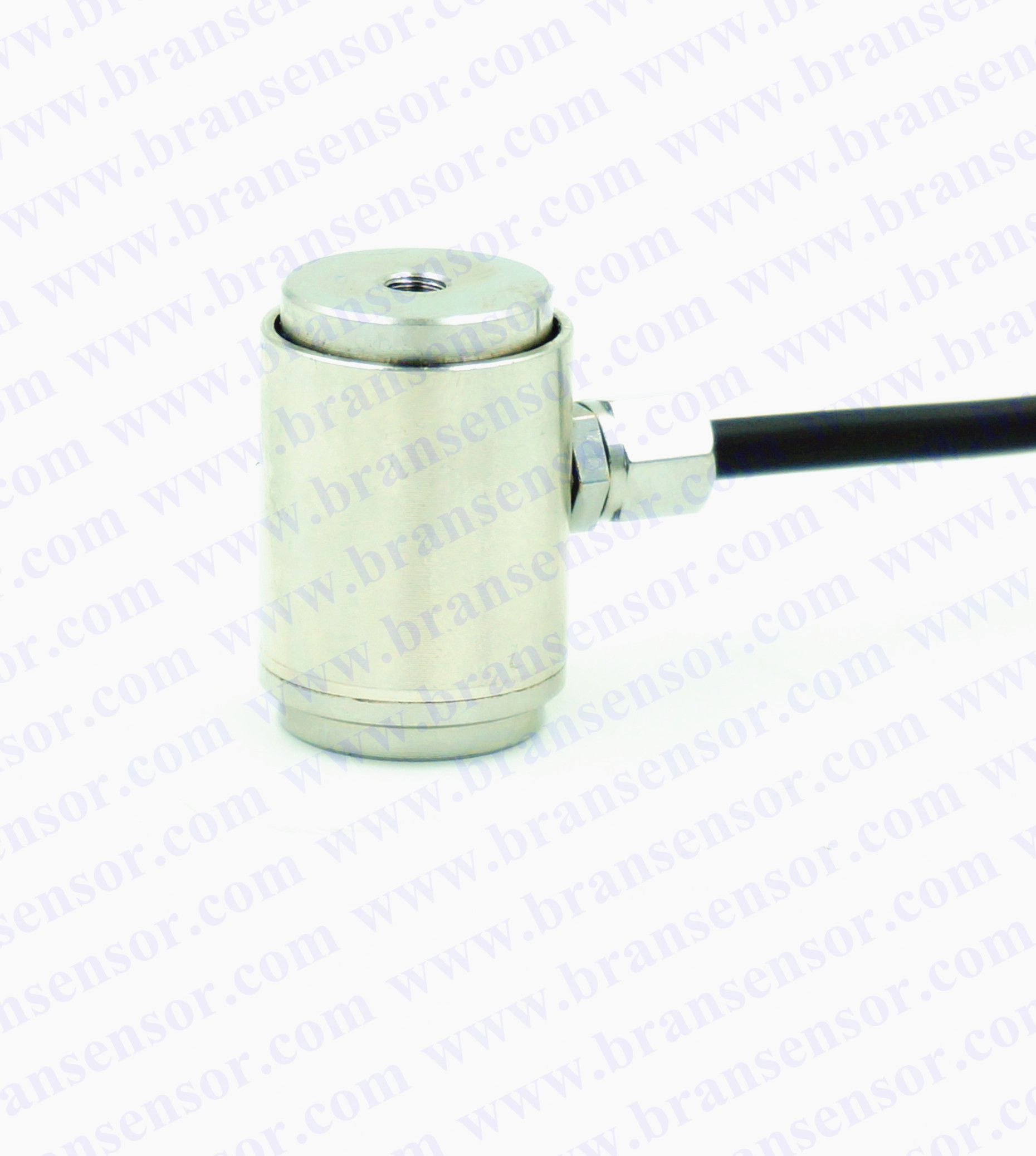

Stainless Steel in Line Load Cell (B304)

Name: Stainless Steel in Line Load Cell (B304)
Brand: all-electronics-online.com
SKU: 820549345
Availability: InStock
Rating: 4.8 (22 reviews)

Price:	US $ 30-40/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	B304
Size:	2022mm(HD)
Capacity:	2000n
Accuracy:	0.5%
Load Direction:	Tension and Compression
Type:	Sub-Miniature Tension & Compression Load Cell
Pattern:	Tension and Compression
Out-Wire:	5 Wires
Feature:	High Accuracy
Production Process:	Stain Gauge

Product Description

1. Name: High accuracy In Line Tension and Compression Load Cells

2. Material and Capacity: 17-4PH S.S 50,100,150,200,250,300N; 500,1000N

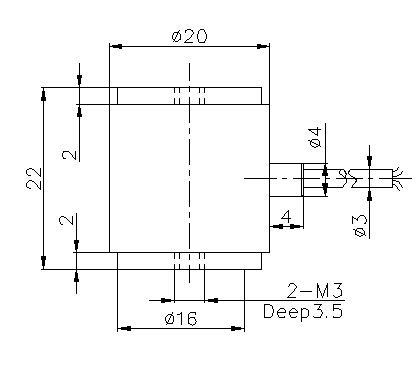

3. Details of Design (Design could be customized)

4. Datasheet

Number	Specifications	Technique
1	Capacity	50,100,150,200,250,300N 500,1000N
2	Rated output	2.0±10%mV/V
3	Zero balance	±0.05mV/V
4	Non-linearity	0.05%F.S.
5	Hysteresis	0.05%F.S.
6	Repeatability	0.05%F.S.
7	Creep(30min)	0.05%F.S.
8	Temp.effect on output	0.05%F.S./10ºC
9	Temp.effect on zero	0.05%F.S./10ºC
10	Input impedance	350±30Ω; 350±10
11	Output impedance	800~1100Ω
12	Insulation	≥5000MΩ/100VDC
13	Recommended excitation	10V
14	Maximum excitation	15V
15	Compensated temp range	-10~60ºC
16	Operation temp range	-20~80ºC
17	Safe overload	150%F.S.
18	Ultimate overload	200%F.S.
19	Cable size	φ3×4000mm
20	Material	Stainless Steel
21	IP Class	IP67/68

5. Application details

Model B304 is a Miniature Threaded In Line Load Cell built for Endurance or Inline Tension or Compression applications. The standard B304 Miniature Threaded In Line Load Cell model has a very robust construction available in 17-4 Stainless Steel, with male threads on both ends and a 5 foot #34 Awg 4 conductor braided shielded cable. This product offers an exceptional weight of 0.3 oz (8.5 g).

The Miniature Threaded In Line Load Cell offers high accuracy. It has nonlinearity of ±0.05% and deflection of 0.001 to 0.002 in nominal. The standard B304 Miniature Tension and Compression Load Cell can be modified or customized to meet your requirements and most capacities are in our inventory, making them available for 24 hour shipping. Similar to our entire Load Cell product line this model is manufactured in the USA and uses metal foil strain gauge technology.

6. Product Highlights:
High speed, low deflection
Minimal mounting clearance
Outer diameter of 25.4mm
17-4 PH stainless-steel construction
For use in both tension and compression
Utilizes metal foil strain gauge technology

Sub-Miniature Tension & Compression Load Cell (Miniature/Inline Threaded) could be made according to your own design.
