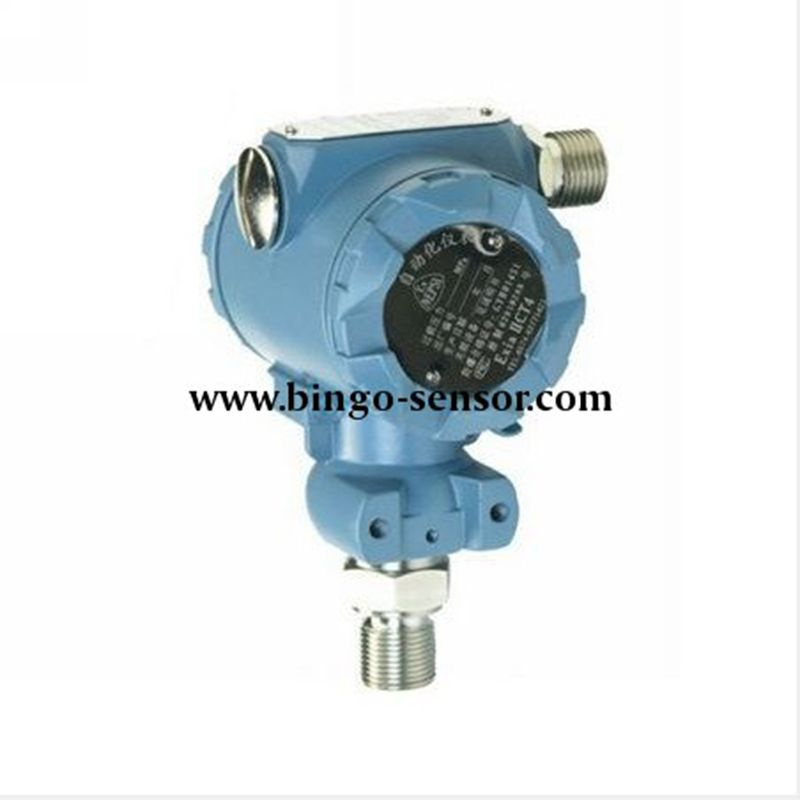

Stainless Steel Industrial Pressure Transmitter PT-ID001

Name: Stainless Steel Industrial Pressure Transmitter PT-ID001
Brand: all-electronics-online.com
SKU: 726084355
Availability: InStock
Rating: 4.3 (77 reviews)

Price:	US $ 1-11/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PT-ID001
Overload Pressure:	1.5xfull Scale
Power Voltage:	12~30VDC,24VDC
Output Signals:	4~20mA, 0~10mA
Compensated Temperature:	0~50c

Product Description

Characteristic

Pressure range: 0~0.1bar and 0~600bar
Variety of certifications
Protection classification IP67
Small thermal effect
Application: The equipment of petroleum, chemical industry, metallurgy, pharmacy and others

Technical Parameter

Pressure range	Gauge Pressure: 0~0.1bar and 0~600bar
Overload pressure	1.5×full scale
Accuracy	0.25%F.S.,0.5 %F.S.
Power voltage	12~30VDC,24VDC
Output signals	4~20mA, 0~10mA, 1~5VDC, 0~10VDC, 0~5VDC, customer
Compensated temperature	0~50ºC ,-10~80ºC ,customer
Media	-25~85ºC
Environment	-30~85ºC
Storage	-40~125ºC
Temperature influence	0.02%F.S./ °C
Electrical connection	DIN, M12×1(4-pin), Terminals, customer
Protection class	IP65,IP67
Mechanical connection	M20×1.5(M), G1/2(M), G1/4(M), customer
Vibration	20g, 20~5000HZ
Shock	100g,11ms
Housing material	SUS304, Aluminum alloy
Operating life	1×108 Pressure Cycling

Our service:

1). Delivery in time,delivery time is 7 days for sample and 15 working days for bulk order;
2). Strong production capacity and strict quality control system;
3). Your inquiry and problems related to our products or prices will be replied in 24 hours;
4). Well-trained and experienced staffs to answer all your inquires;
5). After-sale tracking service for all of our clients;
6). OEM is available; small quantities, mixed bulk orders are also welcome;
7). Payment: L/C, D/A, D/P, T/T, Paypal , Western Union, MoneyGram;
8). Delivery way: UPS, DHL, TNT, FEDEX, EMS, CHINA POST.

Guarantee:

1).12 months warranty for most of our products;
2). We will arrange delivery of the goods on time;
3). Within the warranty period, we will bear all the quality problem of our products;
4). Beyond the warranty period, we will despatch the replacement parts to help fix the products, but the parts will be charged;
5). Without any problem, we will gain the feedbacks of our products to help improve better products.
