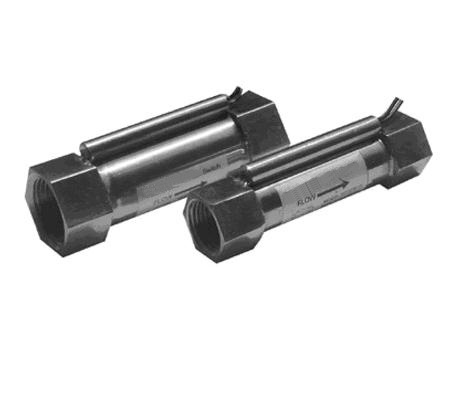

Stainless Steel Piston Type Flow Switch

Name: Stainless Steel Piston Type Flow Switch
Brand: all-electronics-online.com
SKU: 670462751
Availability: InStock
Rating: 4.5 (140 reviews)

Price:	US $ 1-11/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	FS-M-PSS02 Series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Principle:	Eddy Current
Media Temperature:	-30ºC~125ºC
Storage Temperature:	-30ºC~85ºC
Average Pressure Loss:	0.01bar (Max. Flow)
Magnetic Switch Parameters:	0.01bar (Max. Flow)

Product Description

We are first class retailer, wholesaler, and exporter for Piston Type Flow Switch FS-M-PS001 in China since 2009. Quick response, fast delivery.
Introduction:
Piston type flow switch FS-M-PSS02 Series is developed for the field of non-air-conditioned. In the flow switch, there is a high-performance permanent magnet mounted, which through the circulation effects, and drive the magnetic switch which is sealed in the upper part of the flow switch.
Structural Characteristics:
As FS-M-PS001 piston type flow switch has an only one internal moving part, and the working principle is simple, intuitive, and reliable, its working state is steady. Component wear-free and performance stable.
Application:
Piston type flow switch can widely used in petrochemical industry, environmental protection, water treatment, welding equipment and laser systems, the occasions which are required traffic monitoring.
Media:
Water, air, oil
Characteristics:
1. Minimal pressure loss
2. Good repeatability, pollutant-resistance
3. Isolate mechanical parts and electronic parts completely, suitable for the small flow economic type.
4. Setting accuracy is more accurate, with a switch to set the scale, the user need not be set in the field
5, LED display switch, dual switch output to choose
Technical Parameters:

Media temperature	-30ºC~125ºC
Storage temperature	-30ºC~85ºC
Average pressure loss	0.01bar (max. flow)
Output	SPST magnetic switch normally open or normally closed output
Magnetic switch parameters	0.5A(max)\110VAC/DC\50W(MAX)
Cable	Standard Configuration 0.5m, Gawain line 2*0.3mm2
Withstand voltage	30bar, (100bar can be customized)
Housing protection grade	IP65
Material	wetted shell: Stainless Steel Piston: plastic Spring: Stainless Steel
