| Prod Model: |
STX |
| Type: |
Power |
| Structure: |
Protection |
| Certification: |
Type Tested |
| Brand: |
Shanghai Electric |
Product Description
Material:enclosure and door manufactured from AISI 304L sheet steel (AISI 316L on request).Flat mounting plate manufactured from
galvanised sheet steel. Hinges in stainless steel.Thickess of sheet steel: enclosure& door: sheet steel 1.2mm till size STX6 820 ,then
1.5mm.Thickness of mounting plate:zinc coated steel 1.5mm till size STX6 820 then 2.0mm

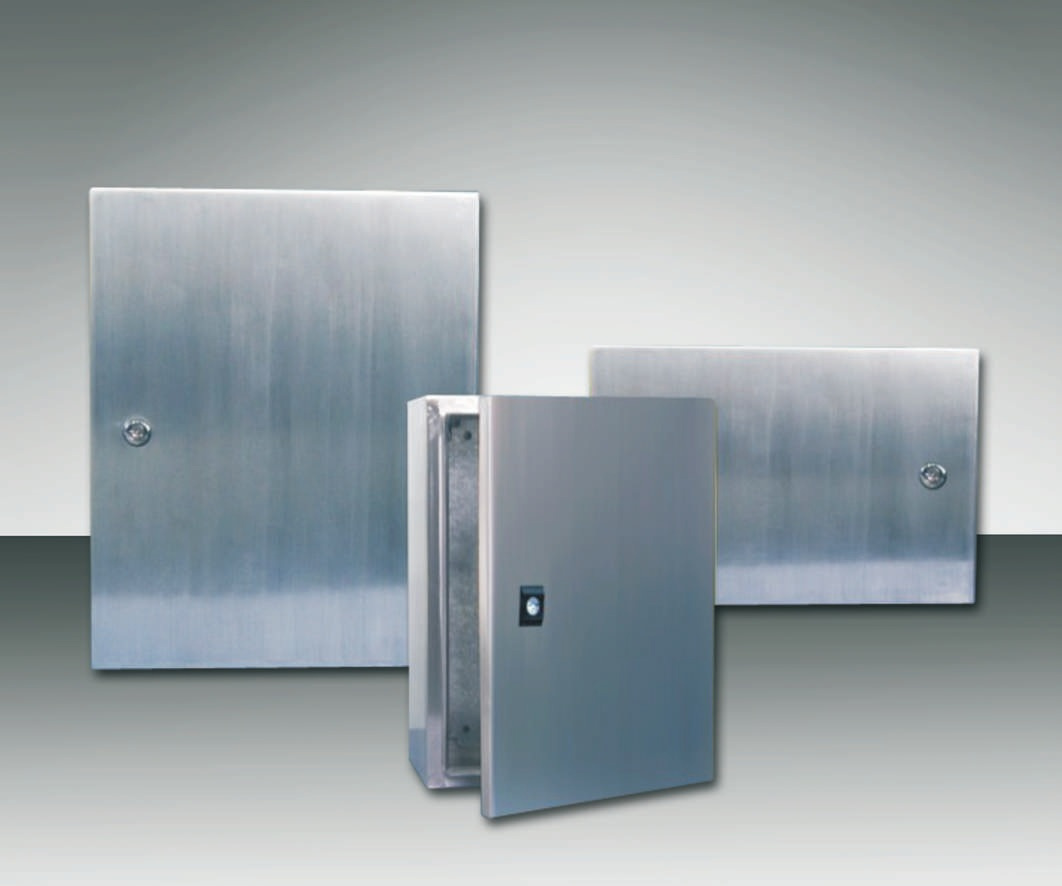

Stainless steel box with single door-STX
enclosure body,door with lock & galvanised mounted plate,seal gasket and fixing accessories
Wall mount brackets 4pcs/set to be offered separately.
Protection degree:IP 66 Impact resistance IK10
| Model W × H × D(mm) | | Model W × H × D(mm) | | Model W × H × D(mm) |
| STX2 215 200X200X150 | | STX4 520 400×500×200 | | STX6 825 600×800×250 |
| STX2 2515 200×250×150 | | STX4 620 400×600×200 | | STX6 1025 600×1000×250 |
| STX25 2515 250×250×150 | | STX5 520 500×500×200 | | STX8 1225 800×1200×250 |
| STX2 315 200×300×150 | | STX5 725 500×700×250 | | STX6 830 600×800×300 |
| STX25 315 250×300×150 | | STX6 420 600×400×200 | | STX6 1230 600×1200×300 |
| STX3 315 300×300×150 | | STX6 620 600×600×200 | | STX8 830 800×800×300 |
| STX3 415 300×400×150 | | STX6 625 600×600×250 | | STX8 1030 800×1000×300 |
| STX3 420 300×400×200 | | STX6 630 600×600×300 | | STX8 1230 800×1200×300 |
| STX3 515 300×500×150 | | STX6 820 600×800×200 | | STX6 840 600×800×400 |
| STX4 315 400×300×150 | | STX6 1020 600×1000×200 | | STX8 1440 800×1400×400 |
| STX4 420 400×400×200 | | STX8 1020 800×1000×200 | | |

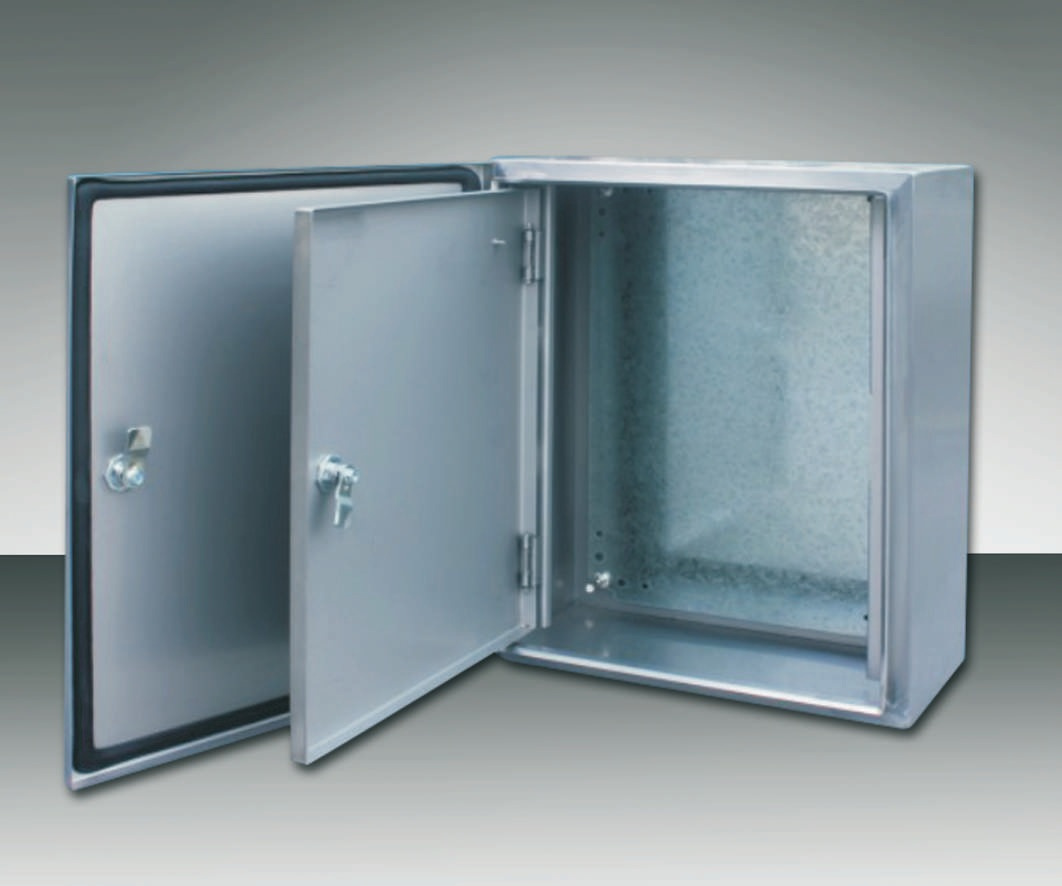

Stainless steel box with inner door - STXI
Supply include:
enclosure body,door with lock & galvanised mounted plate,seal gasket and fixing accessories,
Inner door with lock.Wall mount brackets 4pcs/set to be offered separately.
Protection degree:IP 66 Impact resistance IK10
| Model W × H × D(mm) | | Model W × H × D(mm) | | Model W × H × D(mm) |
| STXI3 415 300×400×150 | | STXI6 420 600×400×200 | | STXI8 1225 800×1200×250 |
| STXI3 420 300×400×200 | | STXI6 620 600×600×200 | | STXI6 830 600×800×300 |
| STXI3 515 300×500×150 | | STXI6 625 600×600×250 | | STXI6 1230 600×1200×300 |
| STXI4 315 400×300×150 | | STXI6 630 600×600×300 | | STXI8 830 800×800×300 |
| STXI4 420 400×400×200 | | STXI6 820 600×800×200 | | STXI8 1030 800×1000×300 |
| STXI4 520 400×500×200 | | STXI6 1020 600×1000×200 | | STXI8 1230 800×1200×300 |
| STXI4 620 400×600×200 | | STXI8 1020 800×1000×200 | | STXI6 840 600×800×400 |
| STXI5 520 500×500×200 | | STXI6 825 600×800×250 | | STXI8 1440 800×1400×400 |
| STXI5 725 500×700×250 | | STXI6 1025 600×1000×250 | | |

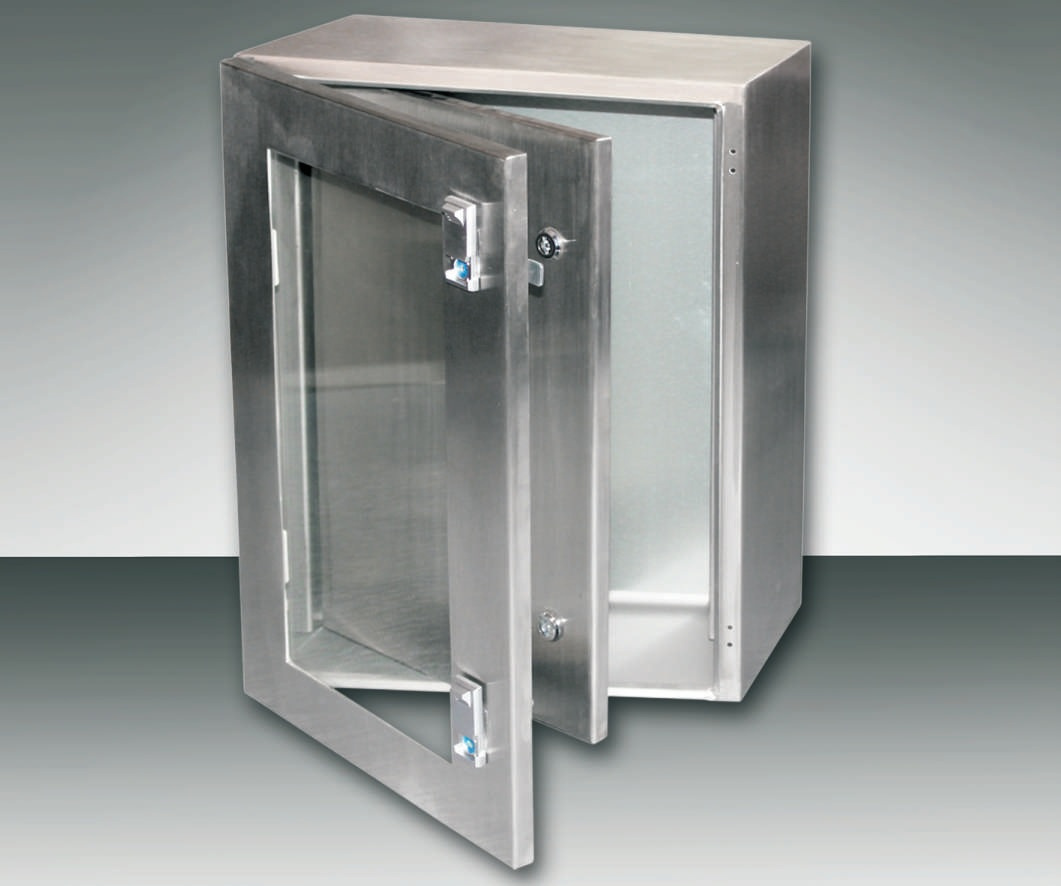

Stainless steel box with toughened glass door - STXP
Supply include:
enclosure body,toughened glass door thickness 5.0mm with lock & galvanised mounted plate,
seal gasket and fixing accessories Wall mount brackets 4pcs/set to be offered separately.
Protection degree:IP 66 Impact resistance IK10
| Model W × H × D(mm) | | Model W × H × D(mm) | | Model W × H × D(mm) |
| STXP3 415 300×400×150 | | STXP6 420 600×400×200 | | STXP8 1225 800×1200×250 |
| STXP3 420 300×400×200 | | STXP6 620 600×600×200 | | STXP6 830 600×800×300 |
| STXP3 515 300×500×150 | | STXP6 625 600×600×250 | | STXP6 1230 600×1200×300 |
| STXP4 315 400×300×150 | | STXP6 630 600×600×300 | | STXP8 830 800×800×300 |
| STXP4 420 400×400×200 | | STXP6 820 600×800×200 | | STXP8 1030 800×1000×300 |
| STXP4 520 400×500×200 | | STXP6 1020 600×1000×200 | | STXP8 1230 800×1200×300 |
| STXP4 620 400×600×200 | | STXP8 1020 800×1000×200 | | STXP6 840 600×800×400 |
| STXP5 520 500×500×200 | | STXP6 825 600×800×250 | | STXP8 1440 800×1400×400 |
| STXP5 725 500×700×250 | | STXP6 1025 600×1000×250 | | |
Stainless steel box with inner door +toughened glass door- STXIP
Supply include:
enclosure body,toughened glass door thickness 5.0mm door with lock & galvanised mounted
plate,seal gasket and fixing accessories,Inner door with lock.Wall mount brackets 4pcs/set to
be offered separately.
Protection degree:IP 66 Impact resistance IK10
| Model W × H × D(mm) | | Model W × H × D(mm) | | Model W × H × D(mm) |
| STXIP3 415 300×400×150 | | STXIP6 420 600×400×200 | | STXIP8 1225 800×1200×250 |
| STXIP3 420 300×400×200 | | STXIP6 620 600×600×200 | | STXIP6 830 600×800×300 |
| STXIP3 515 300×500×150 | | STXIP6 625 600×600×250 | | STXIP6 1230 600×1200×300 |
| STXIP4 315 400×300×150 | | STXIP6 630 600×600×300 | | STXIP8 830 800×800×300 |
| STXIP4 420 400×400×200 | | STXIP6 820 600×800×200 | | STXIP8 1030 800×1000×300 |
| STXIP4 520 400×500×200 | | STXIP6 1020 600×1000×200 | | STXIP8 1230 800×1200×300 |
| STXIP4 620 400×600×200 | | STXIP8 1020 800×1000×200 | | STXIP6 840 600×800×400 |
| STXIP5 520 500×500×200 | | STXIP6 825 600×800×250 | | STXIP8 1440 800×1400×400 |
| STXIP5 725 500×700×250 | | STXIP6 1025 600×1000×250 | | |
more size to be request to the clients
