Standard 450V 47UF Electrolytic Capacitor for Charger

Name: Standard 450V 47UF Electrolytic Capacitor for Charger
Brand: all-electronics-online.com
SKU: 825883285
Availability: InStock
Rating: 4.8 (44 reviews)

Price:	US $ 0.625/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	47uf 450v 16*26
Operating Temperature Range:	-40ºC~+105ºC
Capacitance Tolerance:	±20%(120Hz, 20ºC)
Tanδ:	0.2
Ripple Current:	251marms
Life:	2000h~3000 Hours
Certificate:	RoHS, SGS, CTI
Type:	Aluminum Electrolytic Capacitor
Application:	Charger, Adapter
Package Type:	Bag

Product Description

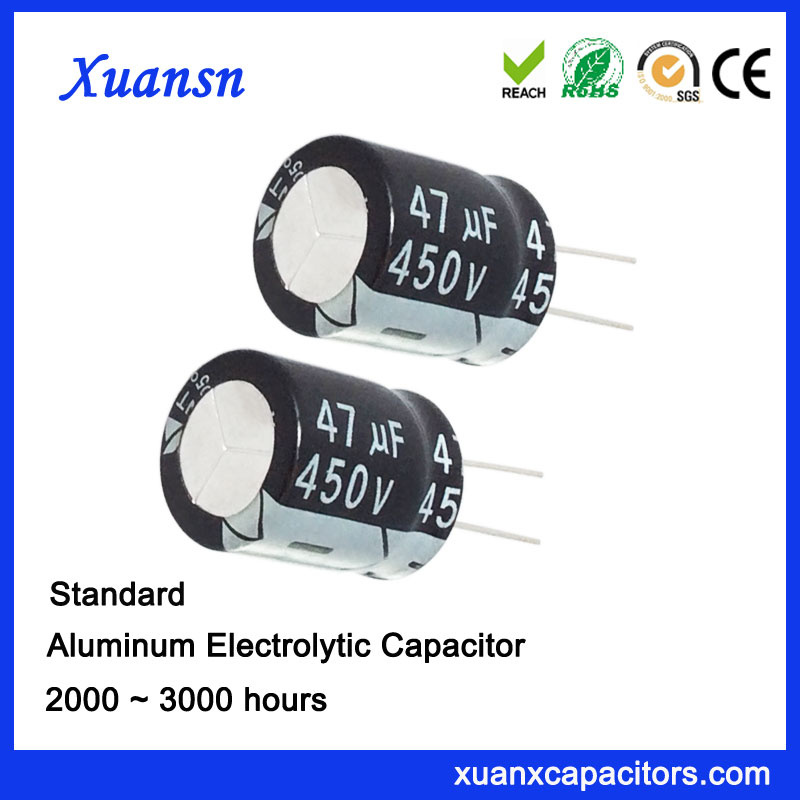

105°c General Radial 47uf 450v Aluminum Electrolytic Capacitor

47uf 450v aluminum electrolytic capacitor
Load life of 2000 to 3000 hours at +105°c
Size:16*26 and 18*26
Rated Ripple Current:251mArms
Offer OEM/ODM services
Provide Free Sample

General 47uf 450v Aluminum electrolytic capacitor is suitable for charger, adapter, air conditioning and rear projection TV. We also provide OEM and ODM services for the special requirements of the buyers.

Specification:

Frequency Coefficient:

Freq.(HZ)	50	120	300	1k	10k
0.1 to 47 uf	0.75	1.00	1.35	1.55	2
68 to 680 uf	0.80	1.00	1.25	1.34	1.5
1000 to 115000 uf	0.85	1.00	1.10	1.13	1.15

Temperature Coefficient:

Temperature(°c)	+45	+65	+85
Factor	1.6	1.35	1.00

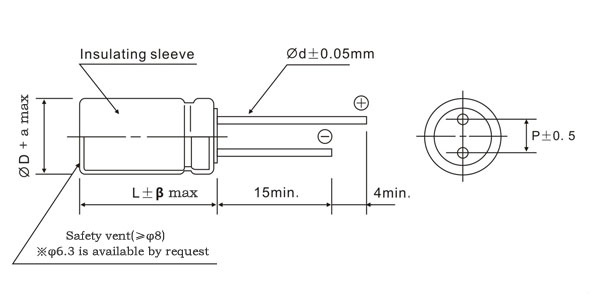

Dimensions:

ΦD	5	6.3	8	10	13	16	18
P	2.0	2.5	3.5	5.0	5.0	7.5	7.5
Φd	0.5	0.5	0.5	0.6	0.6	0.8	0.8
β	1.0			2.0
α	0.5

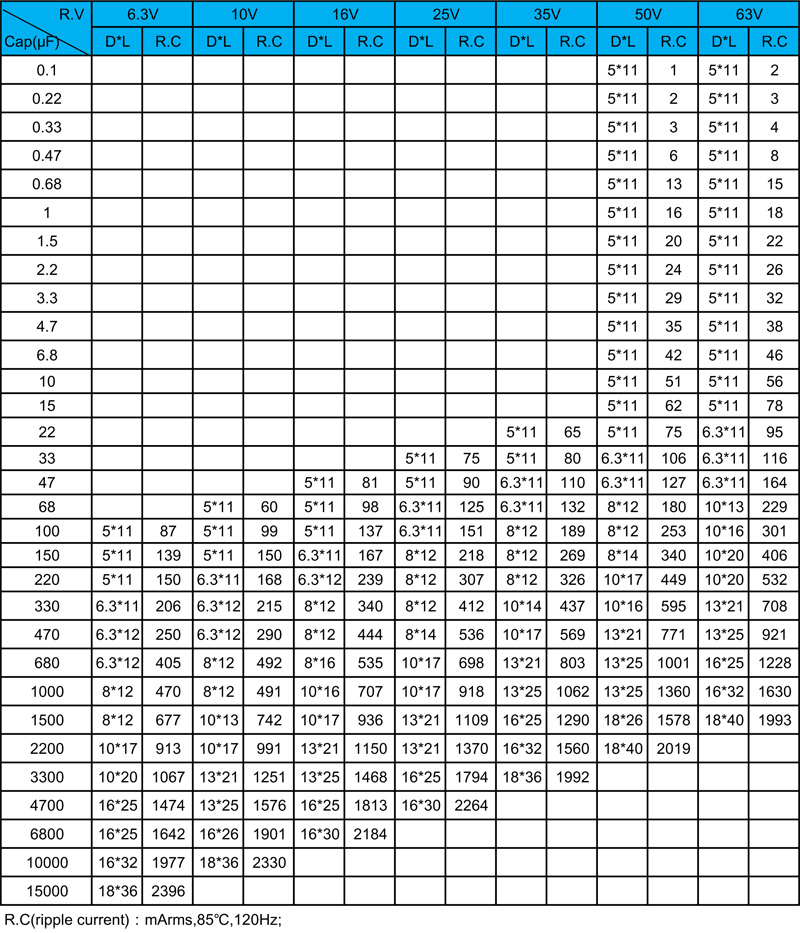

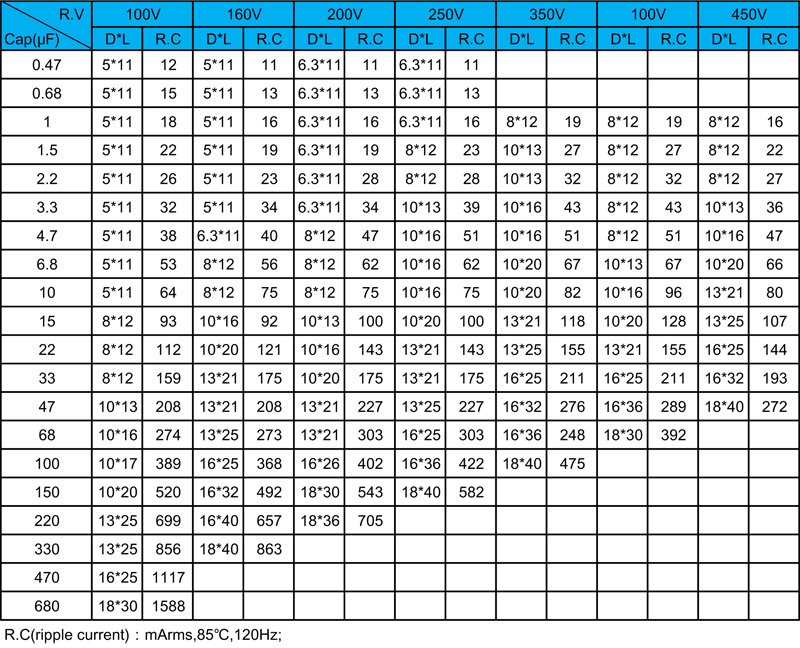

Standard Size(at 120Hz, 85°c):

Certifications:

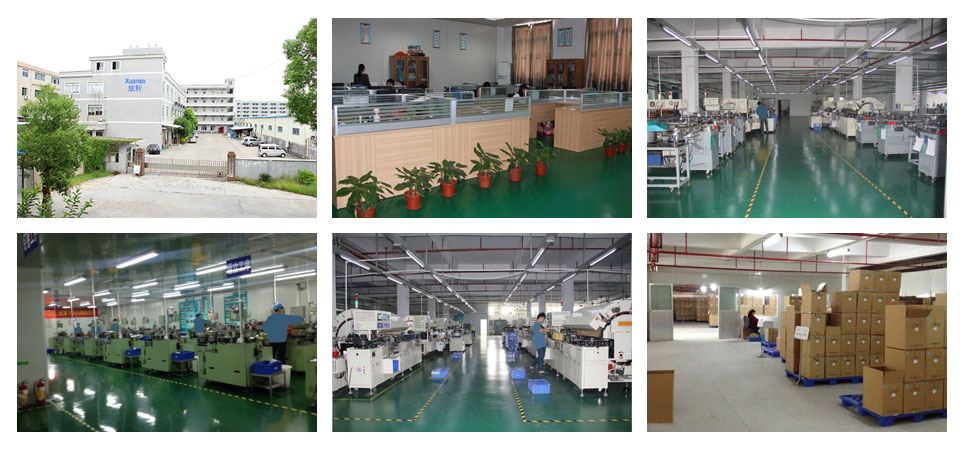

Factory Show:

Our advantage:

We have a sound raw material cooperation system and cargo inspection mechanism.
Products with high stability, high temperature, small size, small tolerance and so on.
Product tolerances are strictly controlled between -15% to -10%.
We have the world's most advanced production equipment, and improve the management process.
We can provide custom design of your needs and provide free sample for you.
Our products comply with the RoHS Directive and the factory conforms to the ISO 9001 management system.

If you have any interesting and problems, please feel free to contact us!

Pho: +86-18825879082

Dongguan Xuansn Electronic Tech Co., Ltd, started in 2001 and located in Changan Dongguan, is a professional manufacturer of capacitor. After almost 16 years management development and technical improvment. Now, Xuansn Electronic Tech Co., Ltd has become a leading supplier in capacitor industry.

Dongguan Xuansn Electronic Co., Limited is specialized in the manufacturing and supply of various capacitro. Xuansn main products include various types of Radial lead aluminum electrolytic capacitor, chip type SMD aluminum electrolytic capacitor and conductive polymer aluminum solid electrolytic capacitor. At the same time, we provide OEM and ODM services for the special requirements of the buyer,

Our Products are widely used in power supply(LED power supply, switching power supply, PC power supply), computer and comtuer's peripheral, communication equipment, automotive industry, industrial electronics, military equipment, medical equipment, household appliances and other fields.

After 16 years domestic and abroad market investigation, at present our products are sold to many countries and regions including the North America, Europe, Australia, the Middle East and Asia.

Dongguan Xuansn electronic Tech Co., Ltd owned the advanced production equipments, complete quality inspection system. And We have been constantly strengthening our management and consummate the quality guarantee system. And now we acquired ISO9001quality certification, RoHS environmental certification and CTI certificates.
