Standard BMS Life 20s, Discharge Current 150A

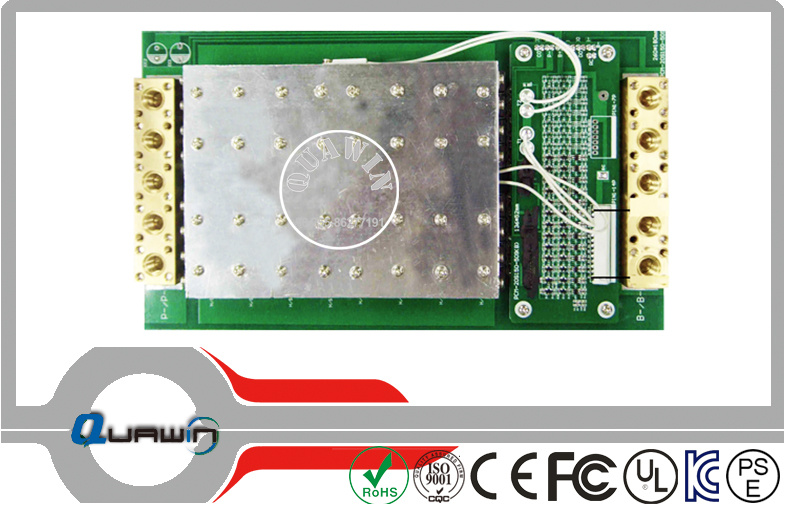

Name: Standard BMS Life 20s, Discharge Current 150A
Brand: all-electronics-online.com
SKU: 806025475
Availability: InStock
Rating: 4.6 (110 reviews)

Price:	US $ 162/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PCM-20S150-509
Voltage:	60V or 64V
Use:	LiFePO4 Battery
Delivery Date:	15days
Warranty:	One Year
Metal Coating:	Copper
Mode Of Production:	SMT
Customized:	Customized
Condition:	New

Product Description

standard BMS LiFE 20S, discharge current 150A

Specifications:

Model: PCM-20S150-509
No	Test item		Lifepo4	Li-ion/Li-polymer
1	Voltage	Charging voltage	CC/CV(3.65V/cell) DC:73V	CC/CV(4.2V/cell) DC: 84V
1	Voltage	Balance voltage for single cell	3.65V±0.025V	4.20V±0.025V
2	Current	Balance current for single cell	/	/
		Current consumption for single cell	≤20μA	≤20μA
		Max. continuous charging current	50A	50A
		Max. cont. discharging current	150A	150A
3	Over charge protection (single cell)	Over charge detection voltage	3.8V±0.05V (optional)	4.4±0.05V (optional)
		Over charge detection delay time	0.96~1.4S	0.96~1.4S
		Over charge release voltage	3.8±0.05V	4.4±0.05V
4	Over discharge protection (single cell)	Over discharge detection voltage	2.0±0.05V (optional)	3.0±0.05V (optional)
		Over discharge detection delay time	115~173mS	115~173mS
		Over discharge release voltage	2.3±0.05V	3.0±0.1V
5	Over current protection	Over current detection voltage	0.06~0.6V	0.06~0.6V
		Over current detection current	500±50A (adjustable)	500±50A (adjustable)
		Detection delay time	5-60ms	5-60ms
		Release condition	Cut load,	Cut load,
6	Short protection	Detection condition	Exterior short circuit
		Detection delay time	200~500us
		Release condition	charge up
7	Resistance	Protection circuitry	≤20mΩ
8	Temperature	Operating Temperature Range	-40~+85ºC
8	Temperature	Storage Temperature Range	-40~+125ºC
9	Dimension	L260W180T35mm

We have over six hundreds of PCM/BMS series products for your choice,most of them widely used for Li-ion battery pack, Li-Polymer battery pack, LiFePO4 battery pack and so on.
Main components for our PCB/BMS normally adopt imported raw material for relaible quality control and zero RMA.

PCM for 1-5S Li-ion/Li-Polymer/LiFePO4 battery pack
PCM for 6-35S Li-ion/Li-Polymer/LiFePO4 battery pack(With balancing function can be added)
PCM for high rate/high power Battery Pack
PCM for E-bike/E-scooter/E-motorcle/E-tool etc battery pack
Battery fuel guage/Battery charging management system
All kinds of customized PCM/BMS OEM/ODM welcome
