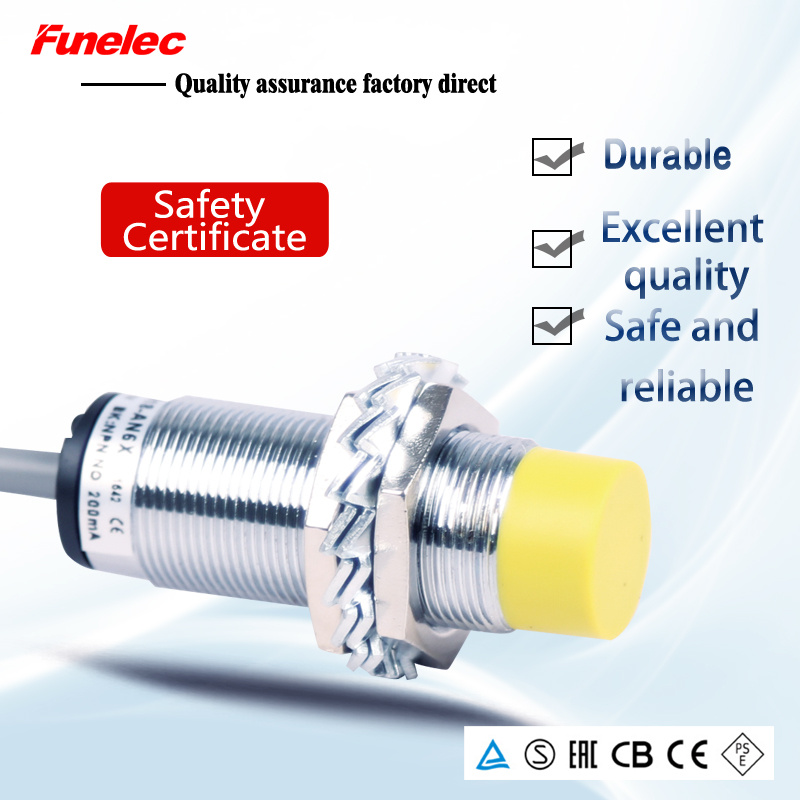

Standard Function Series PNP No Non-Flush M18 Wholesale Inductive Sensor
| Price: |
US $ 1-1.2/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
FNM18-DG-PNO |
| Sensing Distance: |
8mm |
| Output Type: |
PNP No |
| Theory: |
Inductance Sensor |
| Supply Voltage: |
10-30VDC |
| Type: |
Inductive Proximity Sensor |
Product Description
For output type:
NPN, PNP, Normally Open, Normally Closed Selection, Select the option according to the need to use, and explain the output type as follows:
Normally open and normally closed, the main difference is based on the status of the contacts in the sensor when there is no induction.
Normally open type: The contact is open when the proximity switch sensor is not activated (when no object is sensed) and closed when the proximity switch sensor senses the object. Normally open is the signal output is in the open state in the normal state. When the object is sensed, the contact is closed and the signal is output.
Normally closed: The contact is closed when the proximity switch sensor is not active and is open when the proximity switch sensor senses an object. Normally closed is the signal output in the normal state is closed, the signal continues to output, when the object is touched when the contact is open, the output closes the signal.
NPN: After the installation, when there is no induction, the output is high (for example, input 24V, output 24V or so). When there is an object sensing, the output is low and the output signal is triggered to achieve the detection purpose.
PNP: After installation, when there is no induction, the output is low (for example, input 24V, output 0V or so). When there is an object sensing, it outputs a high potential and triggers the output signal to achieve the detection purpose.Packaging & DeliveryPackaging Details
Standard packing in cartonDelivery Time1-2working days for stock items Standard function series PNP NO Non-flush M18 wholesale inductive sensor| Standard function type inductive sensors LR18X series | | | Features Non contact detection, safe and reliable; ASIC design; Perfect choice for metallic targets detection; | Part number | NPN NO LR18XBF05DNO LR18XBN08DNO | PNP NO LR18XBF05DPO LR18XBN08DPO | NPN NC LR18XBF05DNC LR18XBN08DNC | PNP NC LR18XBF05DPC LR18XBN08DPC | NPN NO+NC LR18XBF05DNR LR18XBN08DNR | PNP NO+NC LR18XBF05DPR LR18XBN08DPR | Technical specifications | Mounting Flush Non-flush | Leakage current [lr] ≤15mA | Rated distance [Sn] 5mm 8mm | Circuit protection Short-circuit, overload andreverse polarity | Assured distance [Sa] 0…4mm 0…4mm | Output indicator Yellow LED | Dimensions M18*51.5mm M18*59.5mm | Ambient temperature -25ºC…70ºC | Output NO/NC (depends on part number) | Ambient humidity 35-95%RH | Supply voltage 10…30 VDC | Switching frequency [F] 1000 Hz 800 Hz | Standard target Fe 18*18*1t Fe 24*24*1t | Voltage withstand 1000V/AC 50/60Hz 60s | Switch-point drifts [%/Sr] ≤±10% | Insulation resistance ≥50MΩ(500VDC) | Hysteresis range [%/Sr] 1…20% | Vibration resistance 10…50Hz (1.5mm) | Repeat accuracy [R] ≤3% | Degree of protection IP67 | Load current ≤200mA | Housing material Nickel-copper alloy | Residual voltage ≤2.5V | Connection type 2m PVC cable |
| | |
| | | |
| | | |
| | |
| | |
| | |
| | |
| | |
| | |
| | |
| | |
| | |
| | |
| | |
| | |
