| Prod Model: |
Queen Star Series 1-20Kva |
| Color: |
Black & White |
| Output Power Factor: |
0.8 |
| Display: |
Digital LCD Display |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Over Load/Current/Voltage, Short Circuit etc |
| Brand: |
Upsen or OEM |
Product Description

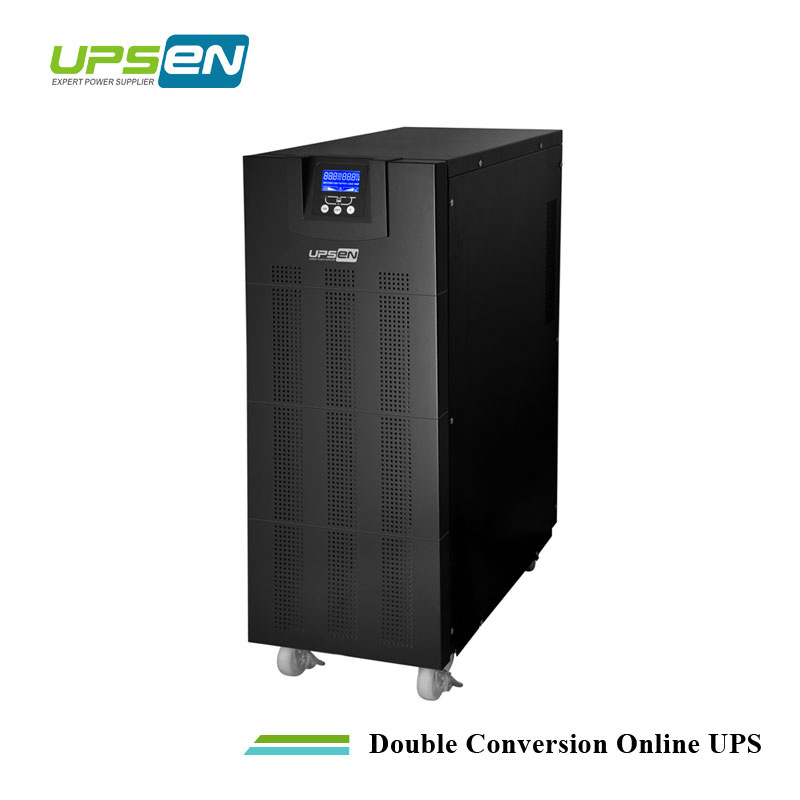

Standby Intelligent LCD display UPS No Break Power Supply for PC Computer 1: UPS Power with zero transfer time to switch dc power to ac power without break
2: UPS with Pure Sine Wave Output and 0.8 Power Factor
3: Digital LCD Screen for UPS Display
4: UPS with Input PF correction and AVR Function
5: Single Phase 220V/230/240Vac UPS with 50/60Hz
UPS ApplicationQueen Star Series UPS 1-20KVA is specially designed for servers, data-center critical network devices,
Sensitive electronic equipment, telecom, bank, hospital, bureau, traffic, public security, ATM and so on.
UPS Key Features1: Large Blue LCD digital display for UPS status and operation
2: Pure Sine Wave, Double Conversion Online
3: Wide input voltage range, Zero transfer time
4: Advanced MCU microprocessor control technology
5: Voltage regulator circuit
6: Comprehensive Electrical isolation and bypass protection
7: Input PF correction, reduce the harm of harmonic wave to the power grid, convenient to connect with mini generator.
8: Input N/L Inspection function and date line protection
9: DC start when power off, convenient and reliable; Restart automatically when Electricity is restored.
10: Humanization bypass output, can be adjustable.
11: Smart RS232 communication with monitoring software
12: Protection against over voltage, over load, over current, over charge and so on.
Technical Specification
| Queen Star Series Q6K-20Kva | | | |
| Model | Q6K | Q6KL | Q10K | Q10KL | 31Q10KL | 31Q15KL | 31Q20KL |
| Capacity | 6KVA/4800W | 10KVA/8000W | 15KVA/12KW | 20KVA/16KW |
| Input | Nominal Voltage | 220/230/240Vac | 380/400/415Vac |
| Voltage Range | 176~276Vac (1P2W+G) | 304~478Vac (3P4W+G) |
| Current | 31A (max) | 50A (max) | 50A (max) | 75A (max) | 100A (max) |
| Frequency | 46~54Hz/56~64Hz |
| Power Factor | ≥0.99 |
| Output | Voltage | 220/230/240± 2%Vac (1P2W+G) |
| Frequency | 50/60Hz(adjustable) 50/60Hz± 5% (Line mode)
50/60Hz ± 0.05Hz ( Battery mode) |
|
|
| Current | 27.3A | 45A | 68A | 91A |
| Power Factor | 0.8lag |
| Waveform | Pure Sine Wave |
| Waveform Distortion | Line load <2% | Line load <3% |
| Back-up Time | Full Load | ≥7′ | Depends on external batteries bank's Capacity | ≥5′ | Depends on external batteries bank's Capacity |
| Half Load | ≥20′ | ≥13′ |
| Battery Nominal Voltage | 192/240Vdc |
| Transfer Time | 0ms |
| Overload Capacity | >105% 1min, >120% 30s transfer to bypass, shut down in 1min |
| Communication | SNMP,RS-232,USB+Intelligent Slot |
| Operating Environment | Temperature | 0C~40ºC |
| Humidity | 15%~90% |
| Dimension | Width (mm) | 260 | 260 | 260 | 260 | 260 |
| Depth (mm) | 560 | 533 | 560 | 533 | 560 |
| Height (mm) | 717 | 501 | 717 | 501 | 717 |
| Net Weight(Kg) | 68 | 18 | 70 | 20 | 28 | 30 | 30 |
| *Specification are subject to change without prior notice |
