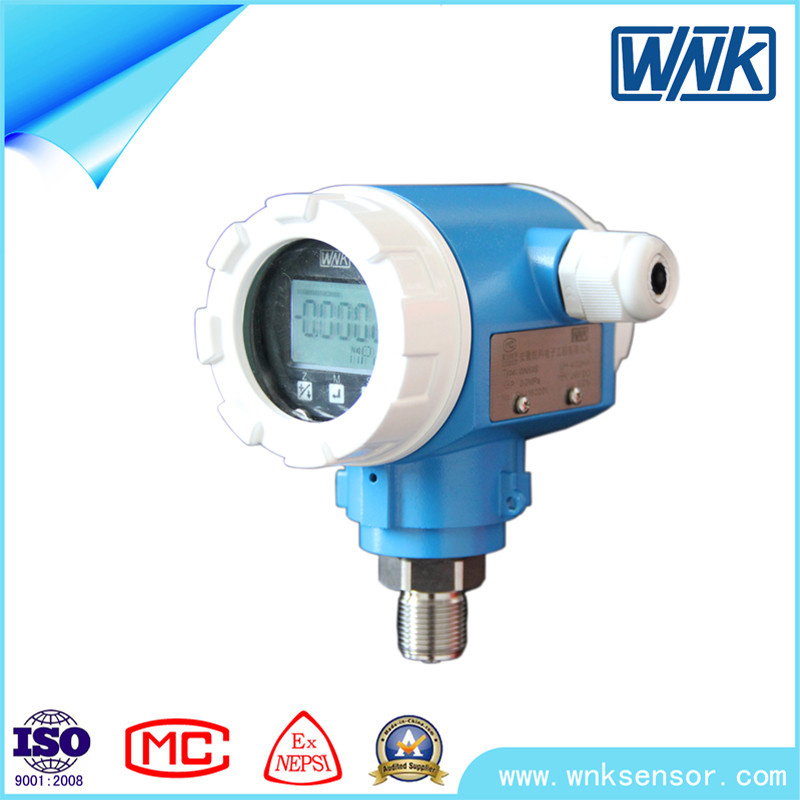

State-of-The-Art Technology Smart Pressure Transmitter, Modbus/4~20mA Output

Name: State-of-The-Art Technology Smart Pressure Transmitter, Modbus/4~20mA Output
Brand: all-electronics-online.com
SKU: 802296085
Availability: InStock
Rating: 5 (21 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	WNK4S
Output Signal:	4~20m, 4~20mA/Hart, Modbus
Housing Material:	Aluminum Alloy
Stability:	±0.3%Url
Reference Accuracy:	±0.2%Url
Pressure Range:	-100kpa~70MPa

Product Description

WNK4S High Cost-effective Two Wire 4~20mA Smart Pressure Transducer

Features - Wall/Pipe Mounted Pressure Transmitter with LCD Display
1. High accuracy, digital precision up to :0.2%;
2. Long-term drift<0.1/year;
3. State-of-the-art molecular sieve technology, providing ensurance of high stability;
4. Large screen with backlight display;
5. Equiping good quality feedthrough capacitor, with strong anti-interference ability;
6. Modbus communication protocol.

Specification :

Measuring media	liquid, gas and steam
Measuring range	-270~800 ºC (PT100 thermal resistor)
	0~1300ºC, (Thermocouple K)
Input	Thermocouple, RTD, MV, Resistive sensor
Power supply range	9~45V (9~24V, Ex)
Output signal	4~20mA, Modbus
Digital Accuracy	±0.01ºC, PT100 input
Internal cold end compensation error	<0.25ºC±0.1%/10ºC
Temperature drift	±0.05%/10ºCfull scale range
	0.1% between-10°C to 60°C
Effect of power supply on range	<0.005%/V full-scale range
Long term drift	<0.1/year
Ambient temperature	Ambient temperature		Storage temperature
	T4	Safe operation(T6)
	-40...85ºC	-40...60ºC	-40...95ºC
Protection Class	IP66/67
Relative humidity	≤98%, condensation allowed
Electromagnetic compatibility	Accordance with EN 61 326

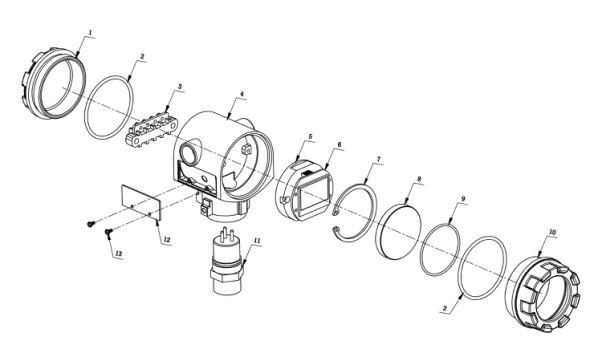

Dimensions:

Payment Terms

1. Port of Loading: Shanghai China
2. Samples Lead Time: 3-7 working days
3. Delivery Time: 7-15 working days after payment
4.Payment: T/T, Western Union, Paypal

After-sales service

We promise to deliver the following after-sales service:
1. Warranty: The warranty period is 12 months starting from the shipping date;
2. Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality;
3. For on-site services not caused by manufacturing quality, we shall charge a certain service fee at our discretion based on actual charges such as travel expense;
4. We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.

Founded in 2004, ANHUI WNK ELECTRONIC ENGINEERING Co., Ltd is a hi-tech company specializing in different kinds of technologically-advanced and good quality sensor, transmitter and automation instrument. We devote to developing, manufacturing and selling of automation control system, providing our customers comprehensive fieldbus technical solutions and factory informatization construction.

Our main products include iEOS industrial cloud data base developing plate form; Industrial Internet of Things; WNK-WMS industrial wireless measurement system; Onsite measurement instruments like temperature, pressure, flow, level sensor and transmitter etc, widely applied in Petrochemical, Chemical, Power, Steel and Cement.

WNK is the third company in China developed PROFIBUS transmitters. WNK series PROFIBUS transmitter is the fourth in China certificated by international PROFIBUS organization, and Chinese first that completely having proprietary intellectual property rights. WNK PROFIBUS-PA temperature transmitters filled Chinese blank technology in the field.

With strict, scientific management system, WNK has been certificated to conform to standard GB/T 19001-2008 / ISO 9001: 2008 by China CLASSIFICATION SOCIETY CERTIFICATION COMPANY. WNK commits to developing of new products and technical innovation. With continuously effort in advanced technology of automation control system, WNK has been undertaking some innovation projects of MST (Ministry of Science and Technology), and has been honored as promising enterprise of "Giant of Technology "in Hefei Hi-tech Industry Development Zone.

As Chinese first and unique qualified production enterprise of 0.075% measurement in Anhui, WNK brand was awarded Anhui Famous Brand.
