| Prod Model: |
BZT-6KW |
| Certificate: |
Ce Certificate |
| Output Wave Form: |
Pure Sine Wave |
| Two Start Mode: |
Reduction Voltage Start and Variable Frequency St |
| RS232 Or 485: |
Optional |
| Frequency And Voltage: |
Can Adjustable |
| Display: |
LCD |
| Application: |
High Frequency Converter Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
Slip Frequency Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Voltage |
| Brand: |
Bangzhao or OEM |
Product Description
static state transduce low frequency voltage converter 6000W AC to AC converter
Technical Features:

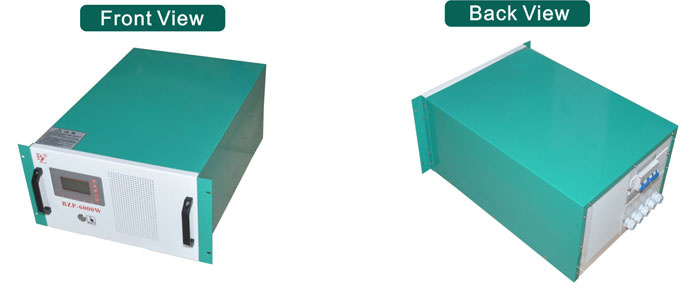

1, Standard rack mount cabinet, front and back side with ventilation holes for good cooling performance.
2, Small size(Width*Height*Depth):
435*605*267mm:(1-6KW single phase)6U
435*635*400mm:(5-12KW three phase)9U
3, Light weight, product net weight is about 40-120kg
4, 100% full power output
5, High efficiency > 94%
6, Two kinds of start mode:Variable frequency start(soft start) and step down voltage start

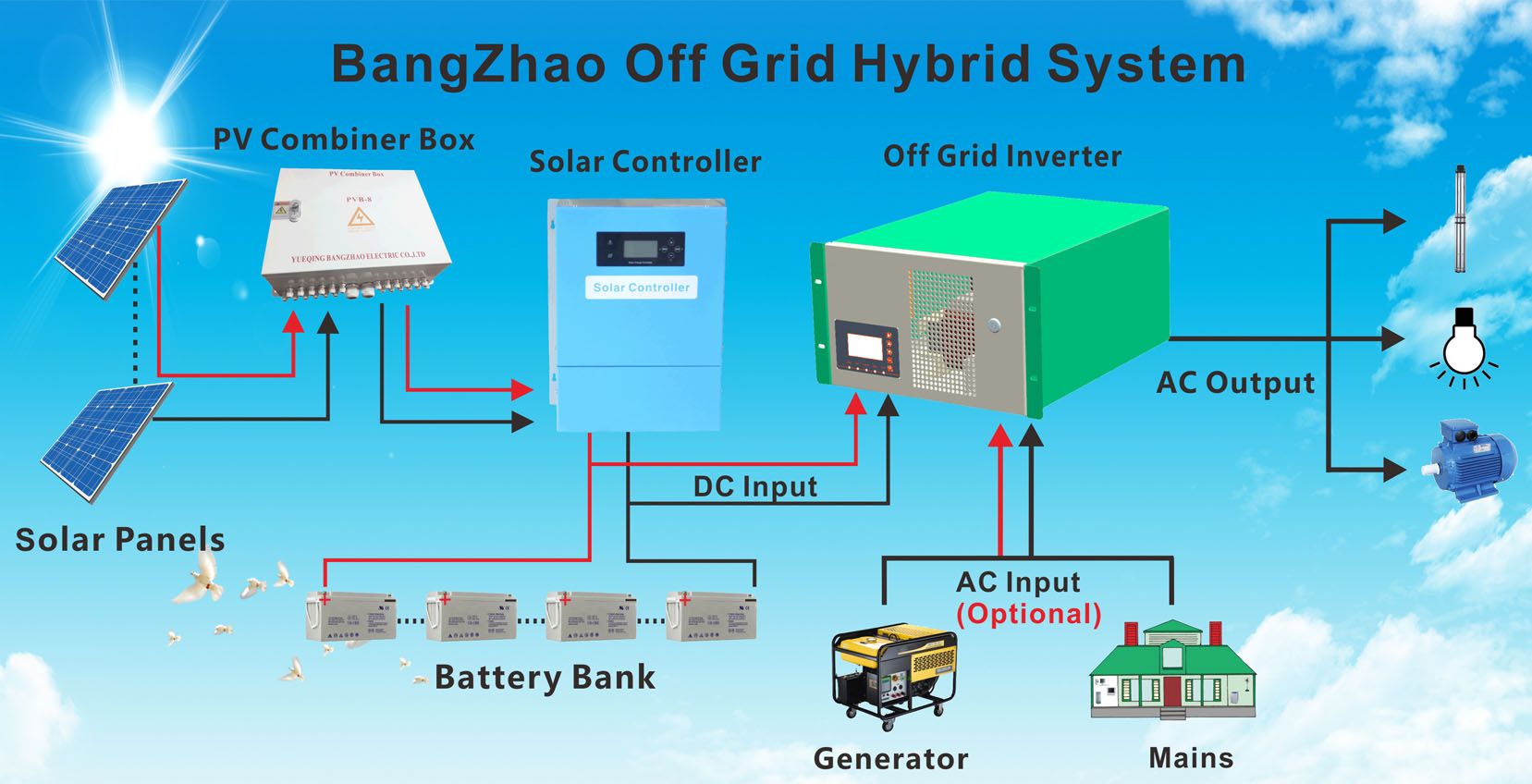

7, RS485 monitoring, AC bypass(grid or generator) input, built in solar charge controller(Optional)
8, Built in low frequency isolation transformer, which ensure the AC busbar and DC busbar are completely isolated, the harmonic and interference is very little, suitable for all types of load.
9, Suitable for off grid without battery system, the DC input voltage range can be choose from 48-100V or 100-300V or 200-500V or 400-800V or others customized voltage range.
10, Can continuously work for 7*24h, the design service life > 15 years.
11, Big LCD display, parameter setting flexible,input and output voltage,frequency can be set on LCD.
12, Using the sixth generation efficient IPM intelligent module from Japanese Mitsubishi, high efficiency and stable performance. It with powerful protection function, the protection for short circuit, over load, over temperature is more safe and reliable. It's service life can up to 15 years or more.
13, Power range: 1kw-12kw, can be customized to customer's requirements.
| Model | BZP-1KW | BZP-2KW | BZP-3KW | BZP-4KW |
| Isolation mode | Low Frequency Transformer |
| DC Input | Rated voltage (Vdc) | 48V | 96V |
| Rated current(A) | 20.8A | 20.8A | 31.2A | 41.6A |
| AC Output | Rated output power | 1KW | 2KW | 3KW | 4KW |
| Output waveform | Pure Sine Wave |
| Rated Voltage | 220V±3% |
| Phases | Single phase |
| Rated current(A) | 4.5A | 9A | 13.6A | 18.1A |
| Frequency | 50Hz or 60Hz |
| Rated output voltage range (V) | 110/120/220/230/240VAC optional |
| Power Factor(PF) | 0.99 |
| Overload Ability | 150%, 5 seconds |
| Efficiency | >93% |
| Waveform distortion rate (THD) | <3%(Linear load) |
| Dynamic Response (0 to 100% load) | 5%,≤50ms |
| Display | LCD |
| Running mode | Working continuously |
| Electrical insulation properties | 2000Vac, 1 Minute |
| Communication interface | RS485 (optional) |
| Protection Function | Protection | Input reverse polarity, under voltage, overvoltage, output over-current, short circuit, overheating etc. |
| Cooling method | Fan-cooled |
| Short-circuit protection | No automatic recovery, need to restart the machine |
| Working environment | Noise ( 1 meter) | ≤50dB |
| Degree of protection | IP20(indoor) |
| Working Altitude(m) | ≤2000 |
| Working temperature | -25~+55ºC |
| relative humidity | 0~90%,non-condensing |
| Mechanical dimension | Depth* Width * Height | 435x605x267mm |
Voltage and frequency converter,
1,50HZ to 60HZ or 60HZ to 50HZ
2,Single phase 220VAC to 3 Phase220VAC
(L+N=120VAC to L1+L2+L3=220VAC,L1,L2,L3+N=127VAC)
3,2 phase 240VAC to 3 phase 220VAC
(L1+L2=240VAC,L1,L2 +N=120VAC to L1+L2+L3=220VAC,L1,L2,L3+N=127VAC )
4,3 Phase 220VAC to 3 phase 380VAC
(L1+L2+L3=220VAC,L1,L2,L3+N=127VAC to L1+L2+L3=380VAC,L1,L2,L3+N=220VAC)
5,3 Phase 380VAC to 3 phase 240VAC
(L1+L2+L3=380VAC,L1,L2,L3+N=220VAC to L1+L2+L3=240VAC,L1,L2,L3+N=138VAC)
Also can choose with DC input
FAQ
Q 1. What's the payment term?
A. We accept TT,Western Union,Paypal,MoneyGram.
Q 2.How's the delivery time ?
A. Is due to order quantity, usually it will take about 3-7days for sample production,
Q 3.Tell me the standard of package?
A. For the small capacity, it use carton, but for big capacity, we should use honeycomb carton and pallet or wooden case for protection.
Q 4.Would you accept to use our logo ?
A.It's no problem to do OEM.
Q 5.We want to know month capacity.
A. It depends on which model.For example for relay type small capacity , month capacity can reach near 2000pcs and big capacity near 500pcs.
Q 6.Where is your market?
A. Our products are popular in Australia,South America,Philippines,Italy, America, Pakistan and so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.
Q 7. What kind of certificate you have ?
A. Our company already achieve ISO9001, and for products, we have CE, SAA, G83 G59 etc .
Q8. What is the warranty period ?
A. Normally 1 year .
Q 8.How about the lifetime?
A:The life time for inverterl is 15-20years.
