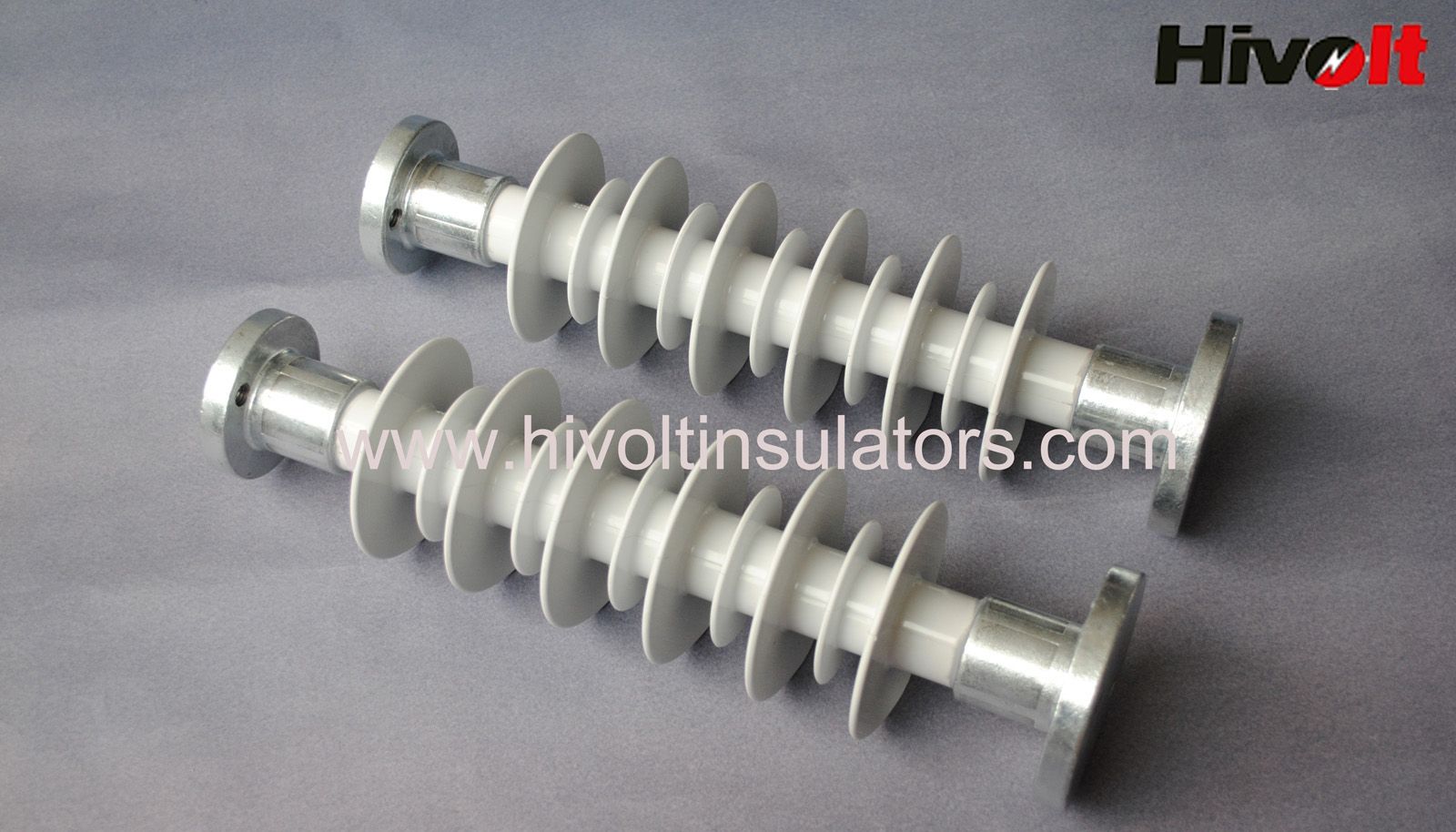

Station Post Composite Insulators for Transmission and Distribution Line

Name: Station Post Composite Insulators for Transmission and Distribution Line
Brand: all-electronics-online.com
SKU: 831079795
Availability: InStock
Rating: 4.5 (26 reviews)

Price:	US $ 3-50/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

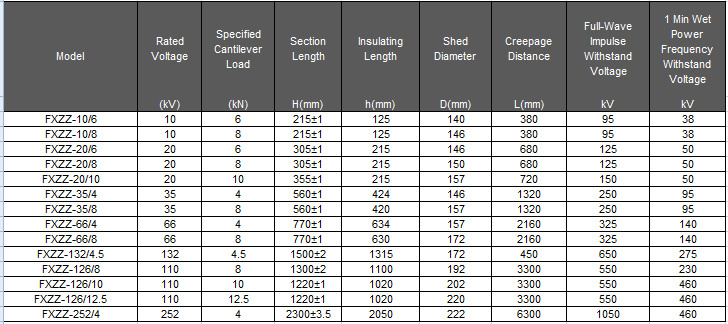

Prod Model:	FXZZ-10/6
Rated Voltage:	10-252kv
Specified Cantilever Load:	4-12.5kn
Impulse Withstand Voltage:	95-1050kv
Shed Diameter:	140-222mm
Application:	Low-voltage
Material:	Composite Polymer
Structure:	Post Insulator
Type:	B Type Insulator
Size Of Bearing Capacity:	6kn
Color:	Grey
Brand:	Hivolt

Product Description

We export huge quantity of such products to EU countries many years .

customers are very satisfied with the product quality , there are no complaints up to now .

because we control product quality very strictly .

for example :

we use high quality materials for production , that is very important :

1 the insulator metal fittings are made of high density forged steel,every pieces test qualified before using.

Flange surface are hot galvanized , zinc thickness meet related IEC and ASTM standard requirement

single point thickness are more than 85 μm. average thickness more than 90μm .

2 Insulator shed made of HTV silicone rubber , insulator produced by high pressure injection methond . insulator core are made of high strength fiber glass ECR rod.

4 silicone sealant we sue a layer of silicone sealant cover the connection aread between metal fittings and fiber glass core, just to protect insulator have a stable performance for longer life .

Applications:

This type of product mainly used for electrical switches or distribution lines up to 24kV .

Mainly for insulation support .

Competitive Advantage:

High quality raw material lead to high quality final product .

same quality level product , our price are most competitive .

OEM design available upon customer's requirement or special technical specifications.

Dalian Hivolt Power System Co., Ltd. ( the former Hivolt Insulators Co., Ltd. ) is a reputable insulator manufacturer. It was set up in year 1990 with product range of porcelain insulators, composite insulators, and relevant metal fittings for transmission & distribution lines.

We look the quality as our company Life, and keep improving products quality. We strictly control the whole manufacturing process according to ISO 9001: 2008 edition, and focus on each quality details from raw material to insulators performance test. The powerful test facilities can make sure that each product under control.

We can supply insulators according to IEC standards, ANSI standards, BS standards or customer specifications. Porcelain glaze can be brown, light gray, white or blue. Composite insulators' shed colour can be light grey or red. In the mean time, we also supply high quality tonghened glass insulators for domestic market and overseas market.

Dalian Hivolt Power System Co., Ltd. is a reputable supplier, we have successfully supplied many kind of insulators to more 30 countries and regions due to reliable quality & reasonable price. We promise if any insulator from our company has quality defect, we will replace them at free charge in 12 months after receipt. We hope to set up a long term cooperation with you and enjoy the course together.
