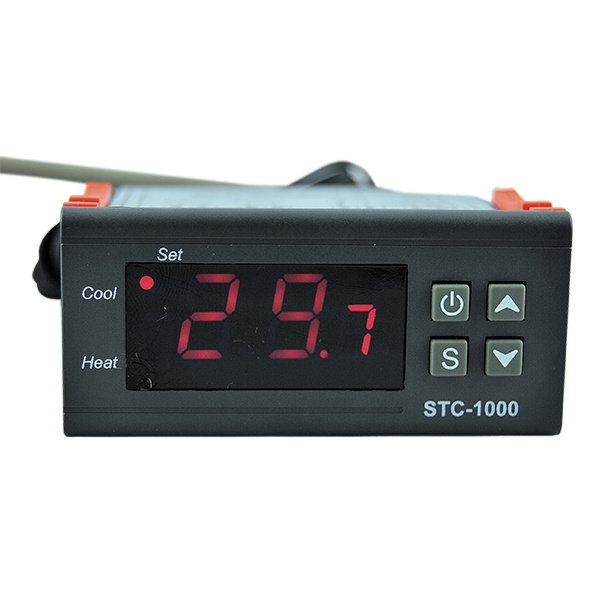

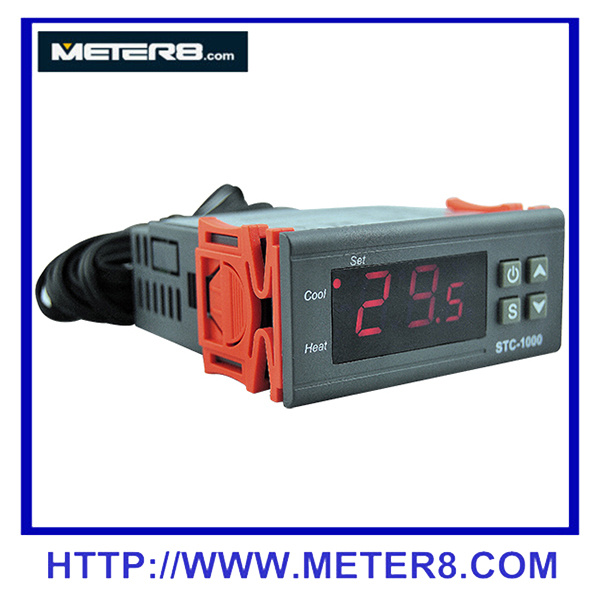

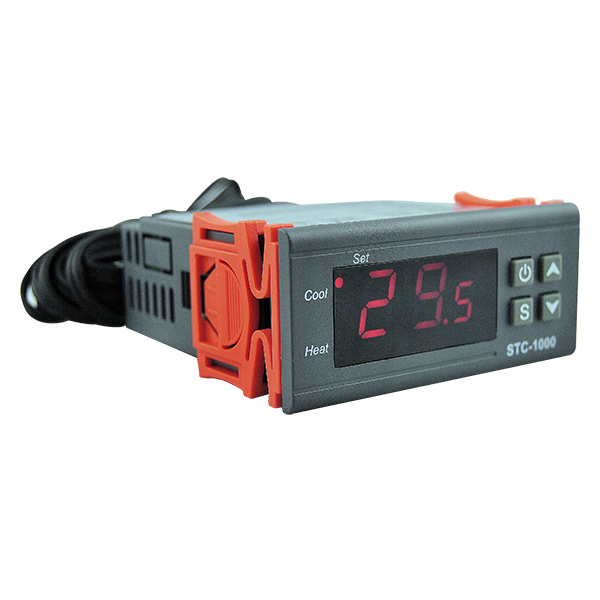

STC-1000 Digital All-purpose Thermostat Temperature Controller

Name: STC-1000 Digital All-purpose Thermostat Temperature Controller
Brand: all-electronics-online.com
SKU: 830731175
Availability: InStock
Rating: 5 (33 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	STC-1000

Product Description

STC-1000 Digital All-purpose Thermostat Temperature Controller
Detailed Product Description:
Measure range: -50~+99oC
Mounting size: 71*29mm
Auto switch between refrigerating and heating
Retrun difference value
All-purpose Temperature Controller STC-1000:

Features:
-Switch the modes between cool and heat;
-Control temperature by setting the temperature setting value and the difference value;
-Temperature calibration; Refrigerating control output delay protection;
-Alarm when temperature exceeds temperature limit or when sensor error.

Specification and Size:
1.Front panel size: 75(L)×34.5(W)mm
2.Mounting size: 71(L)×29(W)mm
3.Product size: 75(L)×34.5(W)×85(D)mm
4.sensor length: 2m (include the probe)
5.Probe Size: 6mm*5mm

Technical Parameters:
1. Temperature measuring range: -50~99ºC;
2. Resolution: 0.1ºC;
3. Accuracy: ±1ºC (-50~70ºC);
4. Sensor error delay: 1 minute
5. Power supply: 220VAC±10%, 50/60Hz;
6. Power consumption: ≤3W;
7. Sensor: NTC sensor (1PC);
8. Relay contact capacity: Cool 10A/250VAC;Heat 10A/250VAC;
9. Ambient temperature: 0~60oC;
10. Storage temperature: -30~75ºC;
11. Relative humidity: 20%~85% (No condensate).
