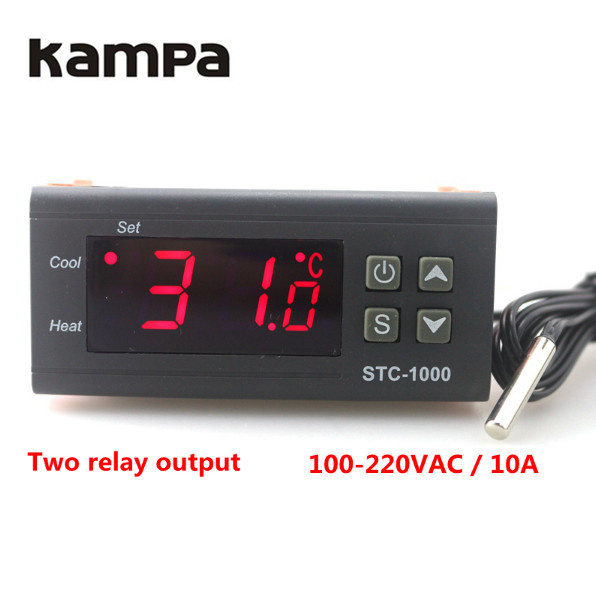

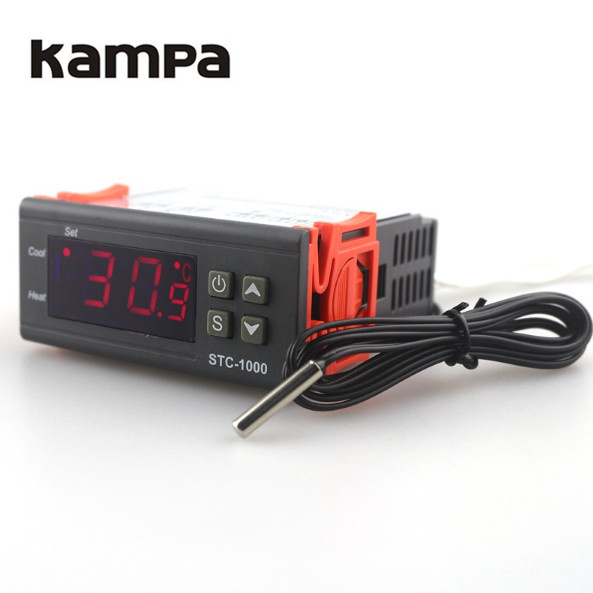

Stc-1000 Two Relay Output LCD Digital Temperature Controller with Sensor

Name: Stc-1000 Two Relay Output LCD Digital Temperature Controller with Sensor
Brand: all-electronics-online.com
SKU: 818594065
Availability: InStock
Rating: 4.5 (110 reviews)

Price:	US $ 5.6-6.8/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	STC-1000

Product Description

Weekly Programmable Touch Screen Room Floor Heating Thermostat
Features:

100% brand new and high quality
modle: STC-1000
Switch the modes between cool and heat; Control temperature by setting the temperature setting value and the difference value; Temperature calibration; Refrigerating control output delay protection; Alarm when temperature exceeds temperature limit or when sensor error.

Technical Parameters:

1.Temperature measuring range: -50 ° C ~ 99 ° C
2.Resolution: 0.1 ° C;
3.Accuracy:+- 1° C (-50 ° C ~ 70 ° C);
4.Sensor error delay: 1 minute
5.Power supply: 110~220VAC , 50/60Hz;
6.Power consumption: <3W;
7.Sensor: NTC sensor (1PC);
8.Relay contact capacity: Two Relay Cool 10A/250VAC; Heat 10A/250VAC;
9.Ambient temperature: 0 ° C ~ 60 ° C;
10.Storage temperature: -30 ° C ~ 75 ° C;
11.Relative humidity: 20% ~ 85% (No condensate)
12. Sensor length: 1.0m
13.Front Panel Size: 75x34.5mm Product Size: 75x34.5x85 mm Mounting Size: 71x29mm

Menu Instruction

Code	Function	Set Range	Default
F1	Temperature set value	-50.0~99.9°C	10.0°C
F2	Difference set value	0.3~10.0°C	0.5°C
F3	Compressor delay time	1~10 minutes	3 minutes
F4	Temperature calibration value	-10.0°C~10.0°C	0°C

Package Included:

1 * Temperature Controller
1 * Temperature sensor
1 * Instruction Manual
