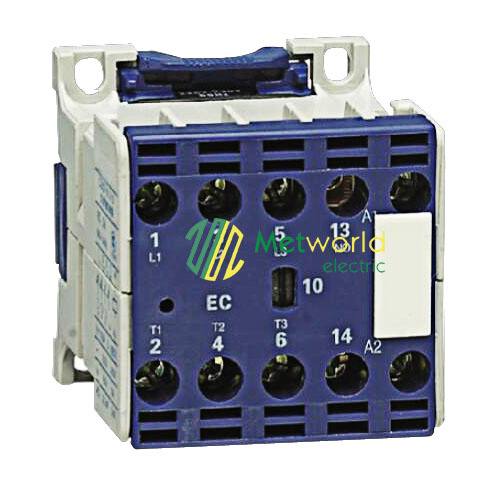

Stc1-K/Ec Series Mini Contactors Stc1-K0601

Prod Model:	STC1-EC0610/EC0601/EC06008 etc
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Working Voltage (V):	660(690)
Rated Working Current(a):	380V
Rated Heat Current(a):	16
Connecting Max Current(a):	380V/660V
Breaking Max Current(a):	380V/660V
Suitable Fuse:	Rt16-20
Electrical Life:	100
Contacts No.:	3p+Nc, 3p+Nc Ect
Wire(Square):	2.5
Operation Freqency Time/H:	100/20
Size:	Subminiature
Theory:	Thermal Relay
Usage:	Car Relay, Household Appliances Relay, Communication Relay, Lathe Relay, Contactor
Protective Characteristics:	Open Relay
Load:	Medium Power Relay
Action Principle:	Electromagnetic Type

Product Description

STC1-K/EC series AC contactor is used for long-distance making and breaking in circuit freqency AC 50HZ or 60HZ rated voltage up to 690V and rated current up to 12A the product in combination with suitable thermal overload protects overload circuit the product confirm IEC60947-4-1

SGC1-K Specifications

type	STC1-0610 STC1-0601 STC1-K06008	STC1-0910 STC1-0901 STC1-K09008
rated working voltage(V)	660(690)
breaking max current (A) 380V	48	72
breaking max current (A) 660V	60	90
connecting max current(A)380V	60	90
connecting max current(A)360V	72	108
rated heat current(A)	16	16
rated working current(A)380V AC-3	6	9
rated working current(A)380V AC-4	2.6	3.5
suitable fuse	RT16-20	RT16-20
wire (square mm)	2.5	2.5
mechanical life	X10	1000

Shipping:

1,Shipping can delivery by sea,air,or express according to customer requirement
Payment:
1. Small order under 3000USD T/T100% in advance
2. 30% deposit and 70% before shipping or after received copy of B/L
3. L/C also acceptable

Warranty:
We provide 1 year warranty.
