Steam Pressure Switch for Coffee Machine
| Price: |
US $ 5-6.5/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
PS-M5 |
| Max Pressure: |
1.5MPa |
| Terminal: |
6.3 or 4.8mm Male Q.C |
| Max Temp: |
125 ºC |
| Type: |
Mechanical |
| Application: |
Vehicles |
| Explosion-proof Type: |
Non Explosion-proof |
| Contact: |
Spst or Spdt |
Product Description
Pressure Switch PS-M5
The set point for Multi Medium Pressure Switch can be factory preset or field adjustable.It has a wide range of connection type.this switch is widely used in SPA,compressed air,air pump,industrial gases,water,hydraulic oil,steam,engineering machinery,transportation equipment etc.Feature
1) small size
2) easy installation
3) accurate pressure control
4) stable performance
Product show

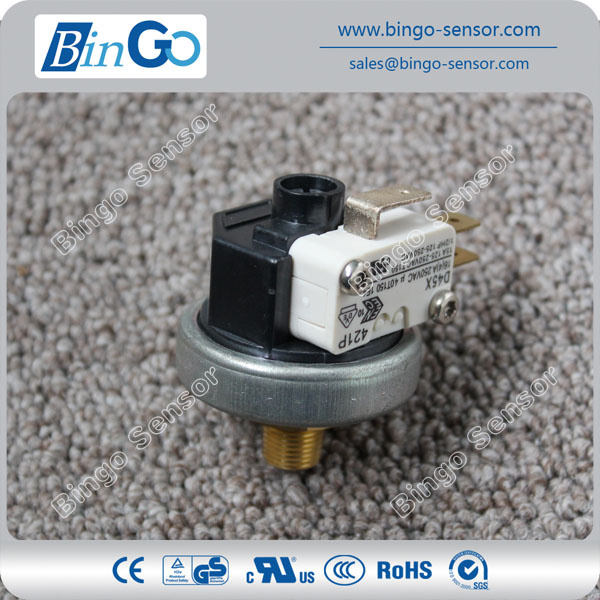

Brass connection:

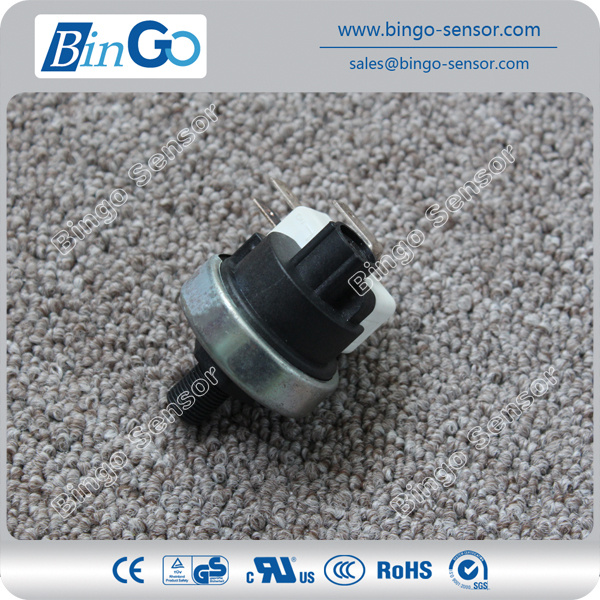

Economic type Plastic connection:

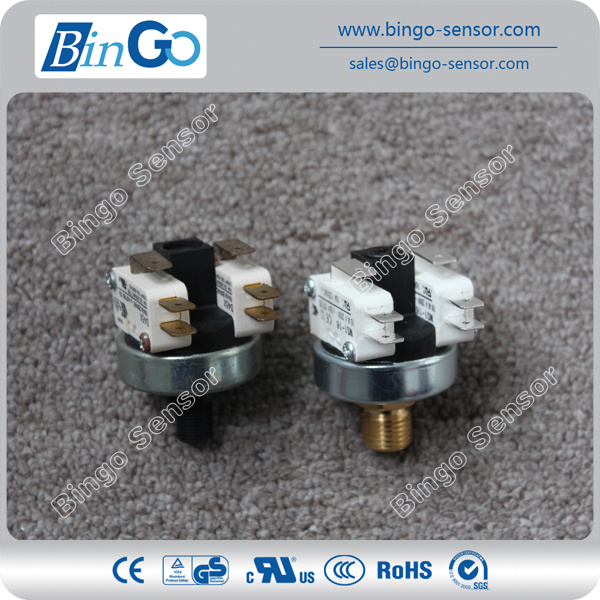

3) Double Microswitch:
Technical data Conversion: 1Kgf/cm2=14.2PSI 1Bar=14.5PSI| Model No. | PS-M5 |
| Media | Non hazardous gas, liquid or steam |
| Operating Pressure | 0.2-0.6 bar | 0.5-1.5Bar | 1.2-2.5bar | 1.5-4bar | 3-7bar | 5-9bar |
| Proof Pressure | 3bar | 4bar | 5bar | 6bar | 8bar | 10bar |
| Differential | 0.2±0.1bar | 0.2±0.1bar | 0.2±0.1bar | 0.25±0.15bar | 0.35±0.20bar | 0.6±0.20bar |
| Operating Temperature | +85ºC / +125ºC Maximum |
| Contact Arrangement | SPST or SPDT |
| Electric Rating | SPST or SPDT/ Normal Close: 16(4) A-250VAC; Other ratings are available on request |
| Terminals | 6.35 or 4.88mm male Q.C. ; Insulation cover available as necessary |
| Connection | NPT 1/8-27 or NPT1/4-18 male, G1/8 male |
