| Prod Model: |
PS-M5 |
| Switching Circuits: |
Open, Closed The Way |
| Sampling Medium: |
Non Harmful Gas, Water, Liquid |
| Overpressure Rating: |
1.5MPa |
| Type: |
Electronic |
| Application: |
Vehicles |
| Explosion-proof Type: |
Non Explosion-proof |
| Contact: |
Normally Open |
Product Description

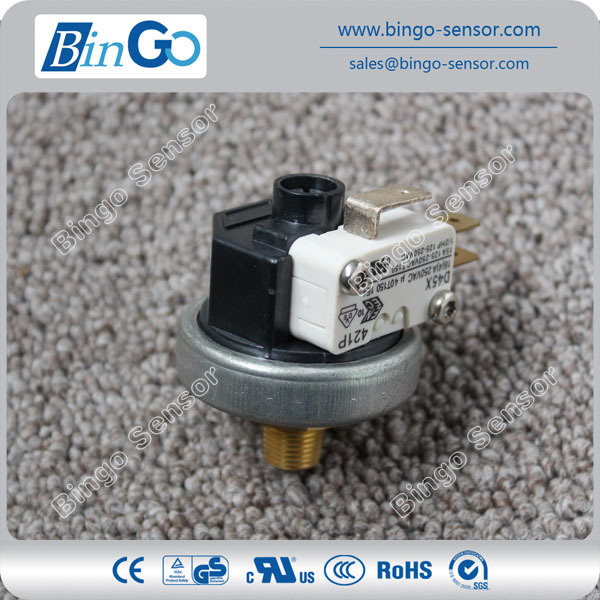

Vacuum Pressure Switch PS-M5
The set point for Multi Medium Pressure Switch can be factory preset or field adjustable.It has a wide range of connection type.this switch is widely used in SPA,compressed air,air pump,industrial gases,water,hydraulic oil,steam,engineering machinery,transportation equipment etc.Feature
1) small size
2) easy installation
3) accurate pressure control
4) stable performance
Product show

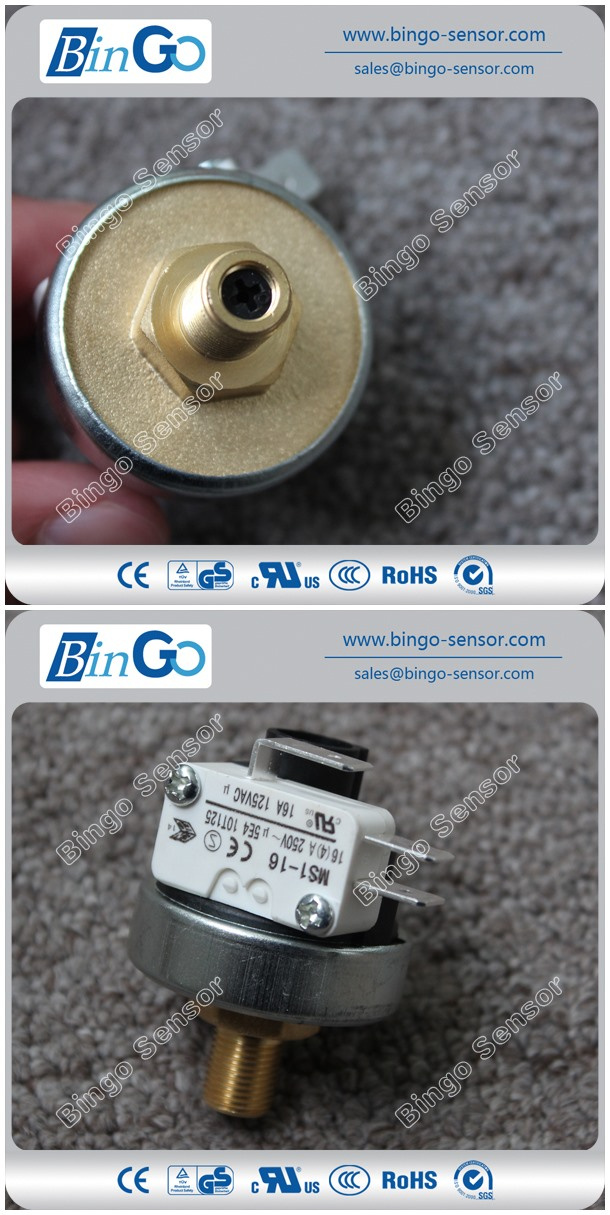

Copper connection:

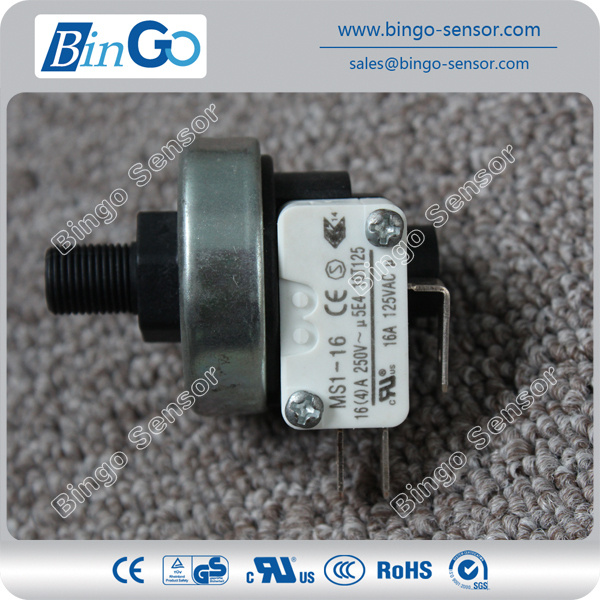

Plastic connection
Specification
Model:PS-M6(pressure adjustable)
Media:Non-hazardous gas,liquid,steam
Electric rating:16(4)A-250VAC,other ratings are available on request.
Micro switch:Cherry brand,Double-Microswitch
Terminal:6.3 or 4.8mm male Q.C
Temperature:120ºC(Max)
Base material:brass
Contact:SPDT
Connection:G1/8''
Proof pressure:15bar
Size:47x46x38mm| Operating Pressure(bar) | 0.1-0.8 | 0.5-2.0 | 1.0-3.0 | 1.5-4.0 | 2.0-5.0 | 3.0-8.0 | 4.0-10 |
| Max.Pessure(bar) | 3 | 4 | 5 | 6 | 7 | 8 | 10 |
| Differential Pressure(Bar) | 0.1±0.05 | 0.2±0.15 | 0.3±0.15 |
Conversion:1bar=14.5PSI

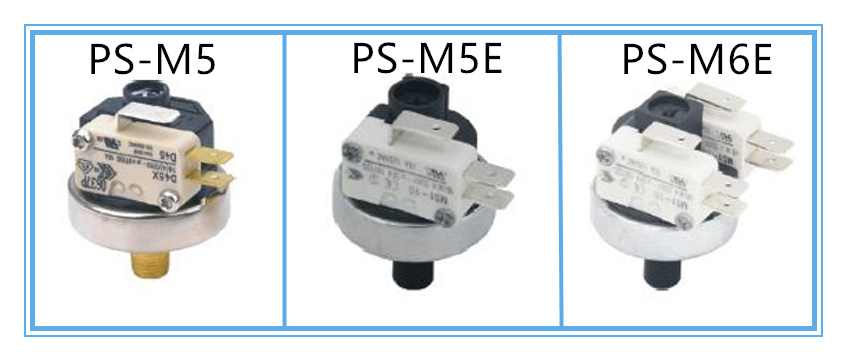

Other Type we can supply
