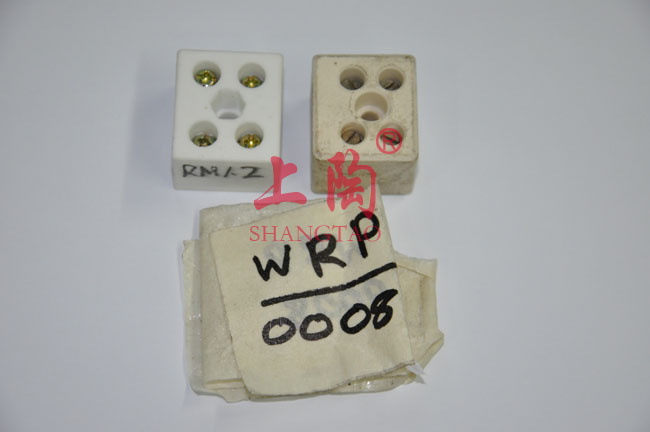

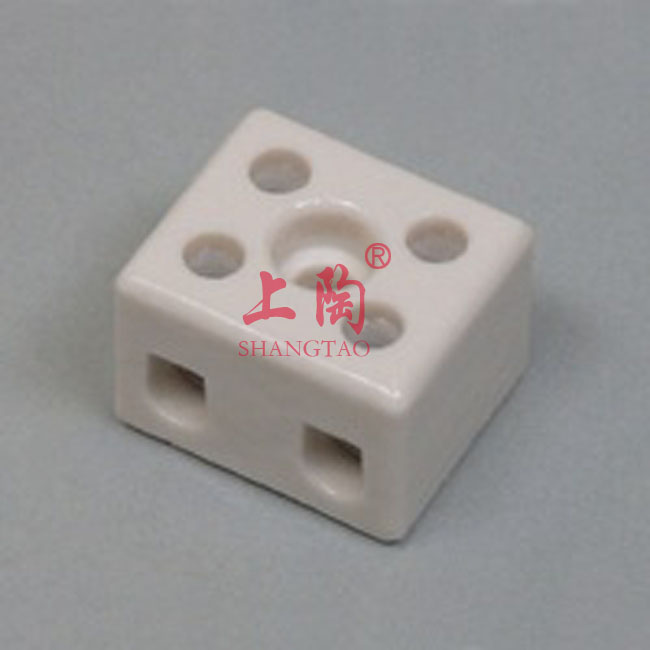

Steatite Ceramic Terminal Blocks

Prod Model:	GT-297
Finish:	Glazed or No Glazing
Way:	2,3,4,5 ,8,10
Material:	Alumina Ceramic,Steatite,Porcelain
Current:	5A,10A,15A,25A,45A
Purpose:	for Wiring Connection
Type:	Dual Hole Terminals
Application:	Transmission of Electrical Signals
Material:	Steatite

Product Description

    Gongtao company specializes in supplying ceramic connecting terminal support, ceramic accessory, electrothermal ceramic accessory, ceramic connector, ceramic tie-in, ceramic terminal, ceramic connector platform, tie-in for electric cooker, tie-in for burner, porcelain tie-in. (glazing surface and no glazing surface). We can produce and assemble based on the customers'requirement. There are 3-pole, 4-pole, 5-pole or, more connections can be assembled and chose freely. There are 1 line/2 line/3 line and 20 lines can be assembled freely. Various types such as coated ferronickel part or brass and stainless steel ect can be chosen. It can endure 600 C high temperature.

Porcelain tie-in for burner: It is produced by steatite hot press pouring technique. The measurement is very precise. We can produce and assemble based on the customers'requirement. There are 1-pole, 2-pole, 3-pole. There are various types such as coated ferronickel part or brass and stainless steel ect can be choosen. It can endure 425 C high temperature.

It is produced by steatite hot press pouring technique. Glazing or no glazing dull polish finish for ceramic surface. The measurement is very precise. We can produce and assemble based on the customers'requirement. There are plating nickel silver, brass connector terminal, galvanized surface for screw or plating nickel finish can be choosen. It can endure 425 C high temperature. This item is widely used in this case of strict various connector terminal with high temperature around.

The items have high insulation, fireproof, high temperature resistance, high mechanical strength.

Property of item: Aging-resistance, high temperature resistance, good insulation, high strength, good stability. It can applied to different environment. It can satisfy connection of mechanical devise which require rigorous temperature and environment.

Ration of voltage and current: 110V-600V 3A-75A


High porcelain connector terminal tie-in for burner: It is produced by steatite hot press pouring technique. The measurement is very precise. We can produce and assemble based on the customers'requirement. There are 1-pole, 2-pole, 3-pole. There are various types such as coated ferronickel part or brass and stainless steel ect can be choosen. It can endure 425 C high temperature.

Property of item:
Insulation, high & low temperature resistance, good shock resistance; No-distortion when heated in use. And when the air temperature is changed greatly, the body will not shrink or break. Linked to circuitry closely, the effect of dust proof and water proof can be reached.


Ceramic connector terminal:

Material of body: Steatite or alumina, which can bear high temperature test.
Technical utilize: Hot press pouring technics, which can control the required tolerance to a range. The size is very precise.
The required connecting hardware fittings used in interior line of electric equipment is copper. It can be galvanized, all choose high quality environmental protection hardware fittings material, accord with ROHS standard.
There are 1-pole, 2-pole, 3-pole. There are various types such as coated ferronickel or brass and stainless steel terminal ect.
We can produce and assemble based on the customers'requirement. Speedy delivery, reasonable price.
Rated current: 5A, 10A, 15A, 30A 50-200A Rated voltage: 110V 600V

Strength of Electric breakdown strength	15-20KV/mm
Coefficient of linear expansion	(6.5_8)×
Tolerance of size	≤±0.1mm
Application domain	Widely used in power supply connecting,top grade sockets and sockets for special industry,power supply,transformer,instrument,TV set,autocar ect.It is ideal choice for customer in different industries.



Item	Specification	Material	Length	Width	Height/thickness	Ampere A
Ceramic connector(plain)	One wire,two holes(small two holes)	Plain ceramic	20	10	13	5 A
	Big two holes	Plain ceramic				10 A
	Small four holes	Plain ceramic	21	21	15	5 A
	Big four holes	Plain ceramic	32	28	22	10 A
	Small five holes	Plain ceramic	28	21	14	5 A
	Big five holes	Plain ceramic	36	29	21	10 A
	Small six holes	Plain ceramic	28	21	16	5 A
	Big six holes	Plain ceramic	37	29	21	10 A
Ceramic connector(high frequency)	One wire,two holes(small two holes)	High frequency ceramic	18	9	13	5 A
	Big two holes	High frequency ceramic	27	15	19	10 A
	Small five holes	High frequency ceramic	20	18	15	5 A
	Big five holes	High frequency ceramic	30	27	19	10 A
	Medium five holes	High frequency ceramic	29	21	14	5 A
	Small six holes	High frequency ceramic				5 A
	Small eight holes	High frequency ceramic				5 A
	Big six holes	High frequency ceramic	36	30	20	10 A
	Big eight holes	High frequency ceramic	52	30	21	20A
	Large-size big five holes	High frequency ceramic	42	31	26	30A
	XL size big five holes	High frequency ceramic	45	34	30	50A
	Two wires connecting row	High frequency ceramic	32	23	12	20-30A
	Bridge connecting terminal Bridge ceramic tie-in	High frequency ceramic	80	24	18	30A
	Hatch ceramic tie-in	High frequency ceramic	41	32	23	30A
	Small ten holes	High frequency ceramic	48	16	14	5A-10A
	Big ten holes	High frequency ceramic	55	30	20	20A
	Connecting row five rows	High frequency ceramic	98	34	34	20A-30A
	Biggest  hatch tie-in	High frequency ceramic	115	66	40	100A-200A
