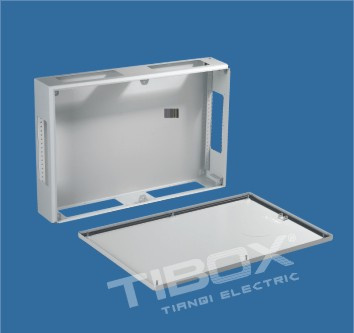

Steel Terminal Box Tl-G Series with Gland Hole Metal Connection Box

Name: Steel Terminal Box Tl-G Series with Gland Hole Metal Connection Box
Brand: all-electronics-online.com
SKU: 744912805
Availability: InStock
Rating: 4.5 (33 reviews)

Price:	US $ 10.79-25.75/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	TL
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Ral 7035 or Ral7032
Type:	Power
Structure:	Protection
Application Range:	Electronic Equipment
Shell Protection Grade:	IP66
Brand:	Tibox

Product Description

Packaging & Delivery
Packaging Detail: IN CARTONS
Delivery Detail: 45DAYS FOR 1X40'HQ AFTER CONFIRMED THE ORDER
Specifications
- Enclosure and cover: Sheet steel 1.2mm
- Mounting plate: Sheet steel 1.5mm
- Enclosure and cover: Sheet steel 1.2mm
- Mounting plate: Sheet steel 1.5mm

Surface finish:
- Enclosure and cover: Thermosetting epoxy polyester power coated in textured RAL 7035
- Mounting plate: Zinc coated

Protection degrees:
- IP66 NEMA 4 for TL without gland opening
- IP55 NEMA 12 for TL-G with gland opening

Supply includes:
- TL series
- Enclosure, cover, PU foam sealing rubber, screws for fixing, TL-G series
- Enclosure with gland holes, cover, screws for fixing, gland plate and its gasket

NO.	W H D(mm)	MODEL
1	300×150×120	TL301512-G
2	300×200×120	TL302012-G
3	300×300×120	TL303012-G
4	400×200×120	TL402012-G
5	400×400×120	TL404012-G
6	500×200×120	TL502012-G
7	500×300×120	TL503012-G
8	600×200×120	TL602012-G
9	600×300×120	TL603012-G
10	600×400×120	TL604012-G
11	800×200×120	TL802012-G
12	800×400×120	TL804012-G

Zhejiang tianqi electric Co., Ltd., with 10 years experience in electrical industry, is one of the leading manufacturer of distribution boxes and panel meters in China. Founded in China 1998, located in the beautiful land scape of the largest China bamboo sea in anji economic development zone which place is in the north of zhejiang, covers an area of 100, 000 square meters and has 500 employees.

T&j's product range consists of wall mounting enclosures, floor standing cabinets, stainless steel enclosures, plastic enclosures, terminal boxes, power distribution cabinets, floor standing modular cabinets, console systems, analog panel meters, digital panel meter, DIN rail panel meter, current transformer, shunt.

We also got the quality system certificate of CE, rosh, IP65 and ISO 9002 for our products. It has established the good commercial relations with America, west-europeam, east-Asia, Africa etc.

All kinds of electronics products and its accessories will be designed and manufactured according to the customer' s special requirement.

Sticking to the policy as "no quality, no future!
