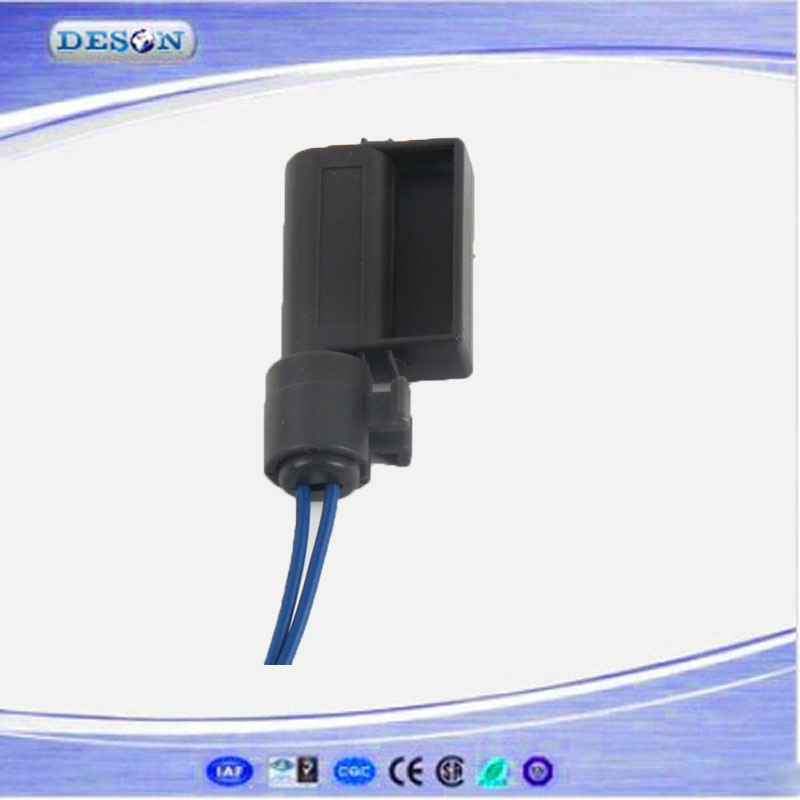

Stego Airflow Monitor Air Flow Detector Lcf 013

Name: Stego Airflow Monitor Air Flow Detector Lcf 013
Brand: all-electronics-online.com
SKU: 782226255
Availability: InStock
Rating: 4.7 (143 reviews)

Price:	US $ 10.5-11.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LCF 013
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Contact Type:	Reed / Magnet Contact
Contact:	No or Nc
Max Airflow:	50m/S
Mounting:	Mounting Clip
Service Life:	>10,000 Cycles
IP Class:	IP 20

Product Description

Stego Airflow Monitor , Industrial Flowmeter with Air Flow Sensor For Filter Fan Air Loss With NO and NC LCF 013

AirFlow Monitor

1 . Mechanical Switch Contact
2 . Versatile Fields of Application
3 . Small Size
4 . Easy to Connect

The airflow monitor (NC / NO) is designed to indicate the loss of air movement of a fan or filter fan. The contact detects the loss of air movement caused by fan failure or blocked filter media regardless of direction of air. Its simple mechanical operation makes it a viable alternative to electronic monitoring systems.

Contact Type	Reed / Magnet Contact
Normally Closed ( NC )	Switch Contact Closed when Air is Flowing
Nromally Open ( NO )	Switch Conatct Open When Air is Flowing
Max Switch Voltage	NC:240VDC(UL) , 240VAC/DC(VDE) / NO:60VDC
Max Switch Current	NC:DC 500mA / NO:DC 170mA
Switch threshold airflow velocity	50m/s
Service Life	>100,000cycles

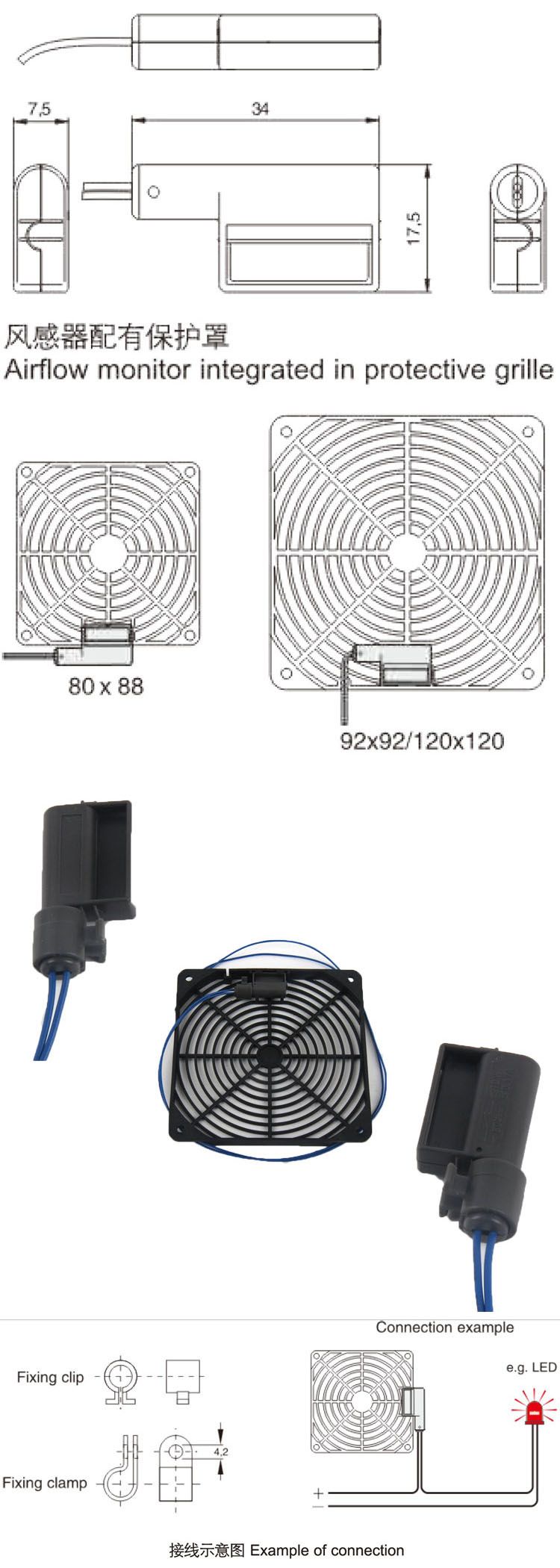

Connection	2xsingle strand AWG 26 , length 500mm , tip of stranded wire 5mm stripped and tinned ( NC:Black , NO:Blue )
Mounting	Mounting Clamp or Mounting clip
Casing IP Class	Plastic according to UL94-HB , Black IP20
