| Prod Model: |
42BYGH1101 Series |
| Motor Series: |
42 Bygh |
| Step Angle: |
1.8 Degree |
| Shaft End Length: |
265mm (10.43 in) |
| Shaft: |
Plain Shaft |
| Connectors: |
Connectors, Lead Wires |
| Motor Length: |
34.3mm (1.35 in) Max |
| Holding Torque: |
240mnm (33.98 Oz-in) |
| Rated Current: |
0.4 a DC |
| Payment Term: |
30% Deposit, 70% Balance Before Shipment. |
| Number Of Stator: |
Two-Phase |
| Excitation Mode: |
HB-Hybrid |
| Operate Mode: |
Three-Phase Six-Step |
| Type: |
Magnetic-Electric |
| Brand: |
Shengyang |
Product Description

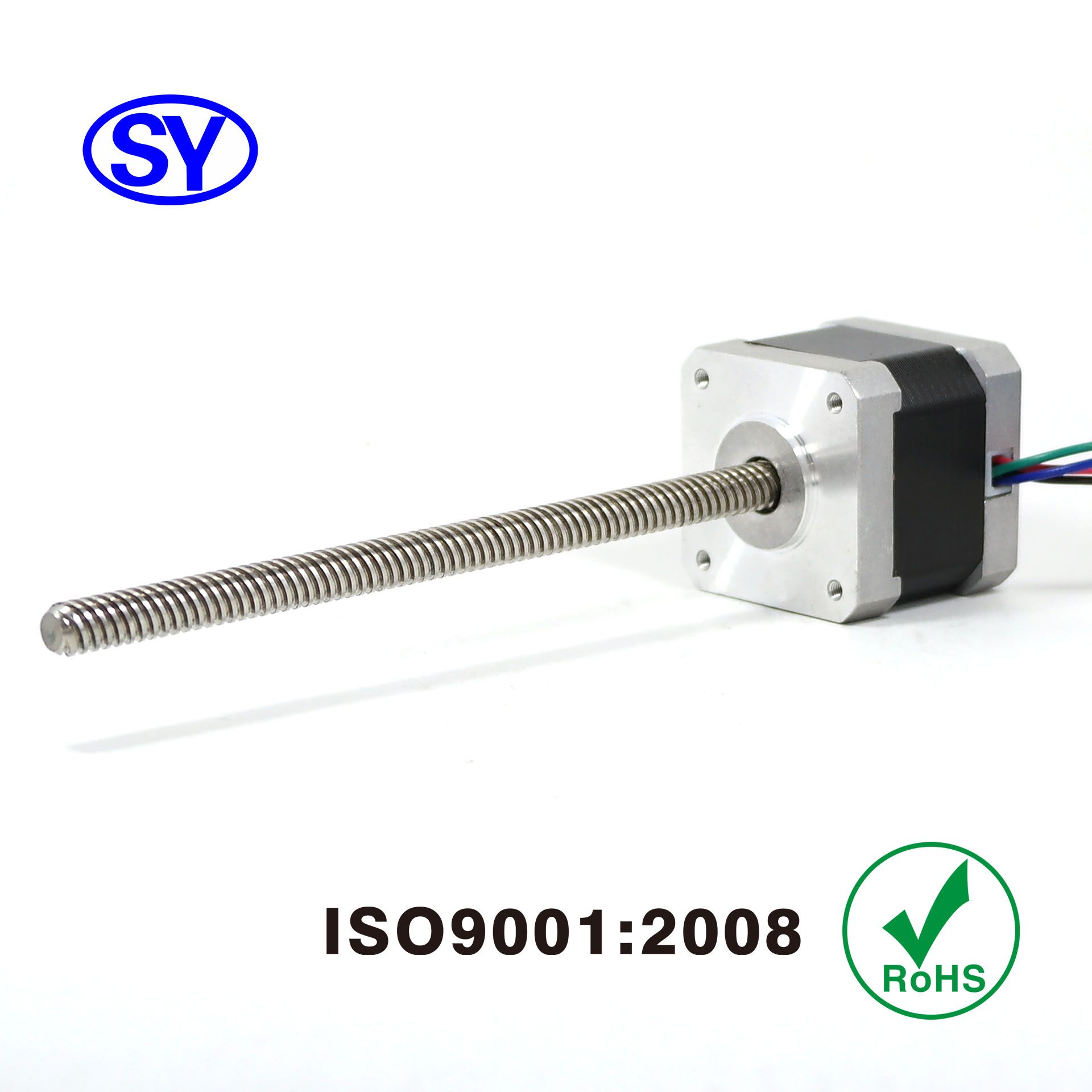

Stepper Motor 3D Printer Electrical Motor
Features
High torque
Low noise
Smallsize
Product Description
2. Specifications:
Step Angle: 1.8°± 5% full step, no load
Holding Torque: 240mNm (33.98 oz-in)
Resistance per Phase: 30 ohm
Inductance per Phase: 45 mH
Rated Current: 0.4A DC
Ambient Temperature: -24ºC- +60ºC
Relative humidity: 90% MAX
Resistance Accuracy: ± 10%
Insulation Resistance: Larger than 100MΩ 500V DC
Dielectric Strength: 600V AC for 1S, leakage current less than 1mA
2. Note:
Performance and parameters can be customized, just simply send your motor diagram or samples to us, the competitive pricing will be sent to you soon for your reference.
Pricing is decided by the motor's performace and parameters, most importantly decided by your requirment, contact us and get the latest the price list.
3.Payment term:
T/T in advance, 30% deposit, 70% balance before shipment.
About Zhongshan Shengyang Motor Co., Ltd.:
Zhongshan Shengyang Motor Co., Ltd., established in 2011, has anual production capability of more than 3 million pieces for stepper motor and micro motor. We passed ISO9001:2008 quality system, raw materials comply with RoHS, all products can be customized, welcome to contact us.
Contacts: Ms Land Mo
Mobile: (+86) 134 2576 8350
Homepage: shengyangmotor.en.made-in-china.com
Series
&
Length | Model
Number | Holding
Torque | Rated
Current | Resistance
per Phase | Inductance
per Phase | Detent
Torque | Rotor
Inertia |
| mNm oz-in | A | ohm | Mh | mNm oz-in | g.cm² oz-in² |
42BYGH0
26 mm
(1.02 in.) | 42BYGH007 | 160 22.66 | 0.4 | 10.4 | 14 | 11.8 1.67 | 38 0.21 |
42BYGH1
33mm
(1.30 in.) | 42BYGH107 | 250 35.40 | 0.4 | 22 | 30 | 11.8 1.67 | 38 0.21 |
42BYGH2
34 mm
(1.34 in.) | 42BYGH202 | 220 31.15 | 0.5 | 30 | 37 | 11.8 1.67 | 38 0.21 |
42BYGH4
40 mm
(1.57 in.) | 42BYGH412 | 420 59.47 | 1 | 6.7 | 9.8 | 16.8 2.38 | 38 0.21 |
42BYGH4
40 mm
(1.57 in.) | 42BYGH413 | 300 42.48 | 1 | 3.5 | 5 | 16.8 2.38 | 38 0.21 |
42BYGH11
34mm
(1.34 in.) | 42BYGH1101 | 240 33.98 | 0.4 | 30 | 45 | 15 2.12 | 38 0.21 |
| 42BYGH1102 | 280 39.65 | 0.84 | 5.75 | 9.3 | 15 2.12 | 38 0.22 |
More details or any new inquiry, welcome to contact US.
