| Prod Model: |
NEMA8-NEMA52 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Current: |
0.2-8A |
| Step Angle: |
1.8 |
| Holding Torque: |
0.016-28n.M |
| Wires: |
4/6/8 |
| Number Of Stator: |
Two-Phase |
| Excitation Mode: |
HB-Hybrid |
| Type: |
Electromechanical |
| Application: |
CNC Machine |
| Operate Mode: |
2 Phase Double Beat |
| Certification: |
CE and RoHS |
| Brand: |
Jkongmotor |

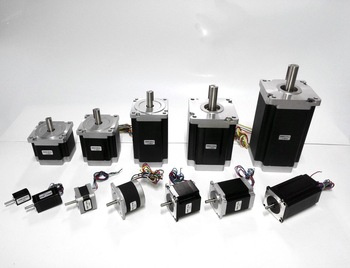

Product Description
General Specifications:
(ITEM) | (Specification) |
Step angle | 1.2° |
Tempareture Rise | 80ºC max |
Ambient Temperature Range | -20ºC- +50ºC |
Insulation Resistance | 100MΩ Min., 500VDC |
Dielectric Strength | 500 VAC for 1s 3mA |
Shaft Radial Play | 0.02 Max.(450g-load) |
Shaft Axial Play | 0.08 Max.(450g-load) |
Max. radial force | 20-220N(20mm from the flange) |
Max. axial force | 2-60N |
Electrical Specification:
NEMA8
| Model No. | Step Angle | Motor Length | Current
/Phase | Resistance
/Phase | Inductance
/Phase | Holding Torque | Lead wires | Motor
Weight |
| ( °) | (L)mm | A | ohm | mH | g.cm | No. | Kg |
| JK20HS30-0604 | 1.8 | 30 | 0.6 | 6.5 | 1.7 | 180 | 4 | 0.05 |
| JK20HS33-0604 | 1.8 | 33 | 0.6 | 6.5 | 1.7 | 180 | 4 | 0.06 |
| JK20HS38-0604 | 1.8 | 38 | 0.6 | 10 | 5.5 | 400 | 4 | 0.07 |
| JK20HS42-0604 | 1.8 | 42 | 0.8 | 5.4 | 1.5 | 300 | 4 | 0.08 |
NEMA11 | Model No. | Step Angle | Motor Length | Current
/Phase | Resistance
/Phase | Inductance
/Phase | Holding Torque | Lead wires | Rotor Inertia | Motor
Weight |
| ( °) | (L)mm | A | Ω | mH | g.cm | No. | g.cm | Kg |
| JK28HS32-0956 | 1.8 | 32 | 0.95 | 2.8 | 0.8 | 430 | 6 | 9 | 0.11 |
| JK28HS32-0674 | 1.8 | 32 | 0.67 | 5.6 | 3.4 | 600 | 4 | 9 | 0.11 |
| JK28HS45-0956 | 1.8 | 45 | 0.95 | 3.4 | 1.2 | 750 | 6 | 12 | 0.14 |
| JK28HS45-0674 | 1.8 | 45 | 0.67 | 6.8 | 4.9 | 950 | 4 | 12 | 0.14 |
| JK28HS51-0956 | 1.8 | 51 | 0.95 | 4.6 | 1.8 | 900 | 6 | 18 | 0.2 |
| JK28HS51-0674 | 1.8 | 51 | 0.67 | 9.2 | 7.2 | 1200 | 4 | 18 | 0.2 |
NEMA14
| Model No. | Step Angle | Motor Length | Current
/Phase | Resistance
/Phase | Inductance
/Phase | Holding Torque | Lead
wires | Detent Torque | Rotor Inertia | Motor
Weight |
| ( °) | (L)mm | A | Ω | mH | g.cm | No. | g.cm | g.cm | Kg |
| JK35HS26-0284 | 1.8 | 26 | 0.28 | 26 | 27 | 700 | 4 | 60 | 10 | 0.13 |
| JK35HS28-0504 | 1.8 | 28 | 0.5 | 20 | 18 | 1000 | 4 | 80 | 11 | 0.14 |
| JK35HS34-1004 | 1.8 | 34 | 1.0 | 2.7 | 4.3 | 1400 | 4 | 100 | 14 | 0.18N |
NEMA16
| Model No. | Step Angle | Motor Length | Current
/Phase | Resistance
/Phase | Inductance
/Phase | Holding Torque | Lead
wires | Detent Torque | Rotor Inertia | Motor
Weight |
| ( °) | (L)mm | A | Ω | mH | g.cm | No. | g.cm | g.cm | Kg |
| JK39HS20-0404 | 1.8 | 20 | 0.4 | 6.6 | 7.5 | 650 | 4 | 50 | 11 | 0.12 |
| JK39HS20-0506 | 1.8 | 20 | 0.5 | 13 | 7.5 | 800 | 6 | 50 | 11 | 0.12 |
| JK39HS34-0404 | 1.8 | 34 | 0.4 | 30 | 32 | 2100 | 4 | 120 | 20 | 0.18 |
| JK39HS34-0306 | 1.8 | 34 | 0.3 | 40 | 20 | 1300 | 6 | 120 | 20 | 0.18 |
| JK39HS38-0504 | 1.8 | 38 | 0.5 | 24 | 45 | 2900 | 4 | 180 | 24 | 0.2 |
| JK39HS38-0806 | 1.8 | 38 | 0.8 | 7.5 | 6 | 2000 | 6 | 180 | 24 | 0.2 |
| JK39HS44-0304 | 1.8 | 44 | 0.3 | 40 | 100 | 2800 | 4 | 250 | 40 | 0.25 |
NEMA17
| Model No. | Step Angle | Motor Length | Current
/Phase | Resistance
/Phase | Inductance
/Phase | Holding Torque | Lead
wires | Detent Torque | Rotor Inertia | Motor Weight |
| ( °) | (L)mm | A | Ω | mH | kg.cm | No. | g.cm | g.cm | Kg |
| JK42HS34-0956 | 1.8 | 34 | 0.95 | 4.2 | 2.5 | 1.6 | 6 | 120 | 34 | 0.22 |
| JK42HS34-0406 | 1.8 | 34 | 0.4 | 24 | 15 | 1.6 | 6 | 120 | 34 | 0.22 |
| JK42HS34-0316 | 1.8 | 34 | 0.31 | 38.5 | 21 | 1.6 | 6 | 120 | 34 | 0.22 |
| JK42HS34-1334 | 1.8 | 34 | 1.33 | 2.1 | 2.5 | 2.2 | 4 | 120 | 34 | 0.22 |
| JK42HS40-1206 | 1.8 | 40 | 1.2 | 3.3 | 3.2 | 2.6 | 6 | 150 | 54 | 0.28 |
| JK42HS40-0806 | 1.8 | 40 | 0.8 | 7.5 | 6.7 | 2.6 | 6 | 150 | 54 | 0.28 |
| JK42HS40-0406 | 1.8 | 40 | 0.4 | 30 | 30 | 2.6 | 6 | 150 | 54 | 0.28 |
| JK42HS40-1684 | 1.8 | 40 | 1.68 | 1.65 | 3.2 | 3.6 | 4 | 150 | 54 | 0.28 |
| JK42HS48-1206 | 1.8 | 48 | 1.2 | 3.3 | 2.8 | 3.17 | 6 | 260 | 68 | 0.35 |
| JK42HS48-0806 | 1.8 | 48 | 0.8 | 7.5 | 6.3 | 3.17 | 6 | 260 | 68 | 0.35 |
| JK42HS48-0406 | 1.8 | 48 | 0.4 | 30 | 25 | 3.17 | 6 | 260 | 68 | 0.35 |
| JK42HS48-1684 | 1.8 | 48 | 1.68 | 1.65 | 2.8 | 4.4 | 4 | 260 | 68 | 0.35 |
| JK42HS60-1206 | 1.8 | 60 | 1.2 | 6 | 7 | 6.5 | 6 | 280 | 102 | 0.5 |
NEMA23
| Model No. | Step Angle | Motor Length | Current
/Phase | Resistance
/Phase | Inductance
/Phase | Holding Torque | Lead wires | Detent Torque | Rotor Inertia | Motor
Weight |
| ( °) | (L)mm | A | Ω | mH | N.m | No. | g.cm | g.cm | Kg |
| JK57HS41-1006 | 1.8 | 41 | 1 | 5.2 | 5.5 | 0.39 | 6 | 250 | 150 | 0.47 |
| JK57HS41-2006 | 1.8 | 41 | 2 | 1.4 | 1.4 | 0.39 | 6 | 250 | 150 | 0.47 |
| JK57HS41-3006 | 1.8 | 41 | 3 | 0.63 | 0.6 | 0.39 | 6 | 250 | 150 | 0.47 |
| JK57HS41-2804 | 1.8 | 41 | 2.8 | 0.7 | 1.4 | 0.55 | 4 | 250 | 150 | 0.47 |
| JK57HS51-1006 | 1.8 | 51 | 1 | 6.6 | 8.2 | 0.72 | 6 | 300 | 230 | 0.59 |
| JK57HS51-2006 | 1.8 | 51 | 2 | 1.65 | 2.2 | 0.72 | 6 | 300 | 230 | 0.59 |
| JK57HS51-3006 | 1.8 | 51 | 3 | 0.74 | 0.9 | 0.72 | 6 | 300 | 230 | 0.59 |
| JK57HS51-2804 | 1.8 | 51 | 2.8 | 0.83 | 2.2 | 1.01 | 4 | 350 | 280 | 0.68 |
| JK57HS56-1006 | 1.8 | 56 | 1 | 7.4 | 10 | 0.9 | 6 | 350 | 280 | 0.68 |
| JK57HS56-2006 | 1.8 | 56 | 2 | 1.8 | 2.5 | 0.9 | 6 | 350 | 280 | 0.68 |
| JK57HS56-3006 | 1.8 | 56 | 3 | 0.75 | 1.1 | 0.9 | 6 | 350 | 280 | 0.68 |
| JK57HS56-2804 | 1.8 | 56 | 2.8 | 0.9 | 2.5 | 1.26 | 4 | 350 | 280 | 0.68 |
| JK57HS76-1006 | 1.8 | 76 | 1 | 8.6 | 14 | 1.35 | 6 | 600 | 440 | 1.1 |
| JK57HS76-2006 | 1.8 | 76 | 2 | 2.25 | 3.6 | 1.35 | 6 | 600 | 440 | 1.1 |
| JK57HS76-3006 | 1.8 | 76 | 3 | 1 | 1.6 | 1.35 | 6 | 600 | 440 | 1.1 |
| JK57HS76-2804 | 1.8 | 76 | 2.8 | 1.13 | 3.6 | 1.89 | 4 | 600 | 440 | 1.1 |
| JK57HS82-3004 | 1.8 | 82 | 3.0 | 1.2 | 4 | 2.2 | 4 | 1000 | 600 | 1.2 |
| JK57HS82-5004 | 1.8 | 82 | 5 | 0.6 | 1.5 | 2.2 | 4 | 1000 | 600 | 1.2 |
| JK57HS112-3004 | 1.8 | 112 | 3.0 | 1.6 | 6.8 | 2.8 | 4 | 1200 | 800 | 1.4 |
| JK57HS112-4204 | 1.8 | 112 | 4.2 | 0.9 | 3.8 | 2.8 | 4 | 1200 | 800 | 1.4 |
NEMA34
| Model No. |
Step Angle | Motor Length | Current
/Phase | Resistance
/Phase | Inductance
/Phase | Holding Torque |
Lead
wires |
Detent Torque | Rotor Inertia |
Motor
Weight |
| ( °) | (L)mm | A | Ω | mH | N.m | No. | Kg.cm | g.cm | Kg |
| JK86H66-5904 | 1.8 | 66 | 5.9 | 0.28 | 1.7 | 3.4 | 4 | 0.8 | 1000 | 1.7 |
| JK86H66-2808 | 1.8 | 66 | 2.8 | 1.4 | 3.9 | 3.4 | 8 | 0.8 | 1000 | 1.7 |
| JK86H78-5504 | 1.8 | 78 | 5.5 | 0.46 | 4 | 4.6 | 4 | 1.2 | 1400 | 2.3 |
| JK86H78-4208 | 1.8 | 78 | 4.24 | 0.75 | 3.4 | 4.6 | 8 | 1.2 | 1400 | 2.3 |
| JK86H97-4008 | 1.8 | 97 | 4 | 0.98 | 4.1 | 6.8 | 8 | 1.6 | 1900 | 3 |
| JK86H97-5008 | 1.8 | 97 | 5 | 0.65 | 2.4 | 6.8 | 8 | 1.6 | 1900 | 3 |
| JK86H97-2708 | 1.8 | 97 | 2.7 | 1.9 | 8.6 | 6.8 | 8 | 1.6 | 1900 | 3 |
| JK86H115-6004 | 1.8 | 115 | 6 | 0.6 | 6.5 | 8.7 | 4 | 2.4 | 2700 | 3.8 |
| JK86H115-4208 | 1.8 | 115 | 4.2 | 0.9 | 6 | 8.7 | 8 | 2.4 | 2700 | 3.8 |
| JK86H126-4008 | 1.8 | 126 | 4 | 1.3 | 5.8 | 9.3 | 8 | 3.0 | 3200 | 4.5 |
| JK86H126-5008 | 1.8 | 126 | 5 | 0.85 | 3.4 | 9.3 | 8 | 3.0 | 3200 | 4.5 |
| JK86H126-2708 | 1.8 | 126 | 2.7 | 2.5 | 12.5 | 9.3 | 8 | 3.0 | 3200 | 4.5 |
| JK86H155-6204 | 1.8 | 153 | 6.2 | 0.75 | 9 | 12 | 4 | 3.6 | 4000 | 5.4 |
| JK86H155-4208 | 1.8 | 153 | 4.2 | 1.25 | 8 | 12 | 8 | 3.6 | 4000 | 5.4 |
NEMA42
| Model | Step Angle | Motor Length | Current
/Phase | Resistance
/Phase | Inductance
/Phase | Holding Torque | Lead
wires | Detent Torque | Rotor Inertia | Motor
Weight |
| ( °) | (L)mm | A | Ω | mH | N.m | No. | kg.cm | g.cm | Kg |
| JK110HS99-5504 | 1.8 | 99 | 5.5 | 0.9 | 12 | 11.2 | 4 | 3 | 5500 | 5 |
| JK110HS150-6504 | 1.8 | 150 | 6.5 | 0.8 | 15 | 21 | 4 | 5.9 | 10900 | 8.4 |
| JK110HS201-8004 | 1.8 | 201 | 8 | 0.67 | 12 | 28 | 4 | 7.5 | 16200 | 11.7 |
NEMA52
| Model No. | input
Voltage
| Current
/Phase | Resistance
/Phase | Inductance
/Phase | Noload
Frequency | Starting
Frequency |
Holding Torque | Motor
Length | Motor
Weight |
| V | A | Ω | mH | Hz | Hz | N.m | mm | Kg |
| JK130HS170-6004 | 80~325 | 6 | 0.75 | 12.6 | 25000 | 2300 | 20 | 170 | 13.3 |
| JK130HS225-6004 | 80~325 | 6 | 0.87 | 14.5 | 25000 | 2300 | 30 | 225 | 18 |
| JK130HS250-7004 | 80~325 | 7 | 0.77 | 12.4 | 23000 | 2200 | 40 | 250 | 19 |
| JK130HS280-7004 | 80~325 | 7 | 0.85 | 14.4 | 23000 | 2200 | 50 | 280 | 22.5 |
Applications:
Used for robots stepper motor,
Electronic automatic equipment stepping motor,
Medical instrument stepping motor,
Advertising instrument stepper motor,
Lighting& audio equipment stepper motor,
Printer stepper motor, textile machinery stepper motor.
Cnc router stepper motor.
Note: We can also manufacture products according to customer's requirements.

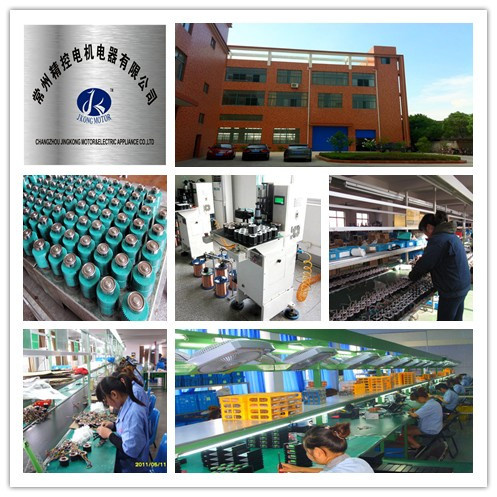

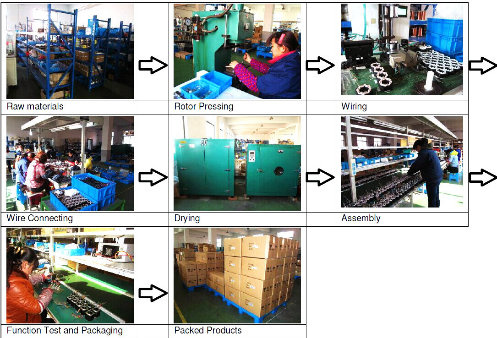

Changzhou Jingkong Motor&Electric Appliance Co., Ltd. Was found in 2005 located in High Technology Industry Zone in changzhou, China, has more than 100 staff and occupies an area of more than 3000 square meters. Now we are already passed RoHS and CE testing.
We offer excellent stepper motors, Stepper Motor Driver, DC Servo Motor, stepper Motor Power Supply, Stepper Motor Kit, CNC router. These are the best motors on the market. Stepper Motor is used on CNC router, CNC lathes, small to MID-sized CNC mills & milling machines, Laser Engravers and Laser cutters, Vinyl Sign Cutters, CNC Plasma Cutters, and CNC Foam Cutters. The stepper motor also has been used in precision telescope positioning systems and robots. Low inductance and high torque make these Motor the best choice.
We are an professional manufacturer for stepper motor, stepper driver, BLDC motor and DC motor.

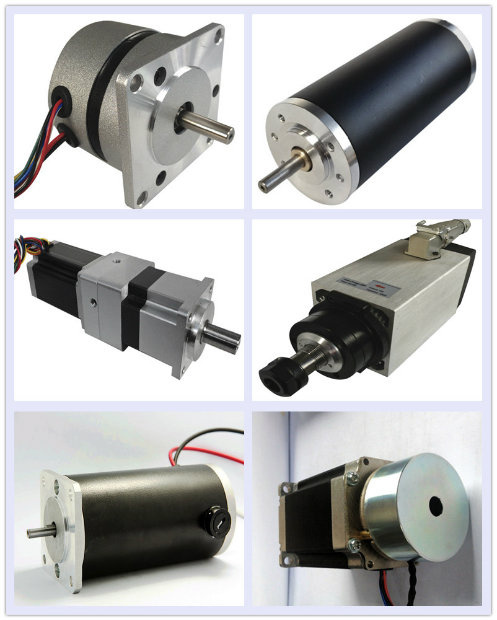

We make hybrid stepper motor, hybrid gear stepper motor, hybrid stepper motor driver, brushless DC motor. Spindle motor,
For stepper motor mainly have 20mm(8), 28mm(NEMA 11), 35mm(NEMA 14), 39mm(NEMA 16), 42mm(NEMA 17), 57mm(NEMA 23), 60mm (NEMA24), 86mm (NEMA 34), 110mm (NEMA 42) and so on.
Competotive price and high quality. Hope can cooperate with you.
