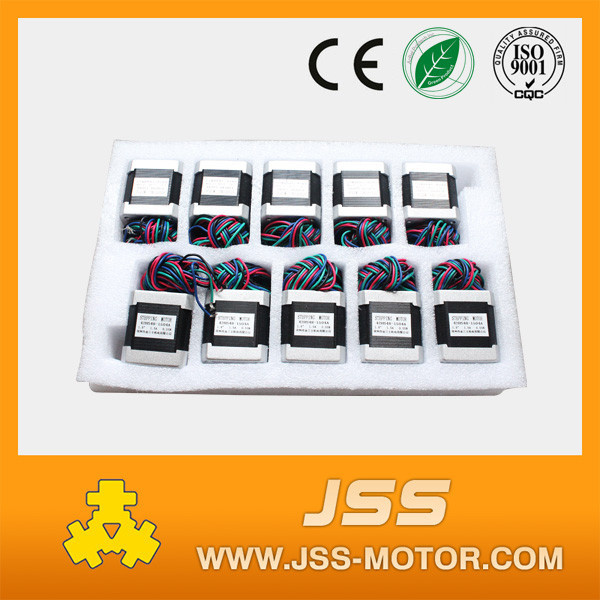

Stepper Motor NEMA14 2 Phase 1.8 C Drive

Name: Stepper Motor NEMA14 2 Phase 1.8 C Drive
Brand: all-electronics-online.com
SKU: 772082835
Availability: InStock
Rating: 4.5 (118 reviews)

Price:	US $ 4.8-6.5/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	35HS34-1004
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Step Angle:	1.8
Frame Size:	35mm X35mm
Current:	1.0A
Resistance:	3.2
Inductance:	6.0mh
Holding Torque:	1.8kg.Cm
Motor Body Length:	34mm
Lead Wires:	4
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Type:	Magnetic-Electric
Application:	CNC
Operate Mode:	Driver
Certification:	CE
Brand:	Jss

Product Description

stepper motor nema14 2 phase 1.8 c drive
Product Description
We produce stepper motor from nema 8 to nema 42, and suitable drivers for all these motors.
Our products can be applied to printing equipment, engraving machine textile machine, computer external application equipment, medical instruments, stage light equipment, robot, CNC machine tool and other automatic controlling system.

Technique Parameter

Step Angle	1.8°
Step Angle Accuracy	±5% (full step,no load)
Resistance Accuracy	±10%
Inductance Accuracy	±20%
Temperature Rise	80ºCMax.(rated current,2 phase on)
Ambient Temperature	-10ºC+50ºC
Insulation Resistance	100MΩMin. 500VDC
Dielectric Strength	500VAC for one minute
Shaft Radial Play	0.06Max.(450 g-load)
Shaft Axial Play	0.08Max.(450 g-load)

Tip:motor shaft and wires can be customerized.

Tips:motor shaft can be customerized.

nema 11 stepper motor data:

Model No	Current/Phase	Resistance/Phase	Inductance/Phase	Holding Torque		#Of Leads	Rotor Inertia	Weight	Length
	A	Ω	mH	Oz-in	kg-cm		g-cm2	Kg	mm
35HS20-0204	0.2	15	8		0.28	4	8	0.12	20
35HS20-0604	0.6	9.5	6.5		0.35	4	8	0.12	20
35HS26-0766	0.76	9	4.8		0.8	6	9	0.13	26
35HS28-0504	0.50	20	20		1.0	4	10	0.14	28
35HS28-0754	0.75	4.3	5		0.8	4	10	0.14	28
35HS28-0194	0.19	60	42		1	4	11	0.13	28
35HS28-1004	1	3.5	3.5		1.25	4	11	0.13	28
35HS31-0306	0.3	35	18		1.4	6	14	0.2	31
35HS31-0804	0.8	6.8	8		2	4	14	0.2	31
35HS34-1204	1.2	2.5	3.5		1.5	4	14	0.2	34
35HS34-0506	0.5	24	18		1.5	6	14	0.2	34.5
35HS34-1004	1	3.2	6		1.8	4	14	0.2	34.5
35HS38-1004	1	3.5	5		2	4	14	0.2	38
35HS45-0304	0.3	28	30		2.2	4	20	0.3	45
35HS45-0804	0.8	3.6	6.8		2.1	4	20	0.3	45

We also produce linear stepper motor, gearbox stepper motor, stepper motor with brake, drivers for all the motors, and closed loop stepper motors and drivers. We also have accessories such as power supplys, spindles and inverters, breakout board, TB6560 driver board, timing pulleys and so on.

Welcome to contact us:
Terrific after-sales service: 24hours around the clock & 12 months Warranty
Life-long maintenance service for the product.
Our contact information:
Mobile:86-18912327911

Jinsanshi Mechatronics co. Ltd. Is a comprehensive company which specilizes in producing and researching stepper and motor driver. Our company is located in Changzhou city, Jiangsu province, China. We own an excellent group with rich experience in manufacturing and researching. In this field, we have rich experience, so that we can solve the actual using problems for customers. Our products are highly commended by customers because of its easy operation, long using life, stable performance, low failure rate and high technical content.

Our products are widely applied in printing equipment, engraving machine textile machine, computer external application equipment, medical instruments, stage light equipment, robot, NC machine tool and other automatic controlling system. Our main products include stepper motor from NEMA 8 to NEMA 42, geared stepper motors, lead screw motors, stepper motor with brake, drivers for all the motors. We also produce closed loop steppers and drivers.

On the way of development, the principle of "efficiency is the life, quality is the fundamental" is always insisted by Jinsanshi people. We take the market as the guidance, provide high quality products and good service to customers. We are expecting the cooperation with more friends from home and aboard in the near future.
