| Prod Model: |
JK57HS76-3004ZB-01AF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
6V |
| Holding Torque: |
2.1n.M |
| Current: |
3A |
| Resistance: |
2ohm |
| Shaft: |
Double Shaft |
| Inductance: |
7.5mh |
| Shaft Diameter: |
7.5mm |
| Frame Size: |
57mm*57mm |
| Body Length: |
76mm |
| Key Word: |
Stepper Motor |
| Number Of Stator: |
Two-Phase |
| Excitation Mode: |
HB-Hybrid |
| Type: |
Electromechanical |
| Application: |
Small CNC Machine |
| Operate Mode: |
Double Beat |
| Certification: |
CE and RoHS |
| Brand: |
Jkong Motor |
Product Description

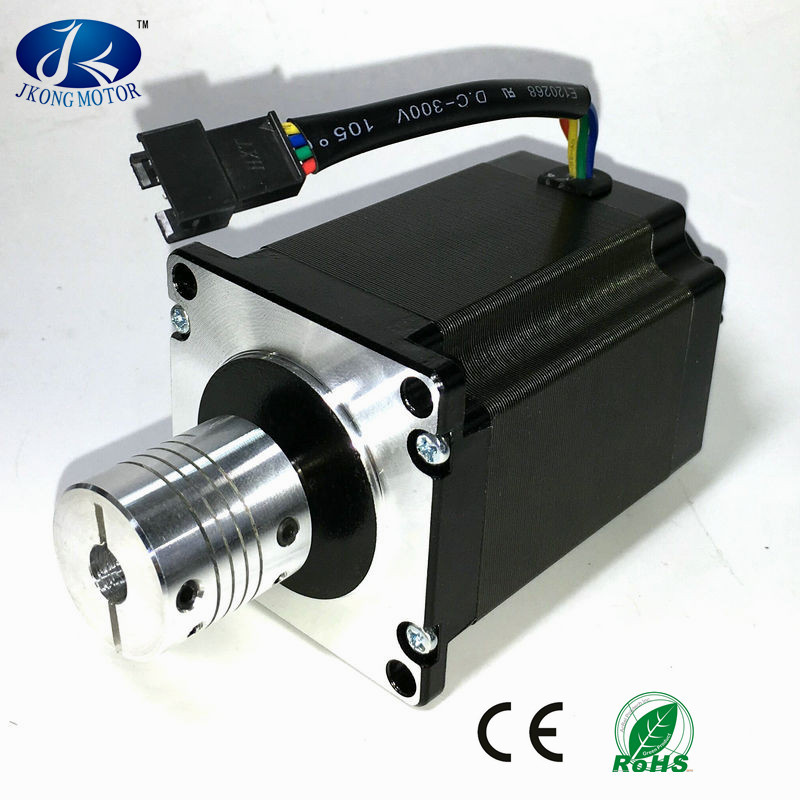

Stepper Motor NEMA23 with hand wheel for Small CNC XY Axis, couplings for free Step Accuracy ------------------------------ ±5%
Resistance Accuracy ----------------------- ±10%
Inductance Accuracy ---------------------- ±20%
Temperature Rise -------------------------- 80°C MAX.
Ambient Temperature Range ------------- -20°C~ +50°C
Storage Temperature Range ------------- -30°C~ +60°C
Insulation Resistance ---------------------- 100M Ω MIN. 500V DC
Dielectric Strength ------------------------- 500V AC 1min
Radial Play --------------------------------- 0.02mm MAX. (450g Load)
End Play ------------------------------------ 0.08mm MAX. (450g Load)
Max. radial force --------------------------- 75N
Max. axial force ---------------------------- 15N
Electrical Specification:
| Model No. | Step Angle | Motor Length | Current
/Phase | Resistance
/Phase | Inductance
/Phase | Holding Torque | Lead wires | Detent Torque | Rotor Inertia | Motor
Weight |
| ( °) | (L)mm | A | Ω | mH | N.m | No. | g.cm | g.cm | Kg |
| JK57HS41-1006 | 1.8 | 41 | 1 | 5.2 | 5.5 | 0.39 | 6 | 250 | 150 | 0.47 |
| JK57HS41-2006 | 1.8 | 41 | 2 | 1.4 | 1.4 | 0.39 | 6 | 250 | 150 | 0.47 |
| JK57HS41-3006 | 1.8 | 41 | 3 | 0.63 | 0.6 | 0.39 | 6 | 250 | 150 | 0.47 |
| JK57HS41-2804 | 1.8 | 41 | 2.8 | 0.7 | 1.4 | 0.55 | 4 | 250 | 150 | 0.47 |
| JK57HS51-1006 | 1.8 | 51 | 1 | 6.6 | 8.2 | 0.72 | 6 | 300 | 230 | 0.59 |
| JK57HS51-2006 | 1.8 | 51 | 2 | 1.65 | 2.2 | 0.72 | 6 | 300 | 230 | 0.59 |
| JK57HS51-3006 | 1.8 | 51 | 3 | 0.74 | 0.9 | 0.72 | 6 | 300 | 230 | 0.59 |
| JK57HS51-2804 | 1.8 | 51 | 2.8 | 0.83 | 2.2 | 1.01 | 4 | 350 | 280 | 0.68 |
| JK57HS56-1006 | 1.8 | 56 | 1 | 7.4 | 10 | 0.9 | 6 | 350 | 280 | 0.68 |
| JK57HS56-2006 | 1.8 | 56 | 2 | 1.8 | 2.5 | 0.9 | 6 | 350 | 280 | 0.68 |
| JK57HS56-3006 | 1.8 | 56 | 3 | 0.75 | 1.1 | 0.9 | 6 | 350 | 280 | 0.68 |
| JK57HS56-2804 | 1.8 | 56 | 2.8 | 0.9 | 2.5 | 1.26 | 4 | 350 | 280 | 0.68 |
| JK57HS76-1006 | 1.8 | 76 | 1 | 8.6 | 14 | 1.35 | 6 | 600 | 440 | 1.1 |
| JK57HS76-2006 | 1.8 | 76 | 2 | 2.25 | 3.6 | 1.35 | 6 | 600 | 440 | 1.1 |
| JK57HS76-3006 | 1.8 | 76 | 3 | 1 | 1.6 | 1.35 | 6 | 600 | 440 | 1.1 |
| JK57HS76-2804 | 1.8 | 76 | 2.8 | 1.13 | 3.6 | 1.89 | 4 | 600 | 440 | 1.1 |
| JK57HS82-3004 | 1.8 | 82 | 3.0 | 1.2 | 4 | 2.2 | 4 | 1000 | 600 | 1.2 |
| JK57HS82-5004 | 1.8 | 82 | 5 | 0.6 | 1.5 | 2.2 | 4 | 1000 | 600 | 1.2 |
| JK57HS112-3004 | 1.8 | 112 | 3.0 | 1.6 | 6.8 | 2.8 | 4 | 1200 | 800 | 1.4 |
| JK57HS112-4204 | 1.8 | 112 | 4.2 | 0.9 | 3.8 | 2.8 | 4 | 1200 | 800 | 1.4 |

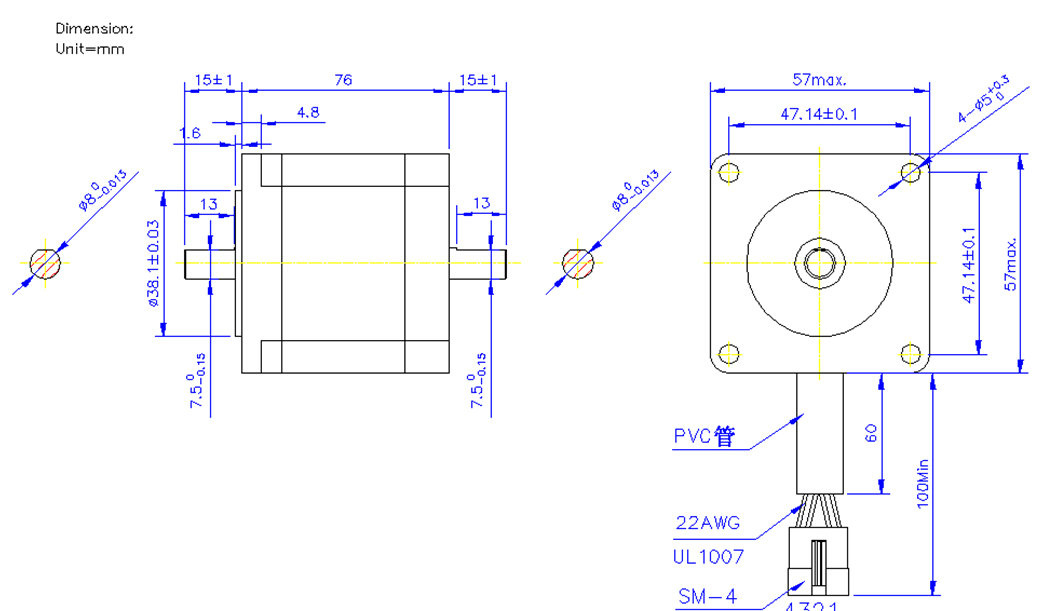

Drawing:

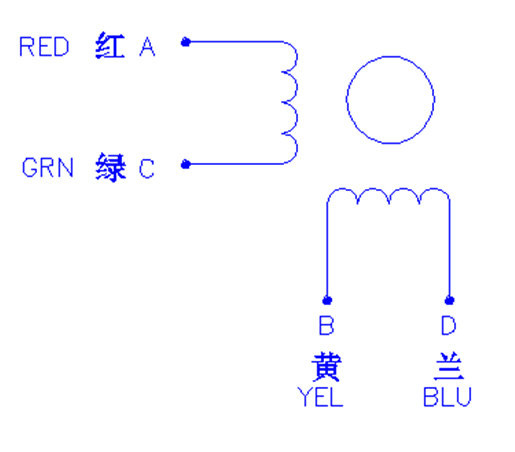

Wiring Diagram:
Company Show:
CHANGZHOU JINGKONG MOTOR & ELECTRIC Appliance Co.ltd is a high-tech enterprise that specializes in designing and producing Hybrid Stepper Motor, Gear Motor, Linear motor, Brushless dc Motor, Driver and some related parts.
Our Appliance fields refer to robot, electronic equipment, medical instrument, ad instrument, lighting & audio equipment, 3D printer, texile machine and CNC machine.
All our products have obtained CE certification, compliance with EU ROHS standards.
Welcome Domestic & foreign customers visit and cooperation!
Our Service:
1.Warranty One Year
2.If products in Stock, Deliver goods that very day.
3.If customizing, 2-4weeks according to specific order quantity.
4.Products will be sent by DHL, FEDEX, UPS, TNT.
5.About package, inner flexible carton, outside carton box and plastic wrap.
6.Various products for your choice, meeting all your requirement.
Changzhou Jingkong Motor&Electric Appliance Co., Ltd. Was found in 2005 located in High Technology Industry Zone in changzhou, China, has more than 100 staff and occupies an area of more than 3000 square meters. Now we are already passed RoHS and CE testing.
We offer excellent stepper motors, Stepper Motor Driver, DC Servo Motor, stepper Motor Power Supply, Stepper Motor Kit, CNC router. These are the best motors on the market. Stepper Motor is used on CNC router, CNC lathes, small to MID-sized CNC mills & milling machines, Laser Engravers and Laser cutters, Vinyl Sign Cutters, CNC Plasma Cutters, and CNC Foam Cutters. The stepper motor also has been used in precision telescope positioning systems and robots. Low inductance and high torque make these Motor the best choice.
We are an professional manufacturer for stepper motor, stepper driver, BLDC motor and DC motor.
We make hybrid stepper motor, hybrid gear stepper motor, hybrid stepper motor driver, brushless DC motor. Spindle motor,
For stepper motor mainly have 20mm(8), 28mm(NEMA 11), 35mm(NEMA 14), 39mm(NEMA 16), 42mm(NEMA 17), 57mm(NEMA 23), 60mm (NEMA24), 86mm (NEMA 34), 110mm (NEMA 42) and so on.
Competotive price and high quality. Hope can cooperate with you.
