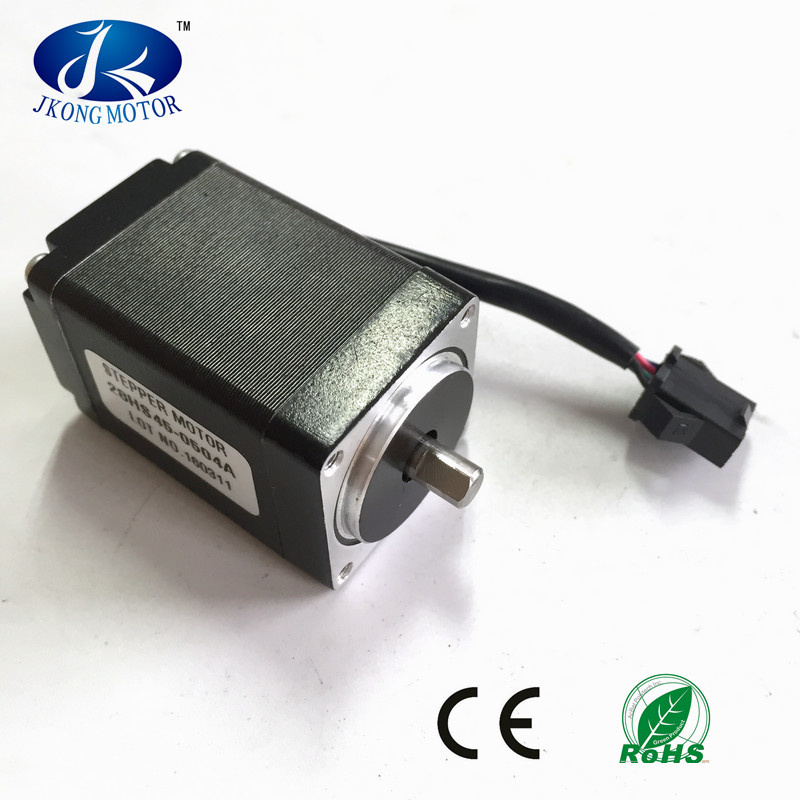

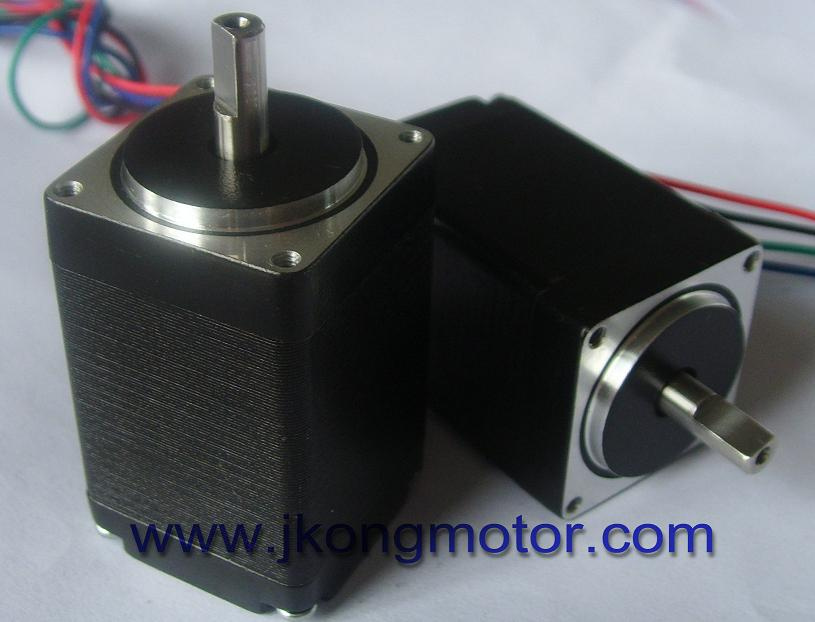

Stepper Motors 28mm, NEMA11

Name: Stepper Motors 28mm, NEMA11
Brand: all-electronics-online.com
SKU: 693797375
Availability: InStock
Rating: 4.4 (23 reviews)

Price:	US $ 6-9/Piece
Trade Terms:	CFR
Min Order:	5/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	JK28HS
Markets:	North America,South America,Eastern Europe,Western Europe
Step Angel:	1.8 Degree
Frame Size:	28mm*28mm
Body Length:	32mm-51mm
Current:	0.67/0.95A
Holding Torque:	0.43-1.2kg.Cm
Wires:	4/6
Key Word:	Stepper Motor
Shaft Shape:	Round Shaft/ D-Cut
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Type:	Electromechanical
Operate Mode:	Double Beat
Certification:	Ce and RoHS
Brand:	Jkongmotor

Product Description

1.8° 20mm Hybrid Stepper Motor- NEMA8

Genaral Specification:

Step Angle ------------------- 1.8° ± 5%
Temperature Rise ------------- 80° Max
Ambient Temperature -------- -20° ~+50°
Insulation Resistance--------- 100 MΩ Min., 500VDC
Dielectric Strength: ------------ 500VAC for 1minute
Shaft Radial Play --------------- 0.02Max. (450g-load)
Shaft Axial Play ----------------- 0.08Max. (450g-load)
Max. Radial force----------------- 28N (20mm from the flange)
Max. Axial force------------------- 10N

NEMA11 STEPPER MOTOR DEMENSION:

Model No.	Step Angle	Motor Length	Current /Phase	Resistance /Phase	Inductance /Phase	Holding Torque	# of Leads	Rotor Inertia	Weight
Model No.	( ° )	(L)mm	A	Ω	mH	g. cm	No.	g. cm	Kg
JK28H32-0956	1.8	32	0.95	2.8	0.8	430	6	9	0.11
JK28H32-0674	1.8	32	0.67	5.6	3.4	600	4	9	0.11
JK28H45-0956	1.8	45	0.95	3.4	1.2	750	6	12	0.14
JK28H45-0674	1.8	45	0.67	6.8	4.9	950	4	12	0.14
JK28H51-0956	1.8	51	0.95	4.6	1.8	900	6	18	0.2
JK28H51-0674	1.8	51	0.67	9.2	7.2	1200	4	18	0.2

Company Show:

CHANGZHOU JINGKONG MOTOR & ELECTRIC Appliance Co.ltd is a high-tech enterprise that specializes in designing and producing Hybrid Stepper Motor, Gear Motor, Linear motor, Brushless dc Motor, Driver and some related parts.

Our Appliance fields refer to robot, electronic equipment, medical instrument, lighting & audio equipment, 3D printer, texile machine and CNC machine.

All our products have obtained CE certification, compliance with EU ROHS standards.

Welcome Domestic & foreign customers visit and cooperation!

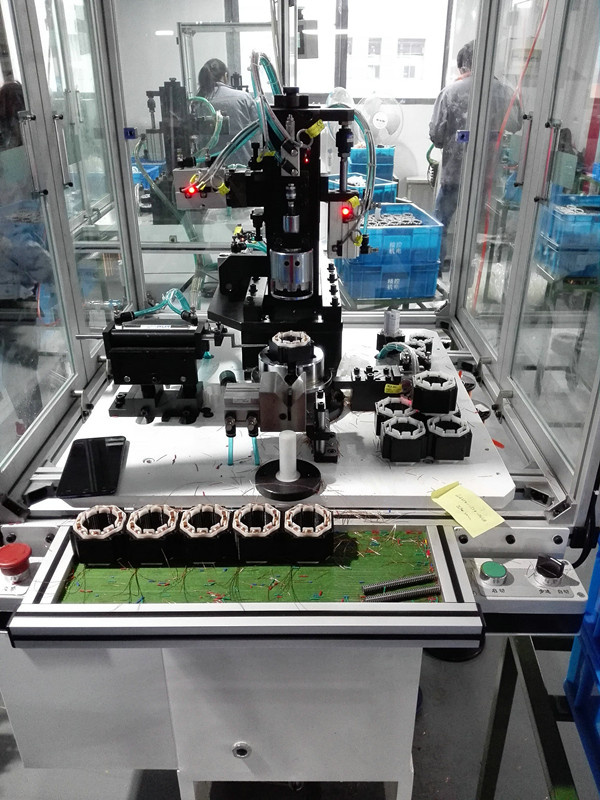

Winding Type

Changzhou Jingkong Motor&Electric Appliance Co., Ltd. Was found in 2005 located in High Technology Industry Zone in changzhou, China, has more than 100 staff and occupies an area of more than 3000 square meters. Now we are already passed RoHS and CE testing.

We offer excellent stepper motors, Stepper Motor Driver, DC Servo Motor, stepper Motor Power Supply, Stepper Motor Kit, CNC router. These are the best motors on the market. Stepper Motor is used on CNC router, CNC lathes, small to MID-sized CNC mills & milling machines, Laser Engravers and Laser cutters, Vinyl Sign Cutters, CNC Plasma Cutters, and CNC Foam Cutters. The stepper motor also has been used in precision telescope positioning systems and robots. Low inductance and high torque make these Motor the best choice.

We are an professional manufacturer for stepper motor, stepper driver, BLDC motor and DC motor.

We make hybrid stepper motor, hybrid gear stepper motor, hybrid stepper motor driver, brushless DC motor. Spindle motor,

For stepper motor mainly have 20mm(8), 28mm(NEMA 11), 35mm(NEMA 14), 39mm(NEMA 16), 42mm(NEMA 17), 57mm(NEMA 23), 60mm (NEMA24), 86mm (NEMA 34), 110mm (NEMA 42) and so on.

Competotive price and high quality. Hope can cooperate with you.
