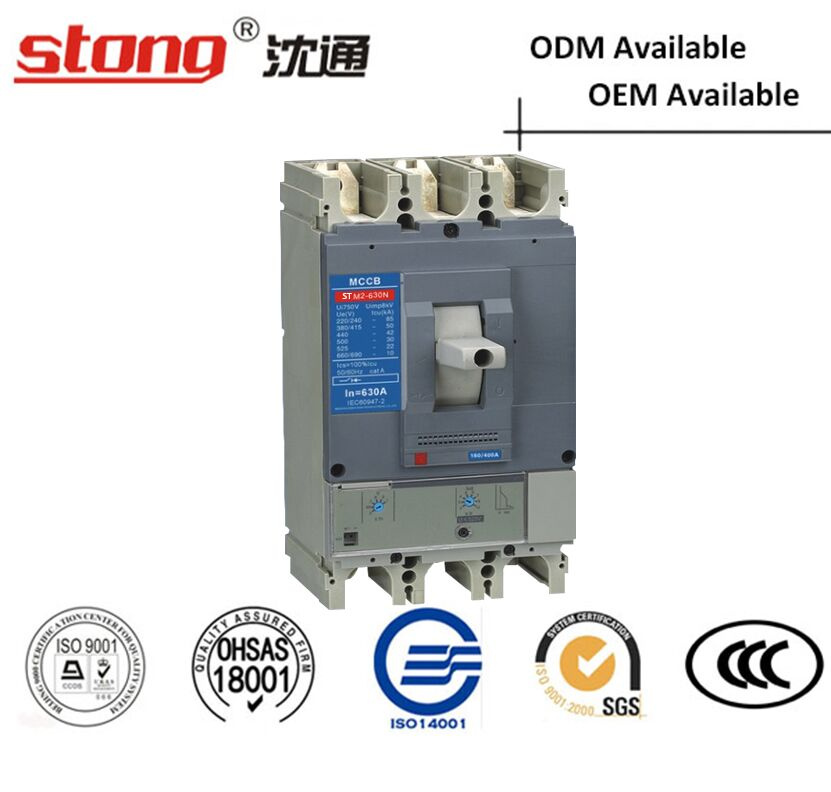

Stm2-630A Moulded Case Circuit Breaker MCCB

Name: Stm2-630A Moulded Case Circuit Breaker MCCB
Brand: all-electronics-online.com
SKU: 718014582
Availability: InStock
Rating: 4.7 (49 reviews)

Price:	US $ 115-120/Piece
Min Order:	300/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	STM2-630
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCCB
Poles Number:	3
Certification:	CCC

Product Description

Advantages:
1.Our Company Has Great Reputation In The Market.
2.Good Quality Guaranteed With Reasonable Price.
3.OEM, ODM Are Welcomed.
4.Goods Will Be Delivered On Time.
5.Factory Selling Directly

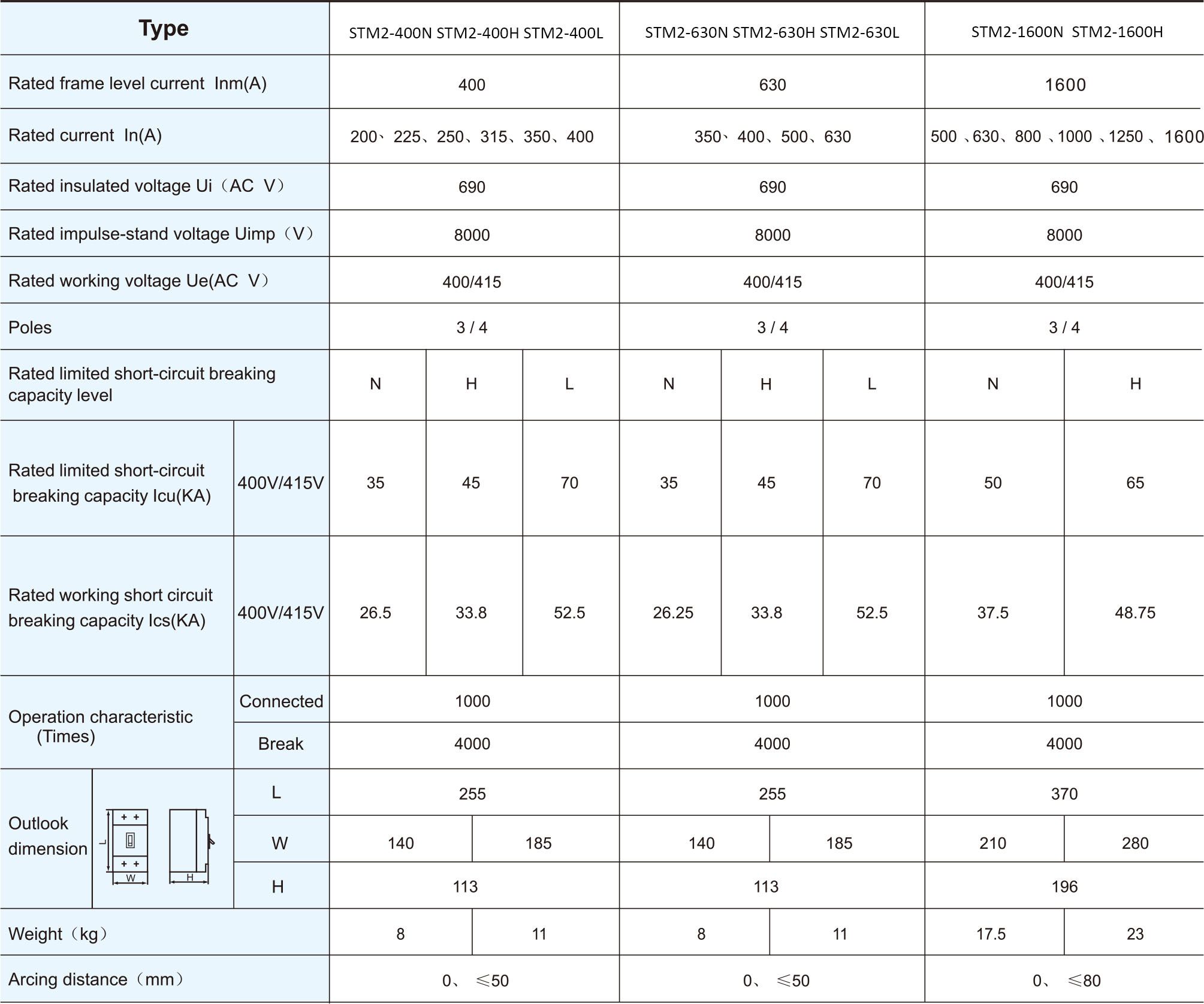

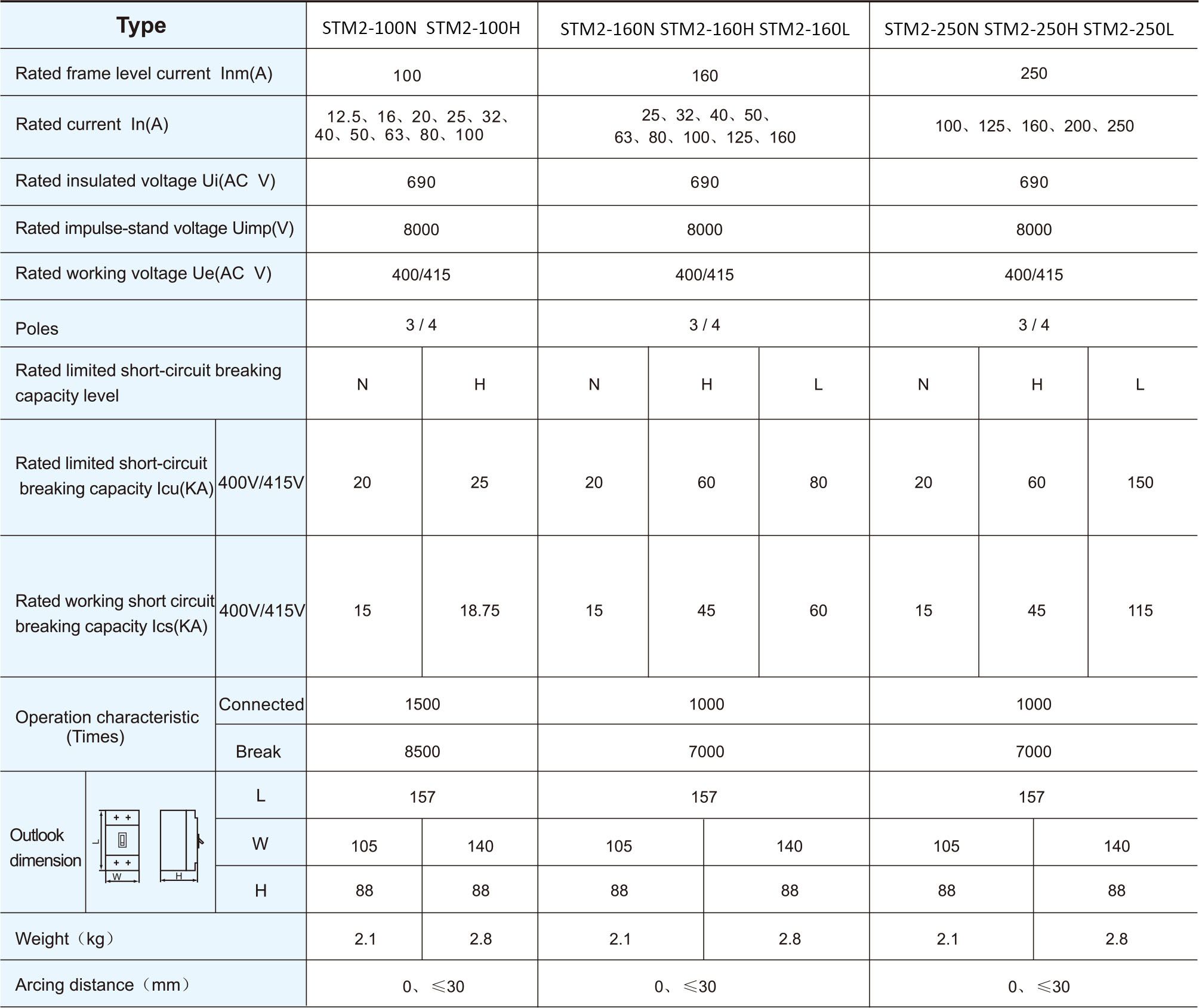

Model (3P; 4P)

Items	Ampers	Poles	Voltage	Rated Current	Certificate
STM2-100	100A	3/4P	400/415V	12.5A-100A	IEC60947-2
STM2-160	160A	3/4P	400/415V	25A-160A	IEC60947-2
STM2-250	250A	3/4P	400/415V	100A-250A	IEC60947-2
STM2-400	400A	3/4P	400/415V	200A-400A	IEC60947-2
STM2-630	630A	3/4P	400/415V	350A-630A	IEC60947-2

STM2-1600

1600A

3/4P

400/415V

500A-1600A

IEC60947-2

More suitable for installation & application;
All parts are made by us, with fresh new materials & moulds.
Main Technical data of MCCB CAMB Series
Circuit breaker application: Distribution
Poles description: 3P
Protected poles description: 3t
Network frequency: 50/60 Hz
[In] rated current: 100 A ( 40 ° C )
[Ui] rated insulation voltage:
690 V AC 50/60 Hz conforming to IEC60947-2
[Uimp] rated impulse withstand voltage:
6 kV conforming to IEC60947-2
[Ue] rated operational voltage:
250 V DC conforming to IEC 60947-2
550 V AC 50/60 Hz conforming to IEC 60947-2
Circuit breaker rating code: N
MCCB Breaking capacity:
Icu 650kA 220/230/240 V AC 50/60 Hz conforming to IEC 60947-2
Icu 30kA 400/415 V AC 50/60 Hz conforming to IEC60947-2
Icu 20kA 440 V AC 50/60 Hz conforming to IEC60947-2
[Ics]MCCB rated service breaking capacity:
Ics 30kA 220/230/240 V AC 50/60 Hz conforming to IEC 60947-2
Ics 7kA 400/415 V AC 50/60 Hz conforming to IEC60947-2
Ics 5kA 440 V AC 50/60 Hz conforming to IEC60947-2
Suitability for isolation: Yes conforming to IEC60947-2
Utilisation category: Category A
Trip unit technology: Thermal-magnetic
Trip unit rating: 100 A ( 50 ° C )
Protection type:
Overload protection
Short-circuit protection
Pollution degree:
3 conforming to IEC 947-1
3 conforming to IEC 60664-1
MCCB Complementary
Control type: Toggle
Mounting mode: Fixed
Mounting support: Backplate
Upside connection: Front
Downside connection: Front
Mechanical durability: 8500 cycles
Electrical durability: Category A: 1500 cycles 415 V AC 50/60 Hz conforming to IEC 60947-2
Connection pitch: 25 mm
Local signalling: Positive contact indication
Neutral protection setting: Without protection
Earth-leakage protection; Without
Height: 130 mm
Width: 75 mm
Depth; 60 mm
MCCB Environment Standards: GB 14048.2, IEC 60947-2,
IP degree of protection: IP20 conforming to IEC 60529
IK degree of protection: IK07 conforming to IEC 62262
Ambient air temperature for operation: -25...70 ° C
Ambient air temperature for storage: -35...85 ° C

Shentong Technology Co., Ltd. is an integrated professional power equipment manufacturing enterprise of science, industry and trade, which is located in Wenzhou, Zhejiang which is called "The city of electrical"in China. The current enterprise registration funds is one hundred million Yuan. Our company has throughed the ISO9001 international quality certification system. We are also the national power "two network transformation"recommended enterprise. Our company is specialized in the production of HV/LV Integrated Switchgears and switchgears' accessories, power station accessories, such as: Power Transformer, 10kv-40.5kv intelligent vacuum circuit breaker, epoxy resin casting insulators, wall bushing, contact box, earthing switch, load switch, 10kv-35kv current transformer, 10kv-35kv voltage transformer, low voltage current transformers, solenoids, SF6 load switch, high voltage metering box and other electric components. Chinese professional terminal manufacture, Chinese vcb manufacture, electrical manufacture, switchgear manufacture, Chinese CT PT manufacture

Our company has a group of senior technical production staff. The company adopts modern production and management modes. With high quality products and perfect after sale Service, we got good reputation from customers. The products are widely used in aerospace, metallurgy, petrochemical, port, municipal and other industries.

We not only provide customers with excellent quality products, but also strive to use our years of professional experience to provide customers with the best solutions and characteristics of personalized services.

Product Advantages: Well and High Quality Control, Prompt Delivery, New Product, Customer's Design and Logo are Welcome, Competitive Prices, Earth-friendly Products, Small Order Acceptable, ODM Accepted, OEM Accepted,
