Product Description
Advantages:
1.Our Company Has Great Reputation In Domestic Market.
2.Good Quality Guaranteed With Reasonable Price.
3.OEM,ODM Are Welcomed.
4.Goods Will Be Delivered On Time.

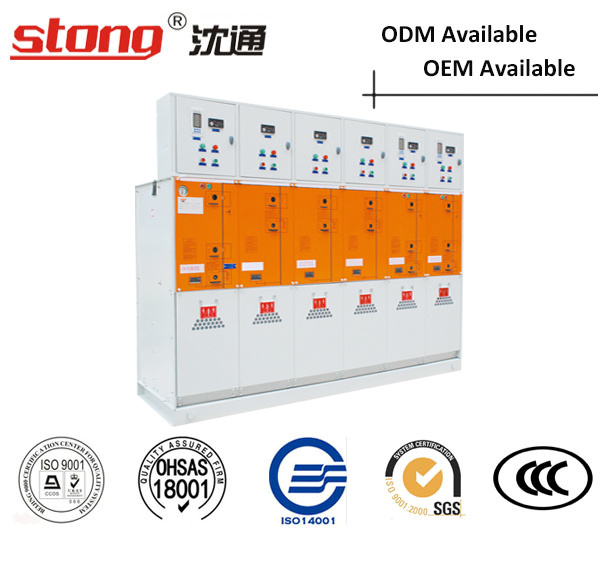

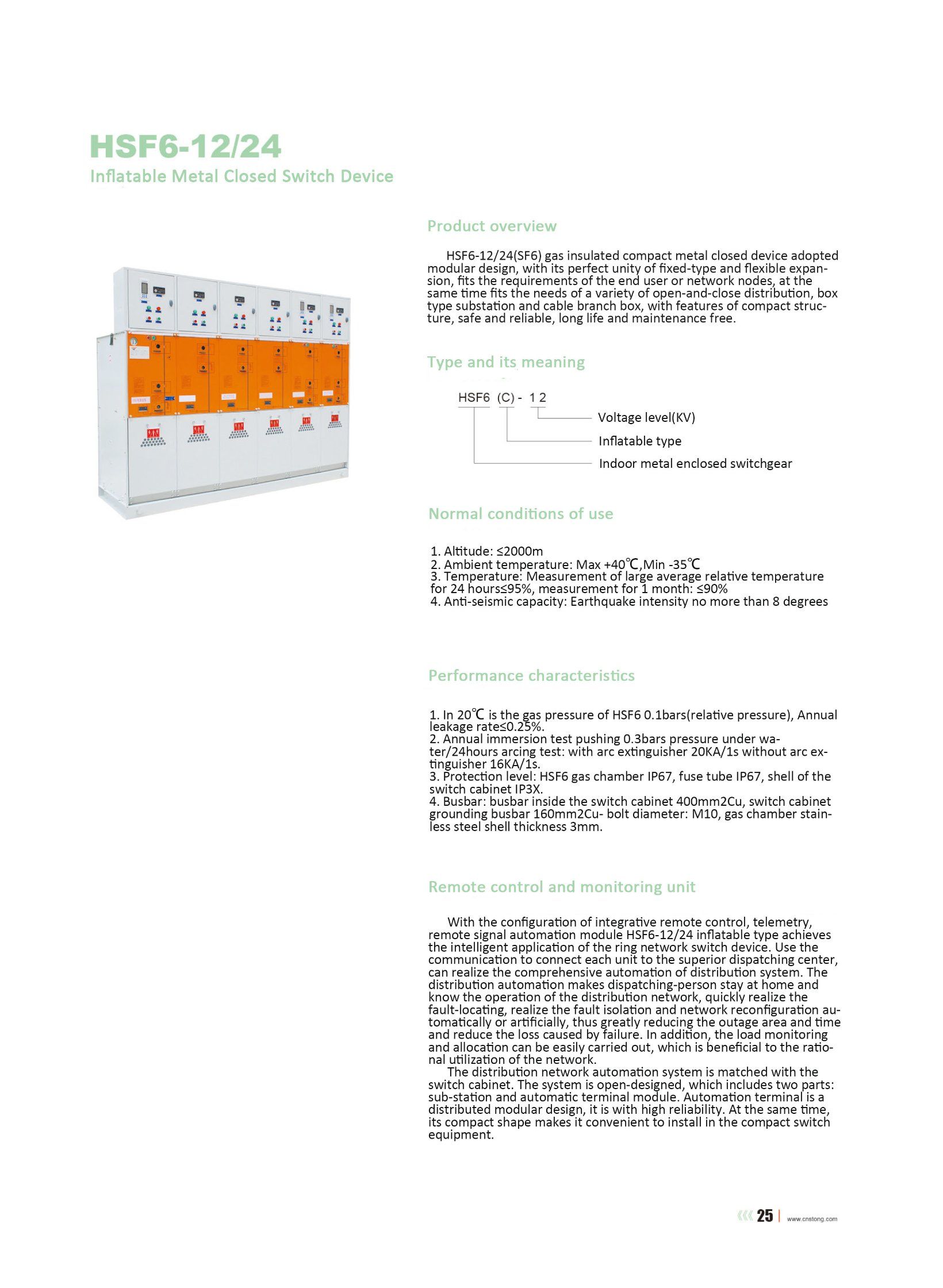

5.Factory Selling DirectlDescriptions:HSF6-12/24Inflatable Metal Closed Switch DeviceProduct overviewHSF6-12/24(SF6) gas insulated compact metal closed device adopted modular design, with its perfect unity of fixed-type and flexible expansion, fits the requirements of the end user or network nodes, at the same time fits the needs of a variety of open-and-close distribution, box type substation and cable branch box, with features of compact structure, safe and reliable, long life and maintenance free.
Type and its meaning HSF6 (C) - 12HSF6-Indoor metal enclosed switchgear
(C)- Inflatable type
12-voltage level(KV)
Normal conditions of use- Altitude: ≤2000m
- Ambient temperature: Max +40ºC,Min -35ºC
- Temperature: Measurement of large average relative temperature for 24 hours≤95%, measurement for 1 month: ≤90%
- Anti-seismic capacity: Earthquake intensity no more than 8 degrees
Performance characteristics- In 20ºC is the gas pressure of HSF6 0.1bars(relative pressure), Annual leakage rate≤0.25%.
- Annual immersion test pushing 0.3bars pressure under water/24hours arcing test: with arc extinguisher 20KA/1s without arc extinguisher 16KA/1s.
- Protection level: HSF6 gas chamber IP67, fuse tube IP67, shell of the switch cabinet IP3X.
- Busbar: busbar inside the switch cabinet 400mm2Cu, switch cabinet grounding busbar 160mm2Cu- bolt diameter: M10, gas chamber stainless steel shell thickness 3mm.
Remote control and monitoring unitWith the configuration of integrative remote control, telemetry, remote signal automation module HSF6-12/24 inflatable type achieves the intelligent application of the ring network switch device. Use the communication to connect each unit to the superior dispatching center, can realize the comprehensive automation of distribution system. The distribution automation makes dispatching-person stay at home and know the operation of the distribution network, quickly realize the fault-locating, realize the fault isolation and network reconfiguration automatically or artificially, thus greatly reducing the outage area and time and reduce the loss caused by failure. In addition, the load monitoring and allocation can be easily carried out, which is beneficial to the rational utilization of the network.
The distribution network automation system is matched with the switch cabinet. The system is open-designed, which includes two parts: sub-station and automatic terminal module. Automation terminal is a distributed modular design, it is with high reliability. At the same time, its compact shape makes it convenient to install in the compact switch equipment.
Standard function:
16 switch inputs (single remote signal), isolated voltage 1500VDC
4 voltage (1*24VDC,3*100VAC/220VAC)
C type dry contact, 250VAC8A/30VDC8A
8 analog inputs (telemetering), including 4 current (AC5A)
6 switch outputs (remote control, can be used for up to 3 switching points)
1 RS485 communication ports for remote communication, max distance is up to 1200m
Optional function:
Feeder P, Q, kWh, kVarh, F and other functions of the calculation of the current protection function, can be the role of the switch output or output communication.

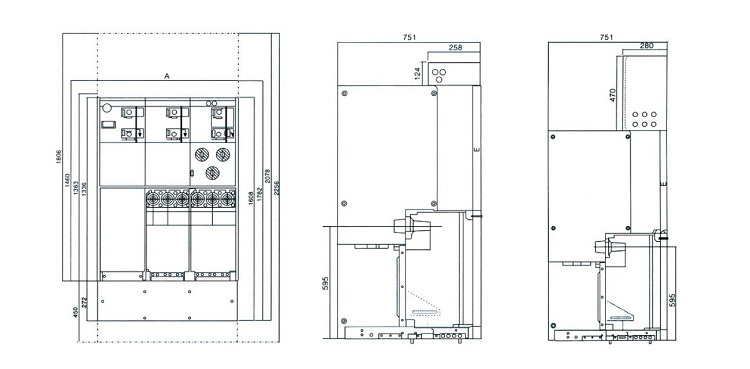

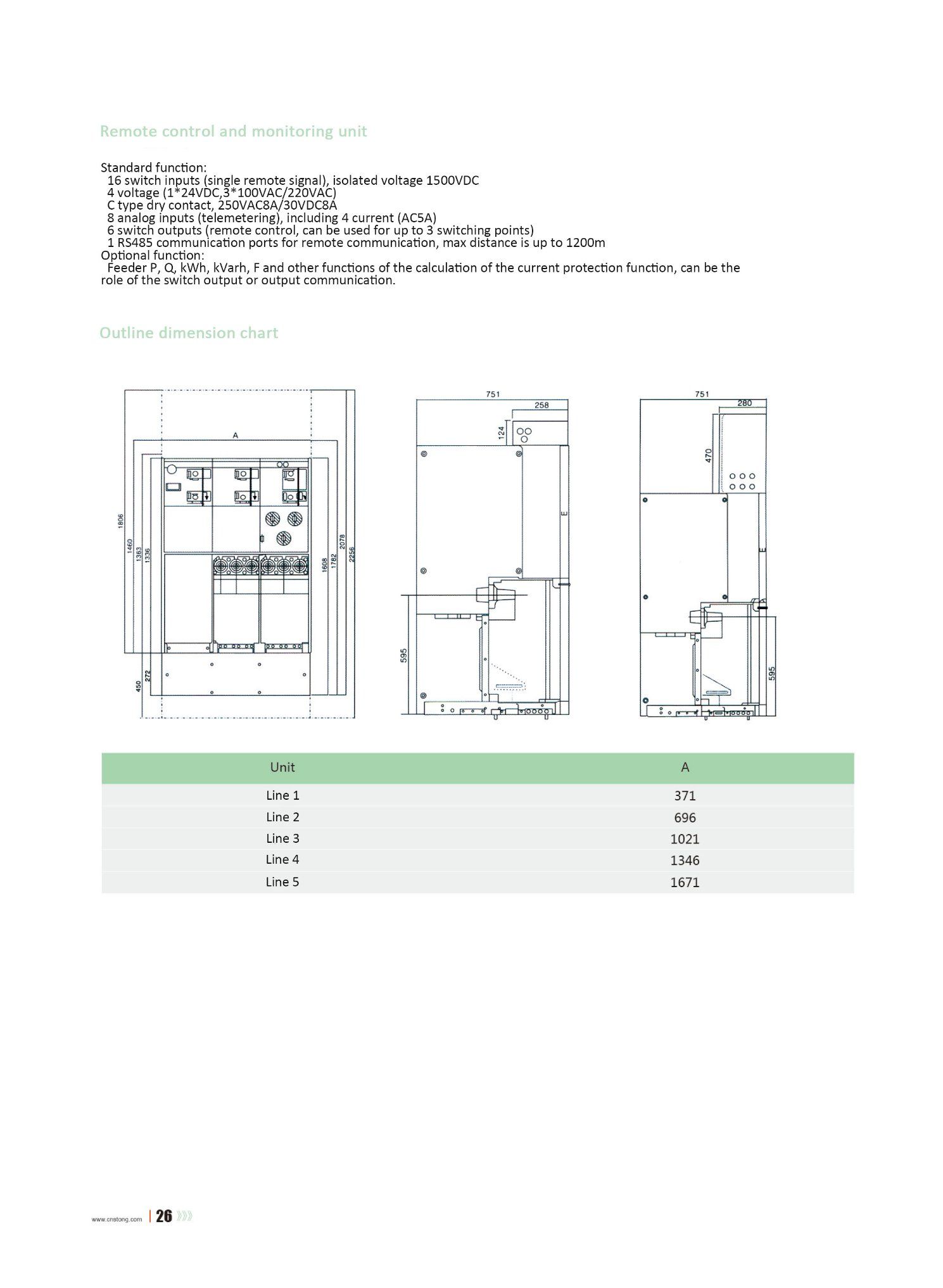

Outline dimension chart
| Unit | A |
| Line 1 | 371 |
| Line 2 | 696 |
| Line 3 | 1021 |
| Line 4 | 1346 |
| Line 5 | 1671 |
