Stong Te Type Crewel Tube Pre-Insulating Terminal

Name: Stong Te Type Crewel Tube Pre-Insulating Terminal
Brand: all-electronics-online.com
SKU: 715749942
Availability: InStock
Rating: 4.8 (95 reviews)

Price:	US $ 0.08-0.12/Piece
Min Order:	10000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	TE
Type:	Socket Terminals
Material:	Copper
Application:	Conduct Electricity
Brand:	Shentong

Product Description

Advantages:
1.Our Company Has Great Reputation In Domestic Market.
2.Good Quality Guaranteed With Reasonable Price.
3.OEM, ODM Are Welcomed.
4.Goods Will Be Delivered On Time.
5.Factory Selling Directly

Product Description:

Used field: Communication equipment, electronic instrument, meter, medical appliance, automobile, household appliances, electronic toy etc.

Margin temperature 105 Ui=300V Material Copper

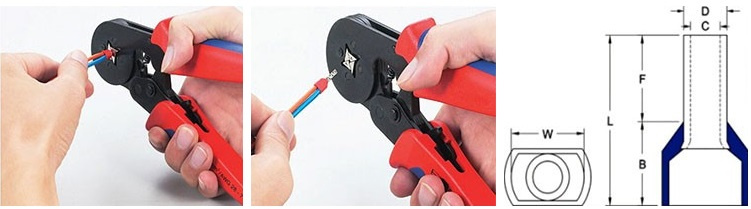

ITEM NO	CONDUCTOR	Dimension (mm)						Color
ITEM NO	CONDUCTOR	F	L	W	B	DΦ	CΦ	Germany	France
TE 0508	2 x 0.5	8	14.5	5	6.5	1.8	1.5	orange	white
TE 7508	2 x 0.75	8	14.7	5.5	6.7	2.1	1.8		blue
TE 7510	3 x 0.75	10	16.7	5.5	6.7	2.1	1.8	white	blue
TE 1008	2 x 1.0	8	15.1	5.5	7.1	2.3	2	yellow	red
TE 1010	2 x 1.0	10	17.1	5.5	7.1	2.3	2	yellow	red
TE 1508	2 x 1.5	8	15.5	6.4	7.2	2.6	2.3	red	black
TE 1512	2 x 1.5	12	19.5	6.4	7.2	2.6	2.3
TE 1513	2 x 1.5	13	20.5	6.4	7.2	2.6	2.3
TE 2508	2 x 2.5	8	16.5	8	8.5	3.3	2.9
TE 2510	2 x 2.5	10	18.5	8	8.5	3.3	2.9	blue	gray
TE 2513	2 x 2.5	13	21.5	8	8.5	3.3	2.9	blue	gray
TE 4012	2 x 4.0	12	23.1	8.8	11.1	4.2	3.8	orange	gray
TE 6014	2 x 6.0	14	26.1	9.5	12.1	5.3	4.9	green	black
TE 10 - 14	2 x 10.0	14	26.6	12.6	12	6.9	6.5	brown	ivory
TE 16 -14	2 x 16.0	14	31.3	19	17.3	8.7	8.3	ivory	gree

Packing:

Shentong Technology Co., Ltd. is an integrated professional power equipment manufacturing enterprise of science, industry and trade, which is located in Wenzhou, Zhejiang which is called "The city of electrical"in China. The current enterprise registration funds is one hundred million Yuan. Our company has throughed the ISO9001 international quality certification system. We are also the national power "two network transformation"recommended enterprise. Our company is specialized in the production of HV/LV Integrated Switchgears and switchgears' accessories, power station accessories, such as: Power Transformer, 10kv-40.5kv intelligent vacuum circuit breaker, epoxy resin casting insulators, wall bushing, contact box, earthing switch, load switch, 10kv-35kv current transformer, 10kv-35kv voltage transformer, low voltage current transformers, solenoids, SF6 load switch, high voltage metering box and other electric components. Chinese professional terminal manufacture, Chinese vcb manufacture, electrical manufacture, switchgear manufacture, Chinese CT PT manufacture

Our company has a group of senior technical production staff. The company adopts modern production and management modes. With high quality products and perfect after sale Service, we got good reputation from customers. The products are widely used in aerospace, metallurgy, petrochemical, port, municipal and other industries.

We not only provide customers with excellent quality products, but also strive to use our years of professional experience to provide customers with the best solutions and characteristics of personalized services.

Product Advantages: Well and High Quality Control, Prompt Delivery, New Product, Customer's Design and Logo are Welcome, Competitive Prices, Earth-friendly Products, Small Order Acceptable, ODM Accepted, OEM Accepted,
