| Prod Model: |
STP 6V5000A |
| Output Voltage: |
0~6V |
| Output Current: |
0~5000A |
| Circuit Mode: |
Constant Voltage / Constant Current |
| Output Setting: |
10-Turn Potentiometer |
| Output Display: |
LED or LCD |
| Protection: |
Ov, Oc, Oh, Lack Phase, Short |
| Remote Control: |
0~10V / 4~20mA Analog Signal Control / PLC / RS Po |
| Cooling Method: |
Forced-Air Cooling / Water Cooling |
| Color: |
Ral7035 |
| Application: |
Elelctroplating, Mao, Anodizing, Heating |
| Output Type: |
Single |
| Warranty: |
1 Year |
| Input Voltage: |
380V |
| Connection Mode: |
Parallel Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Voltage Regulating Mode: |
Width Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Output Power: |
30kw |
| Brand: |
Idealtek |
Product Description

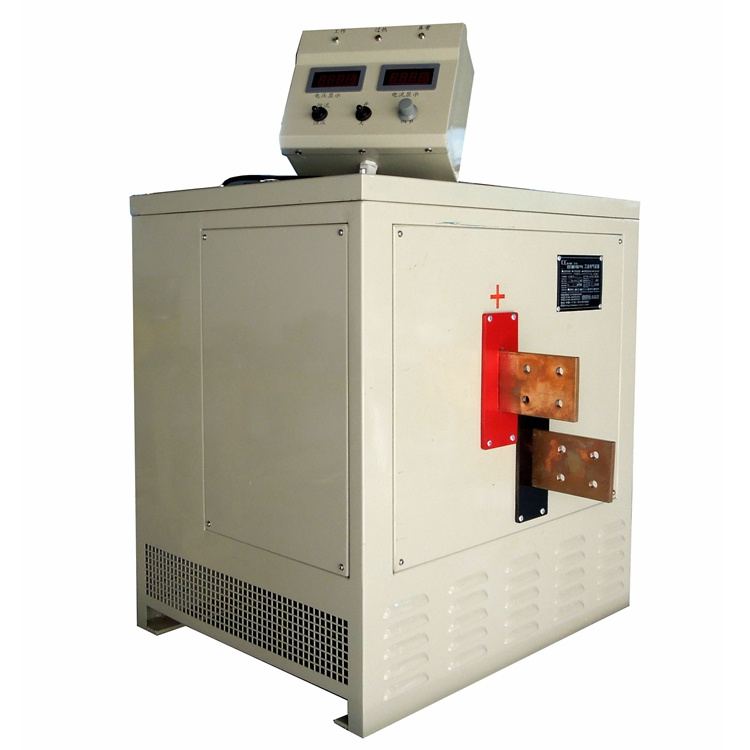

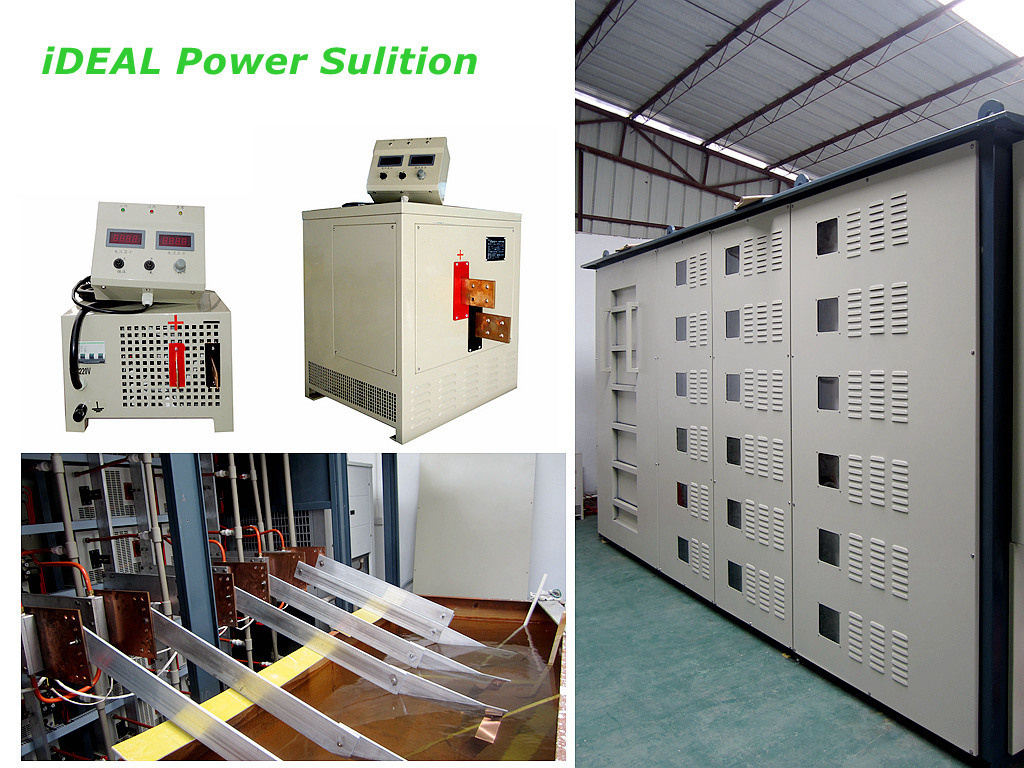

STP Series Electroplating DC Power Supply 6V5000A
STP 6V5000A
Brief IntroductionSTP Series Power Supply is specially designed for electroplating process of various kinds of metal, such as zinc, copper, tin and gold etc.
It has high frequency transformer, rectifer and PWM technology to ensure stable low output voltage and high output current for electroplating needs, it is featured for good reliability, high efficiency, small size and various control methods, it also could be used for other application like oxidation, water treatment and anodizing etc.Features1. Advanced soft-switching technology and multi-loop control adopted to ensure output precision & stability.
2. High-power isolated gate bipolar IGBT & Nano scale material high frequency transformer adopted.
3. Output voltage & current separately adjustable.
4. CC voltage-limit / CV current-limit working modes, manual-switchable.
5. High efficiency, full protection functions, like lack phase, over voltage, lack voltage, short-circuit, over current and over heat protection
6. Small size & Low weight
7. Optional functions:
a. DSP control, analog control.
b. N+1 redundant system for high-power application and convenient maintenance
c. Pulsing output
d. Polarity reverse function
e. Output timingApplications1. Electroplating
2. Electrolysis
3. Oxidation
4. Heating
5. Water treatmentGeneral Technical Specification| 1. Input voltage (V) | Tri-phase 380Vac±10%, 50/60Hz or tri-phase 415Vac, 50/60Hz | | 2. Output voltage | 0 ~ 6V (continuously adjustable) | | 3. Output current | 0 ~ 5000A (continuously adjustable) | | 4. Output power | 30KW | | 5. Control mode | PWM | | 6. Working mode | CC voltage-limit / CV current-limit working modes, manual switchable. | | 7. CV (constant voltage) accuracy | ≤±1% | | 8. CC (constant current) accuracy | ≤±1% | | 9. Overall efficiency | ≥90% | | 10. Power factor | ≥0.95 | | 11. Output display | LED digital display | | 12. Regulation range | Voltage/current 0 ~ 100% rated value continuously adjustable | | 13. Cooling method | Forced air cooling or water cooling or oil cooling (as per requirements) | | 14. Protection function | Input over voltage, lack voltage, lack phase, over current protections.
Output short, over heat and IGBT self-lock protections | | 15. Control mode | 10-turn potentiometer & remote control box (3m long)
LCD touch screen (optional) | | 16. Over heat protection threshold value | 65~85ºC (overall) | | 17. Working mode | Withstand long-term continuously working at full load | | 18. Indication | Working: LED (GREEN), Over heat: LED (YELLOW), Fault: LED (RED) | | 19. Display mode | Output voltage, current display
Working, over heat & fault indication | | 20. Environment | Temperature: -0ºC ~ 40ºC
Humidity: 15%~90%
Height: ≤1500m
No flammable, corrosive object, no vibration & explosion | | 21. Remote control (optional) | 0~10V, 4~20mA analog signal control.
RS232 or RS485 communication port. | | 22. Size | Depends on output | | 23. Other optional functions | Pulsing output (a s per requirements)
Polarity reverse function (as per requirements)
Output timing (as per requirements) |
|
Custom-made requirements acceptable.N+1 redundant system description (500V250A example) A. Advanced current mode control & N+1 power redundant design adopted for whole power system, this control mode gives good current-sharing effects, low deviation and high CC/CV precision.
B. This power supply adopts N+1 redundancy system; the power cabinet has five units inside
Total rated power is 500V250A, rated power of every unit is 500V62.5A, each power unit has 62.5A rated output current.
Taking redundant into account, total real output power is 500V312A, real output power could reach 156KW which has 125% over-loading ability, total efficiency will be no less than 90%.
C. Fault of any-one unit would not impact the whole power supply; the other power units would compensate power loss and keeps output capacity.

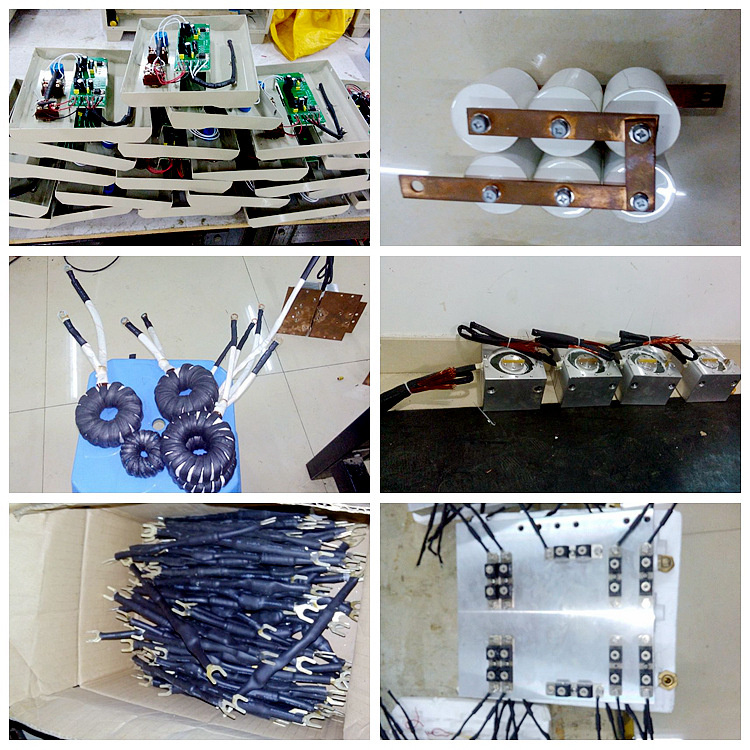

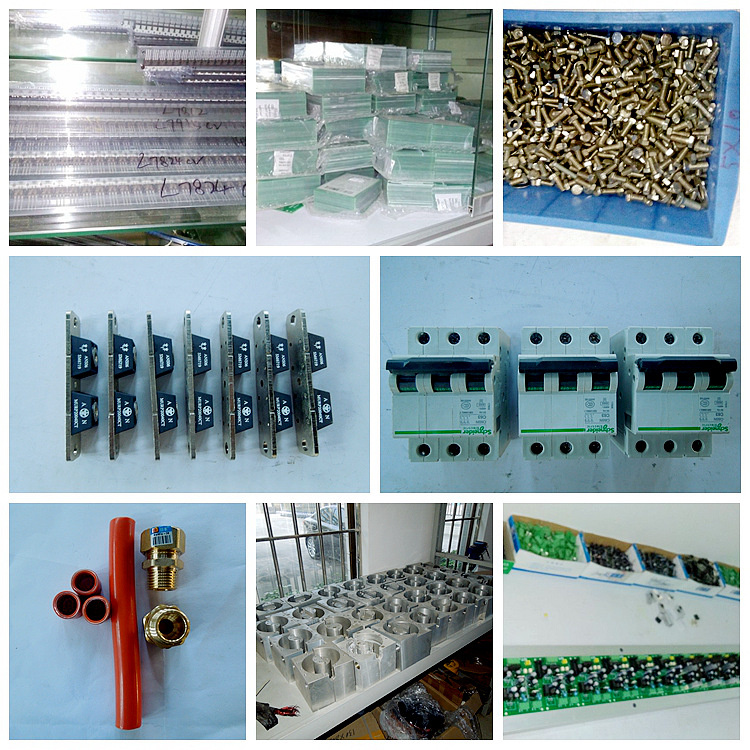

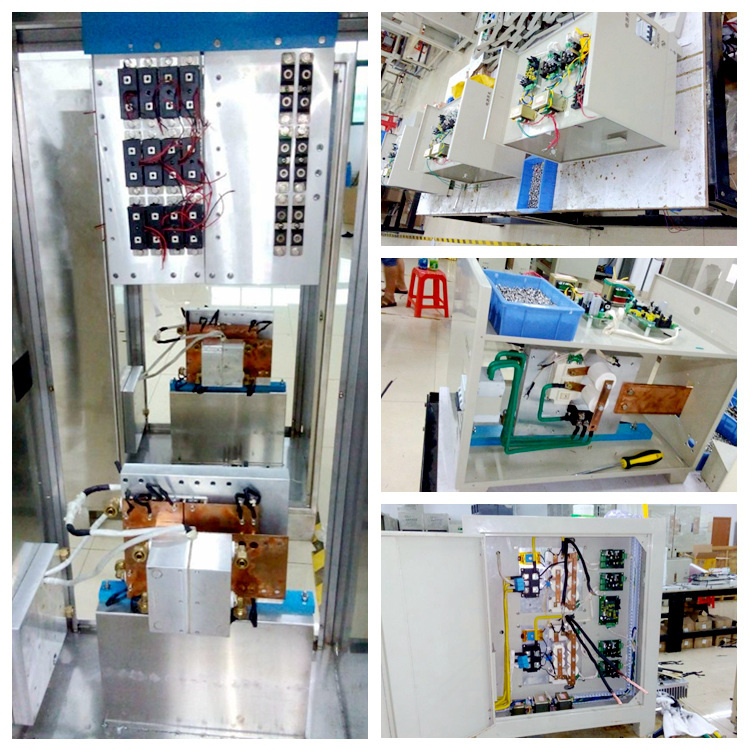

D. You could repair & replace the faulty unit without power absence, you could continue with the remaining power units.Main Components & Advantages 1. IGBT: Infineon (the original Siemens) IGBT module.
2. Three-phase bridge rectifier: SANREX bridge rectifier.
3. Main Transformer:High-frequency Nano crystalline transformer. The transformer is a case type structure. This case is not only the protective layer, but also the output of the transformer, and it also can provide cooling water channel. Another advantage is its large conductive area, small heat. Because the transformer adopts the novel structure, the conformity of production produced is high; it is especially suitable for high power supply manufacturing.
4. Output rectifier diodes: AN (original Motorola) Schottky.
5. Heat sink: Good quality aluminum panel, thickness up to 42mm
6. Output copper bar: 99.9% non-oxidation red copper, designed flow ability beyond 2.5A/m2
7. Cooling water pipe: RIFENG aluminum plastics compound pipe
8. Breaker: Schneider air circuit-breaker
9. Allowance: suitable power allowance for long-term continuously working.
10. Cabinet: 2cm thick good cold-rolled sheet with powder coating for cabinet making, protection degree reaches industrial IP56 degree.
Maintenance 1. Check whether the bolts or moisture loosen regularly
2. Check whether water leakage at pipe connection regularly
3. Check whether any leaking of water pipe connection regularly.
4. Regularly open the box side plate, cleaning dust inside.
5. Regularly with clip-on ammeter check three-phase input current that it is abnormal and serious drift phenomenon, if abnormal, contact the supplier in time.

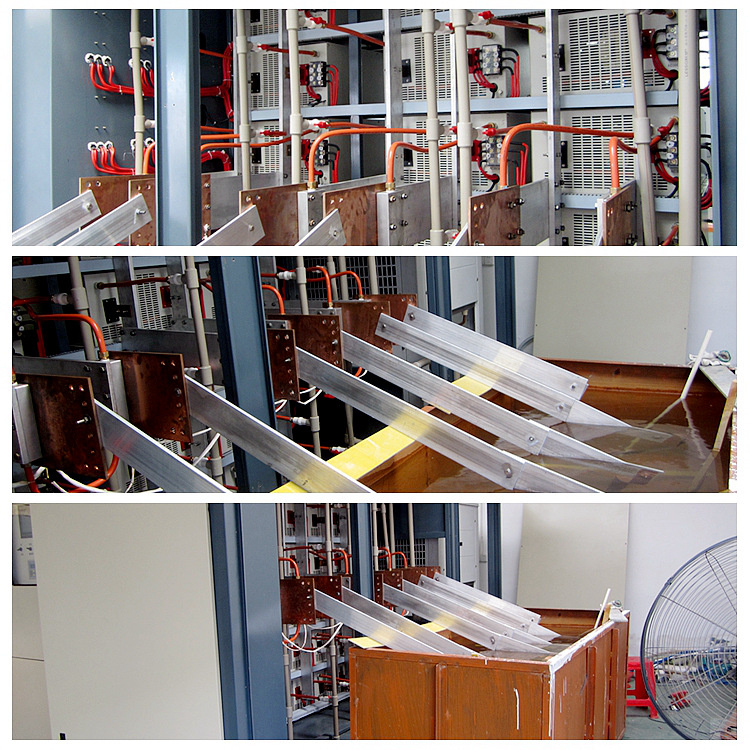

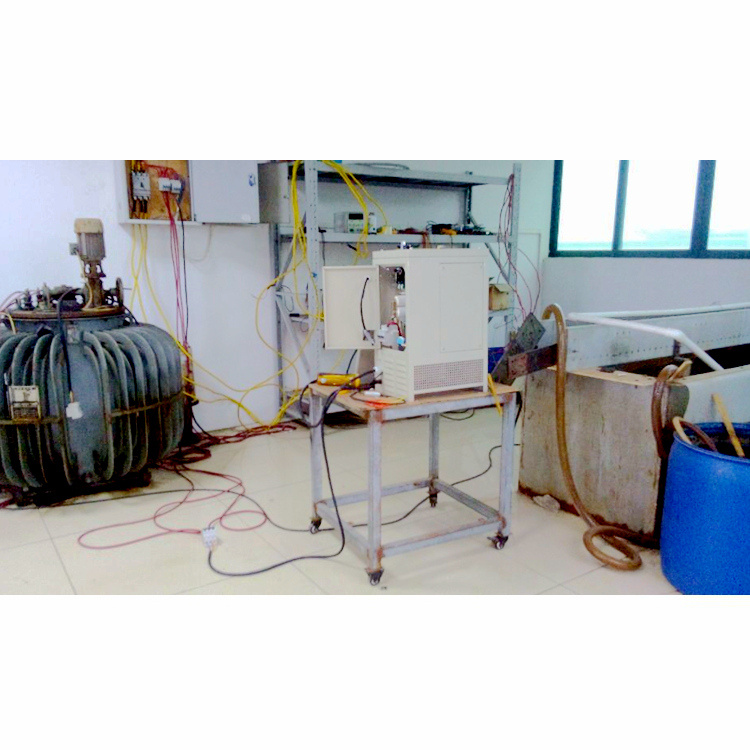

6. Specially assigned person for equipment maintenance.Application case
StoragePay attention to the following points during temporary & long-term storage.
1. Store the power supply in our packing box
2. Long-term storage would lead to electrolytic capacitor degradation, it should be powered up yearly, at least 5 hours power-on time, input voltage should be increased to rated value by voltage regulator. Warranty1. The warranty period of this product is 12 months, free repair within warranty period except for man‐made damages or irresistible forces.
The following cases during under warranty are not included in free-warranty scope:
(1). Incorrect operation & maintenance of the power source that cause fault.
(2). Natural loss of consumable material (shell, connector etc.)
(3). Manual damage caused by modification or dismantle
(4). Damage caused by external equipments or third-party product or plug-in units.
(5). Force majeure factors, such as fire, flood or input grid abnormal.
(6). Unilateral amendment or modification on our LOGO or part number.
(7). Fault caused by abnormal usage of power source.
(8). Other non-product quality causes
2. Reasonable maintenance & repair costs should be charged after warranty period.
