Wenzhou Huaya Electric Co., Ltd. >> Straight Blade Power Receptacle 50A 125/250V

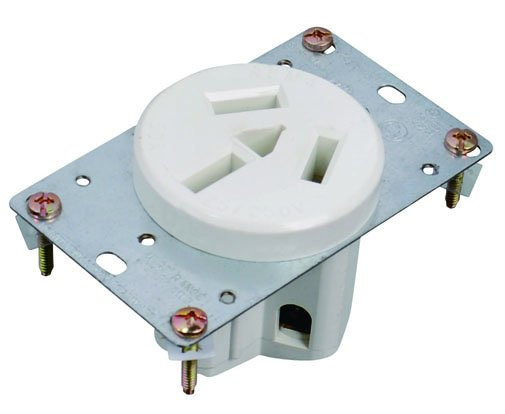

Straight Blade Power Receptacle 50A 125/250V

Straight Blade Power Receptacle 50A 125/250V
Price: US $ 1.2-1.5/Piece
Min Order: 3000/Piece
Pay Type: L/C,T/T
Prod Model: LD-3201
Grounding: Self Grounding
Type: Without Switch
Application: Residential/General-Purpose
IP Rating: IP22
Rated Current: 15A
Shell Material: PC
Brand: Huaya
Certification: UL/cUL
Number Of Holes: 6

Product Description

 Description: 50 Amp, 125/250 Volt, NEMA 10-50R, Flush Mounting Receptacle, Industrial Grade
· Color: WHITE/ Black
· Rating: 50A, 125/250VAC
· NEMA: 10-50R
· Pole: 3
· Wire: 3
· Dielectric Voltage: Withstands 2000V per UL498
· Face Material: Thermoplastic PC
· Body Material: Thermoplastic PC

CODE COMPLIANCE
· UL 498 comply
· ROHS comply

MATERIAL CHARACTERISTICS
· Environmental: Flammability, UL-94, Rated V0
· Operating Temperature: -40° F to 149° F (-40° C to 65° C)

FEATURES
· Terminal screws accept up to No. 12 AWG copper or copper-clad wire
· Quickwire push-in terminals accept No. 14 AWG solid copper wire only
· Double-wipe power contacts for reliable conductivity and plug retention
· Impact resistant thermoplastic construction
· Heavy-gauge, rust resistant steel mounting strap
· Double-wipe ground contacts ensure long-term ground retention
· Tri-Drive ground, terminal and mounting screws ease installation
· Captive mounting screws
· Limited Two-Year Warranty











Wenzhou Huaya Electric Co., Ltd. specializes in the manufacturing in Switches, GFCI, Receptacle, Dimmers, Datacom Jacks, Water proof Cover, Device Boxes, kinds of Wallplates, Night Lights and so on, gathering lots of profession engineer and administers. From establishing we regard product quality as the lifeline of the enterprise developing and the quality policy of "guaranteed product quality is taken as the foundation and demands from clients as the base" has been insistently followed. We have been got both ISO9001(2000) certifications and UL/cUL approvals. Each of the functional departments carries out the standard management with a computerized network system and imported production technologies and equipments are applied, therefore the products are always in the leading rank among in the same field.

The Co. holds rich production experiences, good group spirits, good work team, strong technical force and excellent quality control system. LEOD Electric features well-known, unique, excellent, brand-new and full varieties and is well sold to USA, Canada, nations in southeast Asia etc., greatly favored and evaluated by the businessmen thereof and enjoying a high reputation.

Since China gets into WTO, the Co. has not only optimized the production structure, but also paid much attention to the enhancement of the staff's quality. Taking people as the base and prospering enterprise with science and technique, as only highly qualified staff can make high product and provide excellent services. Our target is to make the best quality product for serving consumer and our aim of service is to guarantee the quality to let partner have confidence.
