| Prod Model: |
DOSIN-801-0139 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Business Type: |
OEM&ODM |
| Certification: |
ISO 9001:2008 |
| Lead Time: |
7-10 Days |
| Type: |
Generally Coaxial Connector |
| Coupling Mechanism: |
Double Bayonet Plug-in |
| Brand: |
Doin |
Product Description

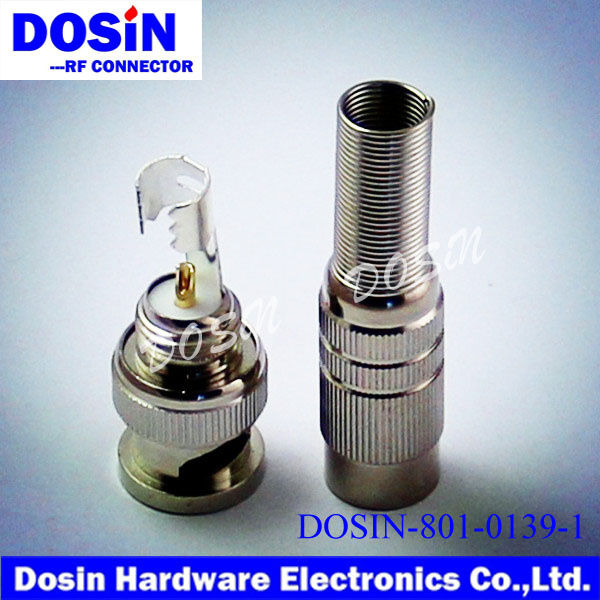

Hot sell BNC connetors for electronic:
BNC series are one kind of cards of thing the mouth join the radio frequency coaxial connection device.It joins rapidly,keeps in touch with the characteristic such as being reliable,applys to the radio equipment and electron tube instrument field and joins the coaxial cable of the radio frequency extensively.
BNC Connector Applications:
Antennas |
Automotive |
Base Stations |
Broadcast(75Ω) |
Cable Assemblies |
Cable Modems |
Components |
Computers/LANs |
Instrumentation |
Oscilloscopes |
Medical Equipment |
Mil-Aero |
Radios |
Satcom |
Surge Protection |
Telecom |
|
|
BNC Connector Features and Benefits:
Bayonet coupling mechanism provides quick mating and unmating |
50 Ω and 75 Ω impedance designs allow customers to match impedance to system requirements |
50 Ω and 75 Ω connectors are intermateable to ensure non-destructive mating |
Three grades of connectors are available for military, industrial and commercial applications |
BNC Connector Specifications:
Electrical |
Impedance |
50/75 Ω nominal |
Frequency Range |
0-4 GHz with low reflection |
Voltage Rating |
500 volts peak |
Dielectric Withstanding Voltage |
1,500 volts rms |
VSWR |
M39012 straight connectors: 1.3 max 0-4 GHz
M39012 right angle connectors: 1.35 max 0-4 GHz |
MIL-C-39012 Contact Resistance |
Center contact: 1.5 mΩ; Outer contact: 0.2 mΩ |
MIL-C-39012 Insulation Resistance |
5,000 MΩ |
MIL-C 39012 Braid to Body |
0.1 milliohm |
MIL-C-39012 RF Leakage |
-55 dB min at 3 GHz |
MIL-C-39012 Insertion Loss |
0.2 dB min at 3 GHz |
Mechanical |
Mating |
2-stud bayonet coupling per M39012 |
Braid/Jacket Cable Affixment |
All crimps are hex braid; clamps are screw-thread net and braid clamp |
Center Conductor Cable Affixment |
Crimps are crimp or solder; all other are solder only |
Captivated Contacts |
All crimps unless specified otherwise |
Cable Retention |
Crimps: 20-100 lbs; All others: 30-70 lbs |
Material |
Male Contact |
Brass |
Female Contact |
Beryllium copper or phosphorous bronze, silver or gold-plated |
Other Metal Parts |
Brass, nickel finish; M39012 is silver finish |
Insulator |
TFE, copolymer of styrene, glass-TFE (hermetically sealed) |
Crimp Ferrule |
Copper/brass |
Environmental |
Temperature Range |
TFE insulators: - 65°C to + 165 °C
Copolymer of Styrene: - 55°C to + 85°C |
Weatherproof |
Clamps with clamp gaskets; crimps with heat-shrink tubing |
Hermetic Seals |
Pass helium leak test of 2x10 -8 cc/second |
Shock |
MIL-STD-202 method 202 |
Vibration |
MIL-STD-202 method 202, test condition D |
Moisture Resistance |
MIL-STD-202 method 106 |
Corrosion |
MIL-STD-202 method 101, test condition B |
Temperature Cycling |
MIL-STD-202 method 102, test condition D |
Altitude |
MIL-STD-202 method 105, test condition C |
Military |
MIL-C-39012 |
Where applicable |
Note: These characteristics are typical but may not apply to all connectors.
Packaging & Shipping
Packaging:1.100 pcs in box,1000pcs in CTN. 2.Or according as your request or standard packing .3. Neutral or customized packing also accepted
Shipping: We offer as many shipping options as possible.including DHL,UPS.TNT,Fedex and EMS.
