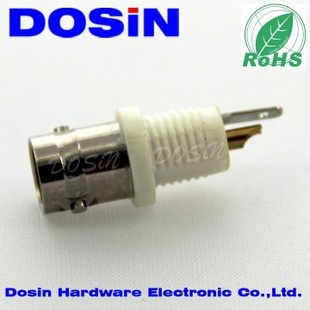

Straight BNC Female White Plastic Coaxial Connector

Name: Straight BNC Female White Plastic Coaxial Connector
Brand: all-electronics-online.com
SKU: 746907665
Availability: InStock
Rating: 4.9 (110 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	Dosin-801-0153
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Business Type:	Manufacturer
Impedance:	50 Ohm &75 Ohm
Body:	Zinc Alloy/Brass
Contact:	Phosphor Bronze
Plating:	Nickel
Standard:	RoHS Compliant
Warranty:	12 Months
Type:	Generally Coaxial Connector
Coupling Mechanism:	Double Bayonet Plug-in

Product Description

TECHNICAL CHARACTERISTICS
Temp. Range: -65~+165° C (PE Cable -40~+85° C)
Vibration: MIL-STD-202, Method 213
Impedance: 50Ω , 75Ω
Frequency Range: DC~4GHz
Working Voltage: 500V max ()
Withstand Voltage: 1500V rms ()
Contact resistance Center Contact ≤ 1.5 mΩ
Outer Contact ≤ 1 mΩ
Insulation resistance ≥ 5000 MΩ
VSWR Straight ≤ 1.22
Right angle ≤ 1.30
Durability(mating) ≥ 500(cycles)

MATERIAL & PLATING
Shell: Brass nickel plated
Contact pin: Brass gold or silver plated
Socket: Beryllium gold or silver plated
Elastic contact: Beryllium gold or silver plated
Insulator: PTFE
Crimping suite: Copper alloy nickel plated
O-ring sealing: 6146 silastic
APPLICABLE STANDARD MIL-C-39012; CECC 22120; IEC 60169-8.

Features:

Well and High Quality Control,
Prompt Delivery,
New Product,
Customer's Design and Logo are Welcome,
Competitive Prices,
Earth-friendly Products,
In a Variety of Design,
Small Order Acceptable,

Delivery time: 7-10 days after payment

The usages of this products:

Antennas
Base Stations
Broadcast
Cable Assemblies
Components Computers
Oscilloscopes
Medical Equipment
Mil-Aero

Package detail:

1, commonly 100pcs in a tray, then 1000pcs packed in a box
2, Private packing and label service are available as per your requirement

RENHOTEC GROUP, established in May of 2005, specializes in operating businesses of precise Board to Board, Wire-to-board connectors, Solar photoelectric connectors, RF coaxial connectors, Industrial Terminal blocks and cable assemblies for computer & peripheral devices.After 10 years of rapid development, it owns two factories at present:Dongguan RENHOTEC Hardware Electronics Co., Ltd and Hubei RENHOTEC hardware Electronics Co., Ltd.Since its foundation, the company sticks to the principle of specialization and tries its best to supply customers with products of high quality at competitive prices, regarding the development and design of metal and plastic molds, precision high-speed punch molding, precision die casting molding, zinc (aluminum) die casting, precise plastic injection molding and automatic assembly with the support of a skilled R&D and management team.

Since company foundation of the, we emphasize canonical management and high-quality requirements.We has already acquired ISO9001, ISO14001, QC080000 and TS16949 international quality, environment and management systems certification.The company main ten series products obtained American UL & cUL certification, with the No.E248993, the solar connector components acquired Germany TUV certification, All items are in line with EU RoHS and REACH environmental requirements.

Our quality policies:Innovation and development, continual improvement, quality foremost, and customer satisfaction.

Our environmental policies:Stand to environmental protection laws and regulations, devote to pollution treatment and environmental protection, reasonably allocate and utilize resources, manufacture green products, strengthen environmental protection awareness, and ceaselessly improve environment.

Our managing principles:Good quality, loyalty and common prosperity.
