| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Conductor: |
Bc/CCS (Optional) |
| Body: |
Brass |
| Brand Name: |
Renhotec |
| Connector Type: |
TNC Connector |
| Business Type: |
Manufacture |
| Pin Contact: |
Brass |
| Place Of Origin: |
Guangdong.China |
| Used: |
Computer |
| Plated: |
Brass |
| Insulator: |
Customized |
| Application: |
Multimedia |
| Type: |
Coaxial |
| Connector: |
HDMI |
| Certification: |
ISO9001 |
| Color: |
Optional |
Product Description

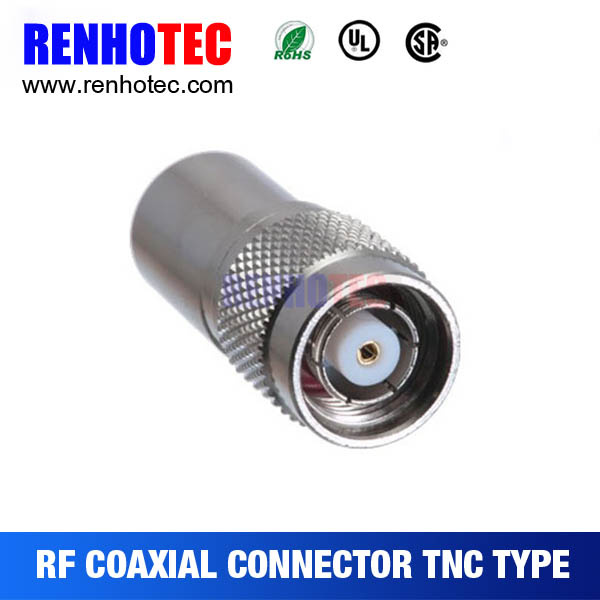

Identical to the BNC design, but have a threaded connector.Operates better than the BNC connector at microwave frequencies.TNC are miniature, threaded weatherproof units with a constant 50Ω impedance and operate from DC to 11 GHz.Widely used in WiFi equipment, radar, and military/aerospace systems.
Renhotec offers many types of TNC connectors.PCB mount F female connector/ TNC male cable connector/Flange chassis mount TNC connectors/ Straight right angle TNC connector/ Crimp solder TNC connector,etc.If you can't find the exact model you need, please don't hesitate to contact us!
| Major Technical Characteristics |
| Temperature Range | -55 degree to +155 dregree |
| Vibration | 100m/S2 (10 to 2000 Hz), 15G |
| Impendance | 50ohm |
| Frenquency Range | DC-11GHZ |
| Working Voltage | 500V r.M.S at sea level |
| Workstandinging Voltage | 1500V r.M.S at sea level |
| Center Contact Resistance | ≤10Mohm |
| Outer Contact Resistance | ≤2.5Mohm |
| Insulation Resistance | ≥5000Mohm |
| Center conductor Retention Force | ≤0.57N |
| Insertion Loss | ≤0.20dB/3GHz |
| VoltaggeStanding Wave Ratio : |
| Straight | ≤1.22/3GHz |
| Right Angle | ≤1.30/3GHz |
| Dutability (Mating) | ≤500(cycles) |
| Materials |
| Body | Brass..........................Nickel |
| Contact Plating | Brass.........................Gold |
| Insulator | Teflon |
| Nut | Brass.........................Nickel |
| Washer | Brass.............................Nickel |
| Suitable cable |
| RG6, RG58, RG59, RG174, RG179, RG316.(More Option, please contact US) |
Specifications:
1.Precision fiber optic connector for maximum signal tranfer and low signal
Reflection.
2.Specially optimized low-loss optical fiber for higher fiderlity.
3.Molding ensures error-free transmissions.
4.Cable length:1m, 2m, 3m, etc.We can make it according to customers
Requirement.
5.OD=4.2mm, 5.0mm, 6.0mm optiona
Featrues:
1.Toslink to Toslink audio.
2.Enjoy movies with Dolby Digtal and DTS surround sound on your laptop or any
Other device with a mini toslink port.
3.Provide the most reliable audio signal transfer.
4.Discounted wholesale cost for high quality materials.
5.One year manufacture warranty.
6.Free to electromagnetic interference.
7.Easy assembly and insltallation.
Applications:
Audio, DVD, Amplifier, Speaker, Game, HUB, Digital VCR, CATV, Computer
APPLICABLE STANDARD
MIL=C-39012
CECC 22210
IEC 60169-16
