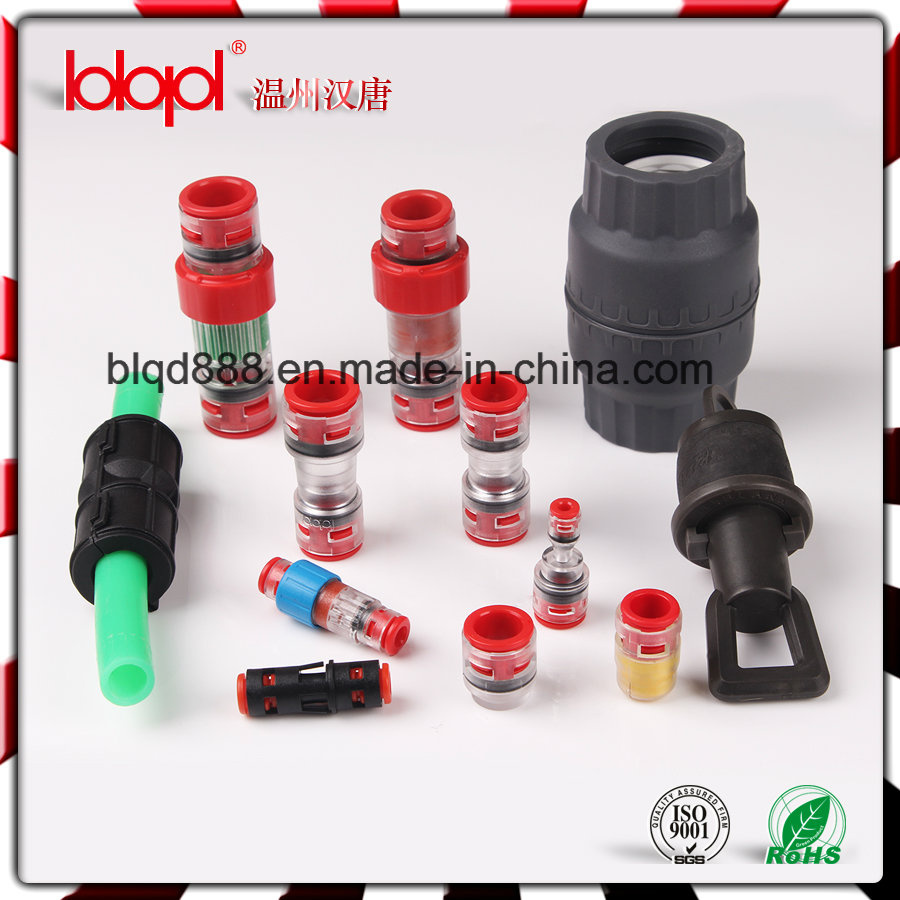

Straight Coupler and End Plug 14/10mm

Name: Straight Coupler and End Plug 14/10mm
Brand: all-electronics-online.com
SKU: 782882555
Availability: InStock
Rating: 4.5 (134 reviews)

Price:	US $ 0.441-0.501/Piece
Trade Terms:	FOB,DAP
Min Order:	200/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	STR
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Red Color:	3mm~16mm
Transmission Medium:	Multimode
Structure:	FC
Number Of Cores:	Multi-Core
Ferrule Endface:	PC(',UPC)
Brand:	Blqd

Product Description

Straight Connectors, MICRO COUPLING STRAIGHT connectors
About MicroDuct Accessories

Microduct Couplers and End Stops are of a quick connect design, with pull ring release and a clear barrel for viewing. The clear barrel allows for visual inspection to determine if the duct ends are properly seated in the coupler during installation, or if the cable has passed through the coupler during the installation phase.
System Benefits
Installation time reduced.
Locking clips available in order to prevent microducts accidental disconnection.
Transparent body allows inspection of correct installation of the cable.
Anti shock cover available in order to prevent damages. It's special design allow inspection of correct installation of the cable also when installed. Locking clip function included.

Technical Specifications

Fittings Accessories:
Body:           Transparent PA                            Locking clip:    POM
Cartridge:    Nickel plated brass                     Anti shock cover: PP
Collect:        Black POM
Seals:          NBR
Lock claws: Stainless steel

Performance
Temperature:
Working temperature: -15°C ~ +45°C
Pressure:
Working pressure: 15 bar
Burst pressure: >45 bar

Specification:

No.	Description	Model No.	For Tube OD(mm)
1	3mm Straight Connector	STR03	3-3
2	4mm Straight Connector	STR04	4-4
3	5mm Straight Connector	STR05	5-5
4	6mm Straight Connector	STR06	6-6
5	7mm Straight Connector	STR07	7-7
6	8mm Straight Connector	STR08	8-8
7	10mm Straight Connector	STR10	10-10
8	12mm Straight Connector	STR12	12-12
9	14mm Straight Connector	STR14	14-14
10	16mm Straight Connector	STR16	16-16

Packaging & Shipping
