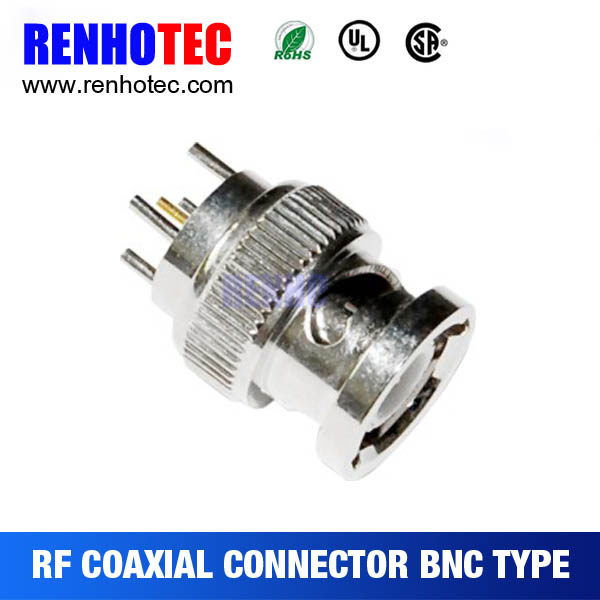

Straight Panel Mount Male Connector BNC

Name: Straight Panel Mount Male Connector BNC
Brand: all-electronics-online.com
SKU: 748090895
Availability: InStock
Rating: 4.9 (110 reviews)

Price:	US $ 0.36-0.68/Piece
Trade Terms:	FOB,EXW
Min Order:	1000/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	RHT-610
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Business Type:	Manufacturer
Connector Type:	BNC Connector
Impedance:	50 Ohm &75 Ohm
Orientation:	180 Degree
Frequency Range:	DC-4GHz
Body Material:	Brass/Zinc Alloy
Warranty:	12 Months
Lead Time:	7-10 Days

Product Description

BNC Series are bayonet-coupling popular coaxial connectors. Which have the excellent performances of rapid connect/disconnect, high reliability, are used to connect RF coaxial cables in electrical and electronic equipments and instruments.

Material and finish:

Shell	Zinc alloy gold plated
Contact pin	Brass gold plated
Socket	Beryllium gold plated
Elastic contact	Beryllium gold plated
Insulator	PTFE
Crimp ferrule	Copper alloy nickel or gold plated
O-ring sealing	silcon Rubber

Major technical chracterstics:
Impedance: 50/75 Ω Nominal
Frequency Range; 0-4 GHz with low reflection
Voltage Rating: 500 volts peak
Dielectric Withstanding Voltage: 1, 500 volts rms
VSWR: M39012 straight connectors: 1.3 max 0-4 GHz
M39012 right angle connectors: 1.35 max 0-4 GHz
MIL-C-39012 Contact ResistanceCenter contact: 1.5 mΩ ; Outer contact: 0.2 mΩ
MIL-C-39012 Insulation Resistance: 5, 000 MΩ

1.100% tested before delivery.
2. Guarantee the prompt delivery. The stocked goods will be delivered within 3 days and the customized products will be delivered as arranged date.
3. We are glad to makes samples according to our customers'drawing, specifications and samples.
4. OEM is available.
5. Free to contact us, we can offer you the best service, top-quality goods, competitive price and timely delivery.
6. ISO9001: 2008 certified and RHOS compliant

RENHOTEC GROUP, established in May of 2005, specializes in operating businesses of precise Board to Board, Wire-to-board connectors, Solar photoelectric connectors, RF coaxial connectors, Industrial Terminal blocks and cable assemblies for computer & peripheral devices.After 10 years of rapid development, it owns two factories at present:Dongguan RENHOTEC Hardware Electronics Co., Ltd and Hubei RENHOTEC hardware Electronics Co., Ltd.Since its foundation, the company sticks to the principle of specialization and tries its best to supply customers with products of high quality at competitive prices, regarding the development and design of metal and plastic molds, precision high-speed punch molding, precision die casting molding, zinc (aluminum) die casting, precise plastic injection molding and automatic assembly with the support of a skilled R&D and management team.

Since company foundation of the, we emphasize canonical management and high-quality requirements.We has already acquired ISO9001, ISO14001, QC080000 and TS16949 international quality, environment and management systems certification.The company main ten series products obtained American UL & cUL certification, with the No.E248993, the solar connector components acquired Germany TUV certification, All items are in line with EU RoHS and REACH environmental requirements.

Our quality policies:Innovation and development, continual improvement, quality foremost, and customer satisfaction.

Our environmental policies:Stand to environmental protection laws and regulations, devote to pollution treatment and environmental protection, reasonably allocate and utilize resources, manufacture green products, strengthen environmental protection awareness, and ceaselessly improve environment.

Our managing principles:Good quality, loyalty and common prosperity.
