Straight Panel Receptacle RF Connector SMA Connector
| Price: |
US $ 0.8/Piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
RH-806 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Gold |
| Body: |
Brass and Gold Plated |
| Impedance: |
50ohm |
| Coupling Mechanism: |
Clamping Type |
Product Description
Straight panel receptacle RF connector SMA connector1.good quality with reasonable price.
2.Prompt delivery

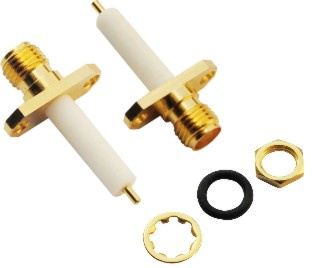

3.ROHS compliant 4.best serviceJack panel receptacle SMA connector

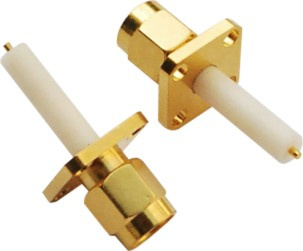

Plug panel receptacle SMA connector
Hot sell SMA connectors for electronic:SMA connector series product is widely used small coaxial connectors with threaded connections, high strength, and good shock resistance. The outer conductor ends in direct contact, so that the insertion loss to a minimum. Using the appropriate adapter cables, SMA connectors in the 18GHz still has good electrical properties. SMA series has long product life, superior performance and high reliability. Widely used in microwave devices and digital communications equipment RF circuit to connect the RF coaxial cable or microstripit, and the width performance are excellent, high frequently.Applications:1.Base Stations2.Cable Assemblies
3.ComponentsMajor technical characteristics:Temperature Range: -55 to +155°c(PE Cable-40 to 85°c)Vibration: 100m/s2 (10-2000Hz)Impedance: 50ΩFrequency: DC to 12.4GHZ(semi-rigid cable: 0-18 GHz)Working Voltage: 335V r.m.s at sea levelWithstanding Voltage: 1000V r.m.s at sea levelContact Resistance
Center contact: ≤3m Ω Outer contact: ≤ 2.5m ΩInsertion Loss: ≤0.15dB(6GHz)Insulation resistance: ≥5000M ΩCenter Conductor Retention Force: ≥0.28NCoupling nut retention force:≥ 180NVoltage Standing Wave Ratio
Straight: ≤ 1.10+0.02f Right angle:≤ 1.20+0.03fDurability(mating): ≥ 500cyclesInstrumentation: Mil/Aero and PC/LANProcess Controls: TelecomMaterial and plating:Body:Coupling Nuts, Other Metal Parts (except as noted)Brass per QQ-B-626Contacts Male: Brass
Female: Beryllium copper, heat treated
Center Contact Plating: 000030" minimum gold
Plating (Other Metal Parts)Standard:000010" gold or nickel plated
Insulators: fluorocarbon
Gaskets: Silicone rubber
Crimp Ferrule Seamless :copper tubing alloyAPPLICABLE STANDARDMIL-C-39012CECC 22110IEC 60169-15Renhotec Hardware Electronics Co., LtdQuality is essential to both of us, we believe that excellent quality, reasonable price, mutual benefit will be good basis of our cooperation. If you have any requirement, please contact us. We are looking forward to cooperating with you!As a major enterprise of RF products in China, our company manufactures a full range of products, including:1) MMCX RF coaxial connectors
2) MCX RF coaxial connectors
3) SMA RF coaxial connectors
4) SMB RF coaxial connectors
5) SMC RF coaxial connectors
6) SSMA RF coaxial connectors
7) SSMB RF coaxial connectors
8) SSMC RF coaxial connectors
9) TNC RF coaxial connectors
10) BNC RF coaxial connectors11) N RF coaxial connectors
12) 7/16 (L29) RF coaxial connectors
13) 1.6/5.6 (L9) RF coaxial connectors
14) F RF coaxial connectors
15) 1.0/2.3 (CC4) RF coaxial connectors
16) UHF RF coaxial connectors
17) MINI UHF RF coaxial connectors
18) FME RF coaxial connectors
19) TAC RF coaxial connectors
20) Reverse polarity connectors
21) Plug for cell-phones and special purpose connectors
22) Coaxial terminations
23) Lightning arresters
24) Jumper cables
25) Inter-type adaptors
RENHOTEC GROUP, established in May of 2005, specializes in operating businesses of precise Board to Board, Wire-to-board connectors, Solar photoelectric connectors, RF coaxial connectors, Industrial Terminal blocks and cable assemblies for computer & peripheral devices.After 10 years of rapid development, it owns two factories at present:Dongguan RENHOTEC Hardware Electronics Co., Ltd and Hubei RENHOTEC hardware Electronics Co., Ltd.Since its foundation, the company sticks to the principle of specialization and tries its best to supply customers with products of high quality at competitive prices, regarding the development and design of metal and plastic molds, precision high-speed punch molding, precision die casting molding, zinc (aluminum) die casting, precise plastic injection molding and automatic assembly with the support of a skilled R&D and management team.
Since company foundation of the, we emphasize canonical management and high-quality requirements.We has already acquired ISO9001, ISO14001, QC080000 and TS16949 international quality, environment and management systems certification.The company main ten series products obtained American UL & cUL certification, with the No.E248993, the solar connector components acquired Germany TUV certification, All items are in line with EU RoHS and REACH environmental requirements.
Our quality policies:Innovation and development, continual improvement, quality foremost, and customer satisfaction.
Our environmental policies:Stand to environmental protection laws and regulations, devote to pollution treatment and environmental protection, reasonably allocate and utilize resources, manufacture green products, strengthen environmental protection awareness, and ceaselessly improve environment.
Our managing principles:Good quality, loyalty and common prosperity.
