| Prod Model: |
DOSIN-808-0009 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Impedence: |
50ohm/75ohm |
| Orientation: |
Straight/180 Degree |
| Body Material: |
Zinc Alloy |
| Contact: |
Brass |
| Plating: |
Nickel or Gold |
| Factory Direct Sale: |
Yes |
| OEM: |
Weclome |
| Product Name: |
Straight UHF Female Type Cable Connector |
| Coupling Mechanism: |
Threaded Connection |
| Type: |
UHF Connector |
Product Description

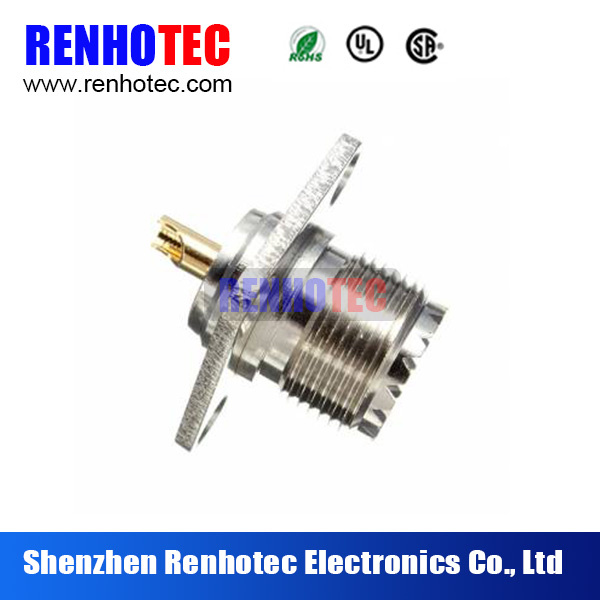

Straight UHF Female Type Cable Connector
UHF series are a variable impedance connector designed for low frequency operations 600KHz to 300MHz. This very large connector is used almost exclusively for radio and UHF applications. The low cost design of UHF connectors often results in impedance varying between 30-40Ω causing significant reflections above 300MHz. Despite this, the connector remains popular with CB/UHF (477MHz) users.
| Major Technical Characteristics |
| Electrical |
| Impedance | Non-constant |
| Frequency Range | 0-300MHz |
| Voltage Rating | 500 volts peak |
| | |
| Temperature Range |
| Mica-Filled Phenolic Insulators | -55ºC to 149ºC |
| TFE Insulators | -65ºC to 165ºC |
| Copolymer of Styrene and Polystyrene Insulators | -55ºC to 85ºC |
| Weatherproof | Except as noted, all UHF are non-weatherproof |
| |
| Mechanical |
| Mating | 5/8-24 threaded coupling |
| Cable Affixment | Braid solder, set screw, clamp and crimp |
| Application | Antennas, Military, Public Address Systems,
Low-Frequency Applications |
Package:
Normal packing: 100 pcs per tray or polybag ,800pcs per carton.
Private packing and label service are available as per your requirement.
Shipment:
1. The parts from us are sure to have quality warranty,and they are double tested before shipping.
2. The items can be sent within 7-10 working days after the payment reaches us,except for mass process, we will confirm the delivery in advance.
3. We can send your order by UPS/DHL/TNT/ FedEx. Pls contact us directly and we will use your preferred ways.
Payment:
We support payment of T/T, Paypal, West Union, etc.
FAQ:
1. When can I get the quotation?
All of inquiries will be replied within 12 hours. If it is urgent, we can be reached , 24 hours online.
2. What's your MOQ?
Normally our MOQ is 500pcs. Small order is also welcome.
3. What about the lead time for production?
3-5 days for sample, 10-15 days for bulk order.
4. How do you guarantee the quality?
All of the raw materials we used are purchased from qualified suppliers with certification approved, we promised our connectors are strictly produced accoring to UL, ROHS standards. QC will inspect goods before shipping to ensure the quality.
5. What's the warranty?
One year, 12 months.
6. How to proceed an order with you?
Please contact us by email or skype, then we will confirm you product details. If all confirmed, Proforma invoice will be available for you.
If any questions, please do not hesitate to contact with us at any time.
Welcome to contact us! We are the factory Manufactures of electronic components in China, Your best connector parner!
