Strain Force Sensor for Holes (B140)

Name: Strain Force Sensor for Holes (B140)
Brand: all-electronics-online.com
SKU: 833684235
Availability: InStock
Rating: 4.8 (40 reviews)

Price:	US $ 25-30/Piece
Min Order:	3/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	B140
Capaciy:	20n/mm2
Pattern:	Ring Type
Out-Wire:	5 Wires
Feature:	High Accuracy
Production Process:	Strain Gauge

Product Description

Brans B140 round type load cells is also Hole testing Load Cells are major players when measuring the tightening of load directly. Our Thru-Hole Series offers a variety of capacities and inner diameter sizes making it ideal for bolt fastening applications.
Products in use our Load Cell paired with Instrumentation.

Datasheet

Number	Specifications	Technique
1	Capacity	20N/mm²
2	Rated output	2.0±20%mV/V
3	Zero balance	± 0.05mV/V
4	Non‐linearity	0.10%F.S.
5	Hysteresis	0.10%F.S.
6	Repeatability	0.050%F.S.
7	Creep(30min)	0.05%F.S.
8	Temp.effect on output	0.005%F.S./10ºC
9	Temp.effect on zero	0.005%F.S./10ºC
10	Input impedance	700±20Ω
11	Output impedance	700±10Ω
12	Insulation	≥5000MΩ/100VDC
13	Recommended excitation	5V
14	Maximum excitation	10V
15	Compensated temp range	‐10~60ºC
16	Operation temp range	‐20~80ºC
17	Safe overload	150%F.S.
18	Ultimate overload	200%F.S.
19	Cable size	φ4×4000mm
20	Weight approx.	0.1kg
21	Material	Stainless Steel
22	IP Class	IP67

Key points

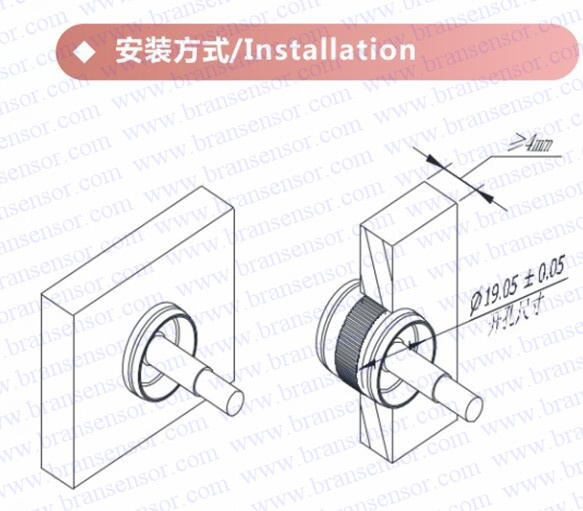

simply bolted into place
IP65 protection
For the measured objects of static and dynamic load monitoring. Such as cranes, presses and roll stand

BRANS Donut Load Cell is built for press or inline compression applications. The standard ring load cell has a very robust construction available in 17-4 PH stainless-steel, with an I.D. range of 1/8 in to 1-1/4 in and a 10 ft [3 m] #24 AWG, 4 conductor, braided shielded Teflon cable. You will also find the option for external matched output readily available.

B059 Donut Load Cell offers high accuracy and high stiffness. It has a nonlinearity of ± 0.5% of RO, a deflection of 0.002 in [0.05 mm] nominal, and an operating temperature of -60° F to 200° F. The standard LTH500 can be modified or customized to meet your requirements and most capacities are in our inventory, making them available for 24 hour shipping. Similar to our entire Load Cell product line, this model is manufactured in the USA and uses metal foil strain gauge technology.

Customized Ring type load cells, please come to Brans Technology. www.bransensor.com

What you could get from Brans?

Load Cells, Miniature and sub-miniature force sensors, Pressure Transducers/sensors, Torque Transducers, Temperature sesensors, Flow senesors, Displacement Transducers (LVDTs), Digital Gauges, Strain Gauges, Instrumentation for Test, amplifiers and data acquisition systems as well as software for structural durability investigations, tests and analysis, Measurement and Other Applications.

Why choose Brans?

Brans cooperate with HBM, FLINTEC, METTLER TOLEDO, Honeywell, Vishay and other famous brand electronic measuring instruments and system. We could learn and get the most advanced technology and news of procedures. Good manufactures means good products.

We could OEM for miniature and sub-miniature load cells with tension or compression; Big capacity load cells/sensors Brans also could make it with good quality material.

Brans products (load cells, force sensors, amplifiers… ) have been certified per ISO9001, OIML, CE, RoHS, NETP AND ATEX. Brans could promise you the best quality for measuring products.

Who Brans cooperate with?

Brans have developed solutions for a wide range of industries including automotive, aerospace, military and defense, oil and gas, R&D and material/test labs, machine and automation equipment designers and builders, off highway and heavy equipment manufacturers, medical device manufacturers, semiconduct or fabricators, utilities and energy companies, marine equipments and shipbuilding.
