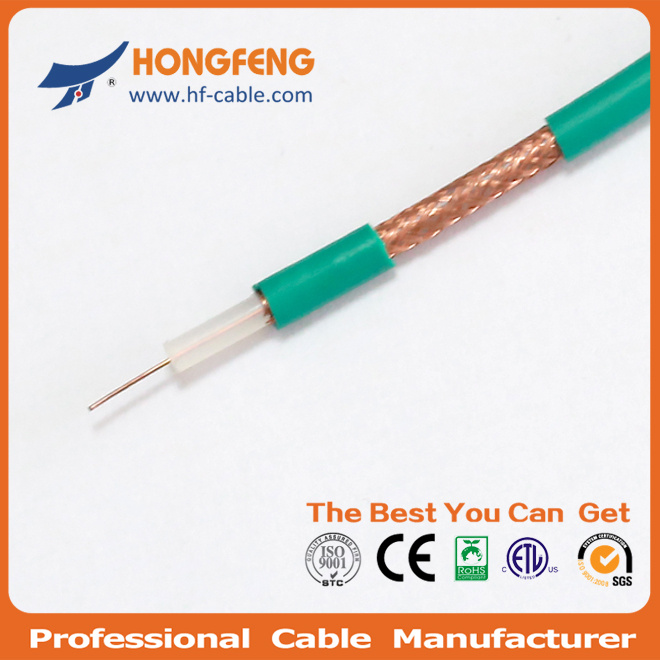

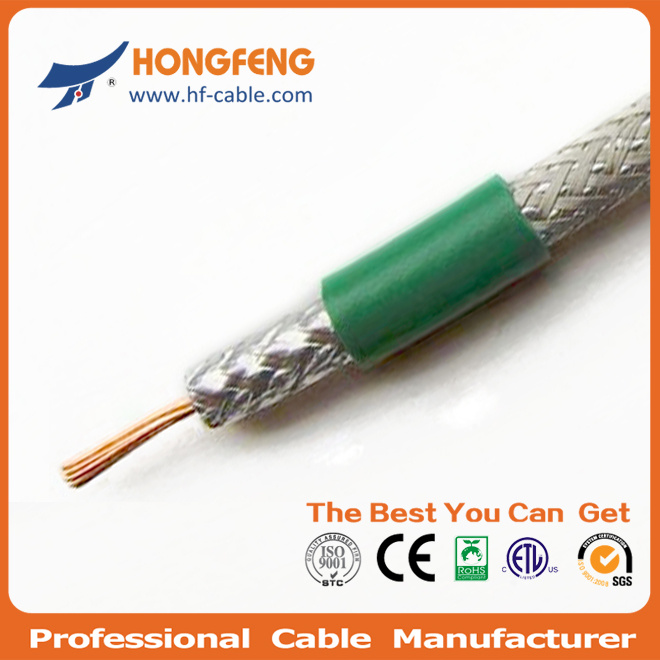

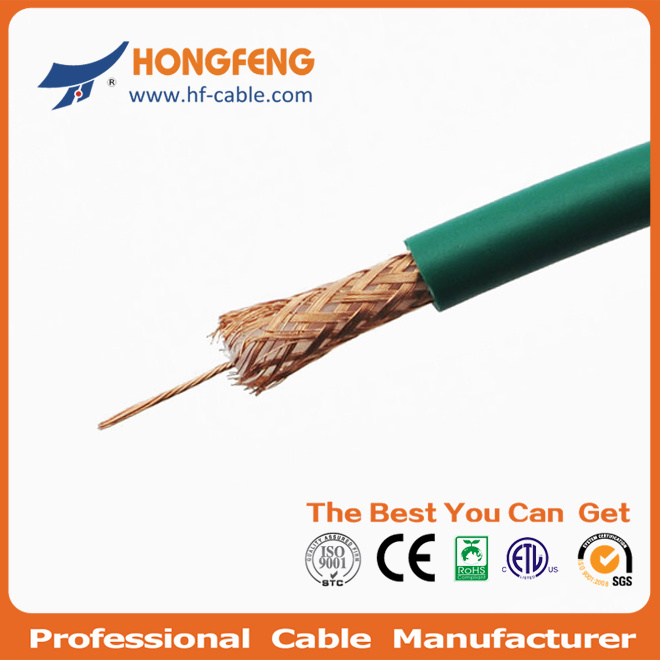

Stranded Copper Conductor CCTV/CATV Kx6 Coaxial Cable

Name: Stranded Copper Conductor CCTV/CATV Kx6 Coaxial Cable
Brand: all-electronics-online.com
SKU: 799751895
Availability: InStock
Rating: 4.7 (31 reviews)

Price:	US $ 700-1200/Meter
Min Order:	10000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	KX6 coaxial cable
Conductor:	CCS or Copper
Braiding:	30%~95%
Shield:	Double Shield, Tri Shield, Quad Shield
Apd:	Jelly (Optional)
Jacket:	PVC or PE
Colour:	Green (Dark Green)
Application:	RF Cable
Conductor Material:	Copper
Cover Material:	PVC
Certification:	ETL
Type:	Coaxial Cable

Product Description

KX6,KX8 ,VATC COAXIAL CABLE

Basic Info.

Model NO.: coaxial cable

Application:Local Communication Cable

Conductor Material:Copper,

Type:Coaxial Cable

Cover Material:PVC (Green)

Certification:CE

Jacket:PVC

Jacket Color:GREEN/Color

Impedance:75 Ohm

Braid Shied Material:BC, , CCA(60%-95%)

Inner Conductor:BC

Inner Conductor Diameter:7*0.2mm/7*0.4mm

Certificate:ISO9001, Cl2/CATV/Cm UL

Dielectric:3.66-5.72mm

Insulation Material:Bonded/Non Bonded

Jacket Diameter:6.1-8.08mm

Export Markets:Global

Additional Info.

Trademark:Hongfeng cable

Packing:100m/Roll, 200m/Roll, 305m/Roll, 100yard/Roll,

Standard:ISO

Origin:China

HS Code:85442000

Production Capacity:100, 000kms/Year

Product Description

Center Conductor:	7*0.2+0.01mm Solid Copper
Dielectric:	3.7+0.05mm Solid PE
Shield:	Al Foil/Cu Foil
Bradi Coverage:	35%-90% BC/CCA
Jacket:	6.15+0.05mm PVC /PE

Impedance:	75+3 Ohm
Capacitance:	50+3pF/km
Velocity of Propagation:	85%
Conductor resistance Max:	Inner:16.8 ohms/km Outer:26 ohms/km
Return Loss:	20dB min (5-2150MHz)gbgfbbgfb

Attenuation	[@68o F. (20o C.)]
Frequency (MHz)	Maximum (dB/100 ft.)	Maximum (dB/100 m)
5	0.46	1.5
50	1.31	4.3
100	1.80	5.9
200	2.56	8.4
400	3.66	12.0
800	5.34	17.5
862	5.58	18.3
950	5.86	19.2
1350	7.11	23.3
1750	8.24	27.0
2150	9.33	30.6
3000	11.22	36.8

Application

(1) CATV-community antenna television.

(2) CCTV-closed-circuit television.

(3) DBS-direct broadcasting satellite.

2. Package:
1) Packing Lengths: 100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll Other lengths available according to client's request;
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request

Our Product Range

1) 75 Ohm Coaxial Cable:
RG59, RG6, RG7, RG11, etc.

2) 50 Ohm Coaxial Cable:
RG58, RG142, RG174, RG178, RG213, RG214, RG316, etc.

3) MIL-C-17 Military Standard Cable:
RG59 A/U, RG59 B/U, RG6 A/U, RG11 A/U, RG58 A/U, RG58 B/U, RG58 C/U, RG213, RG214, etc.

4) Trunk Distribution Cable:
P3.412 JCA/JCAM, P3.500 JCA/JCAM, P3.565JCA/JCAM, QR320 JCA/JCAM, QR540 JCA/JCAM.

5) RF Coaxial Cable:
1/2', 1/4', 1/8', 7/8', 1-1/4',1-5/8', 1-7/8', LMR195, LMR200, LMR300, LMR400, LMR500, LMR600, 3D-FB,4C-FB,5D-FB, 7D-FB, 8D-FB, 10D-FB, etc.

6) Network Cables & LAN Cable:
CAT3, UTP/FTP CAT5, UTP/FTP/SFTP CAT5e, UTP/FTP CAT6, UTP/FTP CAT6a, UTP/FTP CAT7, etc.

7) Composite Cable:
RG59+2C Siamese Cable, RG6+2C Siamese Cable, 2RG59+2RG6, 2RG6+2CAT5e, etc.

8) British Standard Coaxial Cable:
BT3002, CT100, CT125, CT165, URM57, URM67, URM70, etc.

9) Japanese Standard Coaxial Cable:
1.5C-2V, 2.5C-2V, 3C-2V, 3C-2VR, 4C-2V, 5C-2V, 7C-2V, 10C-2V, 3D-2V, 5D-2V, 8D-2V, 10D-2V, etc.

10) French Standard Coaxial Cable:
11VATC/PATC, 17VATC/PATC, 19VATC/PATC, 21VATC/PATC, 25VATC/PATC, KX6/A, KX8, etc.

11) Alarm Cable, Control Cable:
Unscreened PVC Jacketed Alarm Cable, Screened PVC Jacketed Alarm Cable.

12) Optic Fiber Cable
GYXTW, GYXTC8S, GYTC8A, GYTA, GYFTY, GYTA53, GYXTC8S, GYXTS, Indoor Fiber Cable, etc.
