Stranded Copper Electrical Wire 10mm2

Stranded Copper Electrical Wire 10mm2
Price: US $ 0.25-0.3/Meter
Trade Terms: FOB,CFR,CIF
Min Order: 5000/Meter
Pay Type: L/C,T/T,Western Union
Prod Model: electrical wire 10mm
Markets: South America,Southeast Asia,Africa,Mid East,Western Europe
Applicable Standard: IEC60227
Type: Insulated
Conductor Type: Stranded
Conductor Material: Copper
Insulation Material: PVC
Certification: CE
Application: Indoor

Product Description

Stranded copper electrical wire 10mm2

1.Application
PVC insulated wires is suitable for laying at the fixed places. It is widely used in connecting of power device, lighting,daily electrical appliance, instrument etc.with AC rated voltage up to and including 450V/750V(U0/U).

2.Standard
The product implement the standards GB/T5023, equivalent to IEC60227.
And it can also be made complying with ASTM, DIN, BS standards etc.
In addition, we can design and manufacture the products as the requirements of customers.

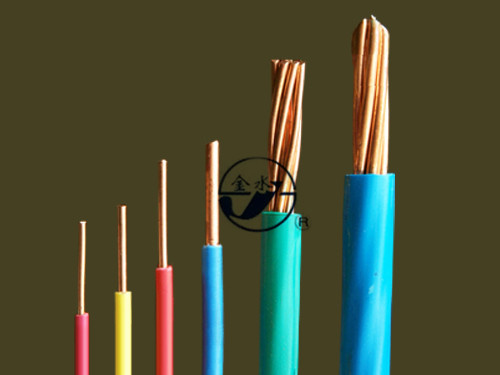

3.Brief construction
1) Conductor: Copper, solid or stranded.
2) Insulation: PVC.
3) No.cores: Single.
4) Size:1.5, 2.5, 4, 6, 10, 16, 25, 35, 50, 75, 95,120mm2.
5) Color:Optional.
We can design and manufacture wires according to special requirements of customers.

4.Service performance
1) Rated voltage: 450/750V.
2) Long-term working temperature: not be higher than 70°C.
3) When laying the cable, the ambient temperature should not lower than 0°C.
4) Minimum bending radius: Bending radius≥4D as cable overall diameter≤25mm;
                                                 Bending radius≥6D as cable overall diameter>25mm.

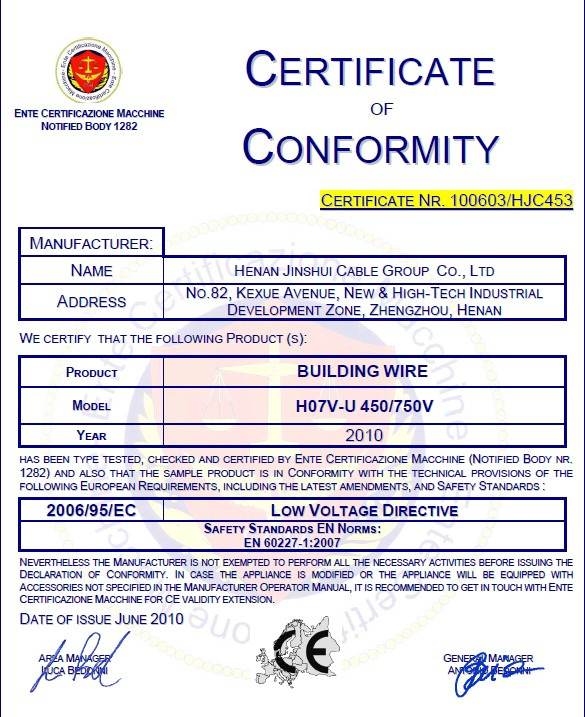

CE certificate



Reliable quality& best prices !
We will be your trusted partner !

Welcome to inquiry !
Established in 1984, Henan Jinshui Cable Group Co., Ltd. specializes in design and manufacture of various kinds of wires and cables. Our company's headquarters is located in Zhengzhou City of Henan Province, a famous city with convenient transportation in China.

Our company is in charge of 23 domestic sale companies and one trade company, Zhengzhou Jin Hang High-Tech Co., Ltd., mainly responsible for overseas market. There are 638 staff members in the factory, including 18 experienced engineers, 52 lab assistants and 568 workers. The capital asset reached USD10, 507, 000. We have various advance product lines and equipment, including 180 sets for producing use and 40 sets for testing and measurement use. Our product can perfectly meet requests of different standards, for example GB, IEC, BS and ASTM. We also have some ability to satisfy special need of customers. The annual product capacity of cables and wires of our factory is more than 10, 000, 000 kilometers.

As one of the leading manufacturers of cable industry in Henan Province, we obtained certificate of ISO9001 in 2003. All cables of colliery have gotten the certificate of safety for colliery. Our fire retardant cables are approved with the certification of proof products, and most of them met the standards of China Compulsory Certification (CCC). Moreover, we have been already licensed to enter the "Supplier of the China Government Procurement" by the government.

For years, we are keeping providing products with high quality and good service. Our cables and wires are widely used in the construction of buildings airports, power transportation, urban and rural power network reformation and other main projects. Both of products and the factory are greatly commended by customers. Also, we really highly value the overseas market. Our factory has the qualification to export independently which is awarded by Chinese government. The main products of our company have been exported to Africa, Australia, America, Italy, Singapore and other Asian countries. We insisted that pay adequate attention to every customer's request. We insist on our principle of "Good Quality Results Trust and Honesty Makes Success". We sincerely welcome you to touch with us and visit us.
