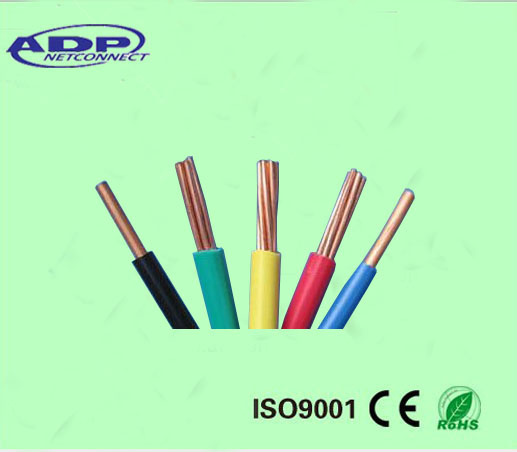

Stranded Copper Flexible Wire PVC Insulated Electrical Cable

Name: Stranded Copper Flexible Wire PVC Insulated Electrical Cable
Brand: all-electronics-online.com
SKU: 798253025
Availability: InStock
Rating: 4.8 (71 reviews)

Price:	US $ 0.1-0.5/Meter
Min Order:	10000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	h07v-r electrical cable
Voltage:	Low and Medium Voltage Cable
Current:	DC&AC
Model:	H07-R
Size:	1.0mm2, 1.5mm2, 2.5mm2, 4mm2, 6mm2, 10mm2
Delivery Time:	15-20 Days After Payment
Type:	Insulated
Conductor Type:	Solid
Application:	Building Cabling Wire
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	RoHS
Sheath Material:	PVC/XLPE
Brand:	Customized or Szadp

Product Description

Stranded Copper Flexible Wire PVC Insulated Electrical Cable

Basic Info:
Model No.:H07V-R electrical cable(BVR)
Type: Insulated
Application: Construction,Overhead,Underground.
Certification:ISO 9001,CCC,CE,ROHS.
Sheath Material: PVC
Conductor Material: Copper
Conductor Type: Solid for BV,stranded for BVR and RV
Insulation Material: PVC
Shape: Round cable
Valtage Range: 300/500V,450/750V
Conductor:Bare Copper

Rated Voltage(V)	Nominal Cross-section(mm)	Conductor type	Upper Limit of O.D. (mm)	Maximum D.C. resistance at 20 centigrade (Ω/km)	Maximum insulation resistance at 70 centigrade MΩ.km	Recommended ampacity(A)	Reference weight (kg/km)
300/500	0.5	1	2.4	36	0.015	13	8.3
	0.75	1	2.6	24.5	0.012	17	10.9
	0.75	2	2.8	24.5	0.014	17	11.8
	1	1	2.8	18.1	0.011	20	13.7
	1	2	3	18.1	0.013	20	14.8
450/750	1.5	1	3.3	12.1	0.011	25	20
	1.5	2	3.4	12.1	0.01	25	21.3
	2.5	1	3.9	7.41	0.01	34	31.5
	2.5	2	4.2	7.41	0.009	34	34.4
	4	1	4.4	4.61	0.0085	44	46.8
	4	2	4.8	4.61	0.0077	44	50
	6	1	4.9	3.08	0.007	58	66.7
	6	2	5.4	3.08	0.0065	58	71
	10	2	6.8	1.83	0.0065	79	118
	16	2	8	1.15	0.005	111	178
	25	2	9.8	0.727	0.005	146	280
	35	2	11	0.524	0.004	180	378
	50	2	13	0.387	0.0045	228	508
	70	2	15	0.268	0.0035	281	717
	95	2	17	0.193	0.0035	344	991
	120	2	19	0.153	0.0032	397	1228
	150	2	21	0.124	0.0032	456	1511
	185	2	23.5	0.0991	0.0032	519	1894
	240	2	26.5	0.0754	0.0032	592	2468
	300	2	29.5	0.0601	0.003	685	3089
	400	2	33.5
