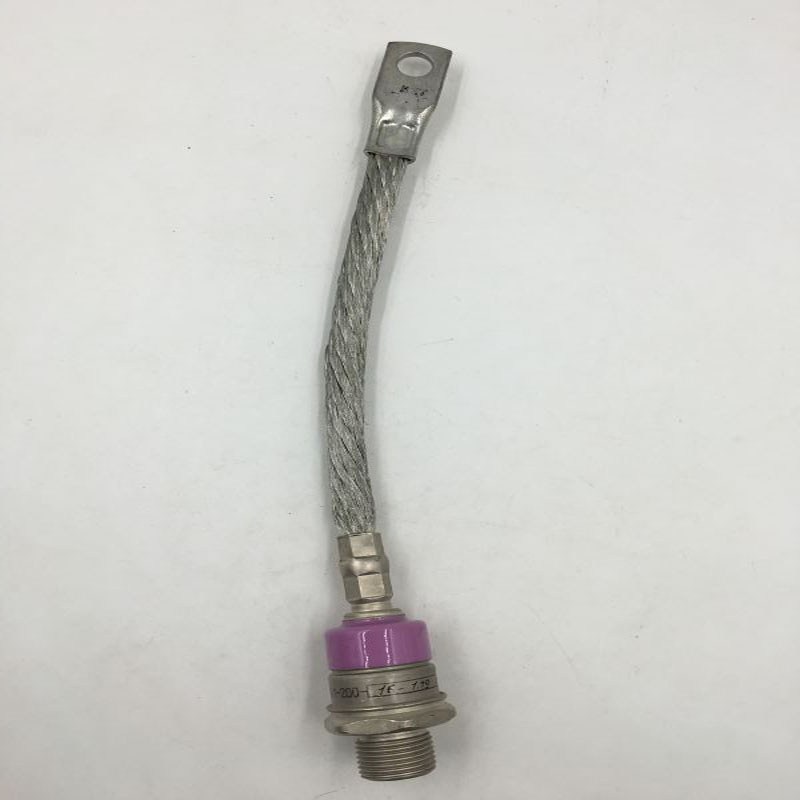

Stud Version Russian Type Semiconductor

Name: Stud Version Russian Type Semiconductor
Brand: all-electronics-online.com
SKU: 783847875
Availability: InStock
Rating: 4.7 (83 reviews)

Price:	US $ 1-60/Piece
Trade Terms:	FOB
Min Order:	6/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	D171-500
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Vrrm:	100-2400V
Irrm:	50mA
If(AV):	500A
Manufacturing Technology:	Discrete Device
Material:	Element Semiconductor
Type:	Intrinsic Semiconductor
Package:	Metal Ceramic Seal
Application:	AC DC Switch, High Power Transformer
Model:	D171-500
Batch Number:	2016+
Brand:	Shangjing

Product Description

Features
High surge current capability
Stud cathode and stud anode version
Wide current range
Inch device version available

Typical Applications
Battery charges
Converters
Power supply
Machine tool controls
Welders
Motor controls
Lighting circuits

Type	VRRM	IRRM	IF(AV)	IF(RMS)	IFSM	VFM/IFM	Tj	Rjc	M2	Wt	Outline
			Tc55° C		10ms	25° C
	V	mA	A	A	kA	V/A	° C	° C /W	kN	kg
D212-10(X)	100-1200	3	10	15	0.25	1.25/31	-40 ~ +150	2.700	0.9-1.1	0.006	RSD1
D212-16(X)	100-1200	3	16	25	0.27	1.25/50		2.000	0.9-1.1	0.006
D212-25(X)	100-1200	3	25	39	0.34	1.25/78		1.250	0.9-1.1	0.006
D222-32(X)	100-1200	5	32	50	0.46	1.25/100		1.000	1.4-1.8	0.015	RSD2
D222-40(X)	100-1200	5	40	62	0.55	1.25/125		0.800	1.4-1.8	0.015	RSD2
D232-50(X)	100-1600	6	50	76	1.20	1.25/157		0.600	5.0-6.2	0.027	RSD3
D232-63(X)	100-1600	6	63	96	1.40	1.25/198		0.500	5.0-6.2	0.027
D232-80(X)	100-1600	5	80	125	1.50	1.25/250		0.400	5.0-6.2	0.027
D141-100(X)	100-1600	20	100	180	2.20	1.25/314		0.400	6-10	0.090	RSD4
D151-125(X)	100-1600	20	125	195	3.00	1.25/392		0.300	10-20	0.165	RSD5
D151-160(X)	100-1600	20	160	300	4.50	1.25/502		0.240	10-20	0.165	RSD5
D161-200(X)	100-1800	40	200	400	5.50	1.25/602		0.150	20-30	0.250	RSD6
D161-250(X)	100-1800	40	250	480	6.40	1.25/785		0.140	20-30	0.250
D161-320(X)	100-1800	40	320	520	7.50	1.25/1005		0.130	20-30	0.250
D171-400(X)	100-2400	50	400	725	14.25	1.25/1256		0.085	20-30	0.465	RSD7
D171-500(X)	100-2400	50	500	760	14.0	1.25/1500		0.080	25-35	0.465	RSD7
