Sty-Kc-CS Intelligent Save Power Capacitor

Name: Sty-Kc-CS Intelligent Save Power Capacitor
Brand: all-electronics-online.com
SKU: 838075245
Availability: InStock
Rating: 4.3 (47 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	STY-Kc-cs
Warranty Time:	2 Years
Delivery Time:	2 Weeks
Single Compensation:	Split Phase Compensation
Packing:	Wooden Packing
Type:	Polypropylene Capacitor
Application:	High Voltage
Package Type:	Surface Mount
Capacitance:	1-40kVA

Product Description

Product Description:

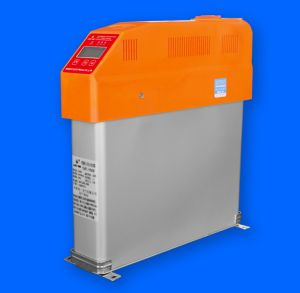

STY-KC-CS series intelligent power capacitors
The product is widely used in the electric systems of low voltage inductive load, such as urban power network, rural power network, civil construction, factories, mines and other enterprises, petrochemical industry, electrified railway, rail traffic and other fields, acting as a reactive compensation device of low voltage power distribution networks.

It has prominent effects in enhancing power factor, reducing line loss, stabilizing power network voltage, ensuring power supply quality, saving energy, lowering loss and improving efficiency, so that the new generation low voltage reactive compensation device is featured by good compensation effect, smaller volume, more cost saving, more flexible use, more convenient maintenance and higher reliability, meeting higher requirements of modern power networks to reactive compensation.

Specifications and data of main product types:

Compensation modes	Product types	Type specifications	Capacitor Rated voltage(V)	Rated capacitance (kvar)	Dimensions (L×W×H)mm³
Three-phase compensation	LCD type or (Digital tube type -A)	STY-KC/CS /450/10(5+5)	450	10	380×80×245
		STY-KC/CS /450/15(10+5)	450	15	380×80×265
		STY-KC/CS /450/20(10+10)	450	20	380×80×265
		STY-KC/CS /450/30(20+10)	450	30	380×80×345
		STY-KC/CS /450/40(20+20)	450	40	380×80×345
		STY-KC/CS /450/50(25+25)	450	50	380×110×350
		STY-KC/CS /450/60(30+30)	450	60	380×110×390
		STY-KC/CS /450/70(35+35)	450	70	380×110×480
Phase-splitting compensation	LCD type or (Digital tube type -A)	STY-KC/CF /250/5	250	5	380×80×245
		STY-KC/CF /250/10	250	10	380×80×265
		STY-KC/CF /250/15	250	15	380×80×295
		STY-KC/CF /250/20	250	20	380×80×345
		STY-KC/CF /250/25	250	25	380×80×385
		STY-KC/CF /250/30	250	30	380×80×405

Huangshan Safety Electric Technology Co., Ltd., is located in the Huangshan city, which is one of the leading manufacturer and exporter in the field of low voltage electric appliance in China,

We produce circuit breaker (MCB, ELCB, RCCB, RCBO, MCCB),

AC capacitor (low voltage power capacitor, motor run and starting capacitors, lighting capacitors, )

Pushbutton, switches, contactor, indication lamps, distribution box, etc series products, at present, we have more 200 workers and with about 20000 square meters building workshop for the production line,

We have gotten the ISO9001, CCC, , CE, TUV, UL certificate. We produce top quality all along and meet customers' quality requirement,

We have the development department by ourselves, we can offer OEM, ODM service and develop new products every year.

We promise to offer you superior products, favorable price, and timely delivery.

If you are interested in cooperating with us, please feel free to contact with us in your earliest convenience time.
