Sub-Miniature Compression Load Cell (5 kg to 500 kg) 1mv / V / IP65

Name: Sub-Miniature Compression Load Cell (5 kg to 500 kg) 1mv / V / IP65
Brand: all-electronics-online.com
SKU: 794147755
Availability: InStock
Rating: 4.3 (42 reviews)

Price:	US $ 59/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QH-62B
Type:	Pancake Load Cell
Capacity:	From 5kg to 500kg
Ultimate Overload:	Fs% 150
Safe Overload:	Fs% 120
Aplication:	Vehicle Scales
Pattern:	Pancake Load Cell

Product Description

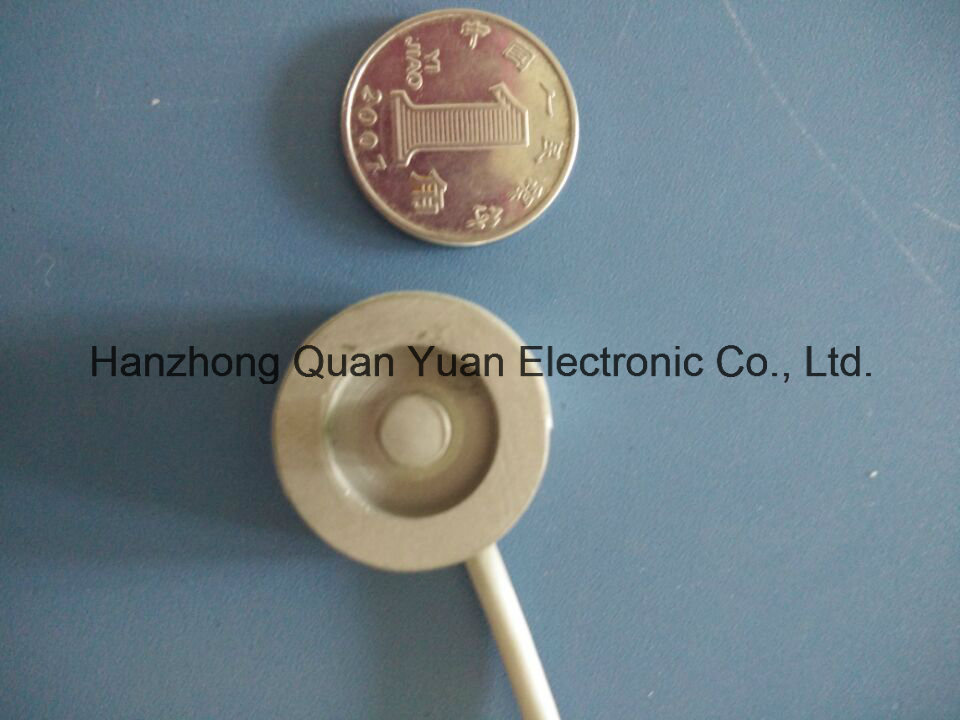

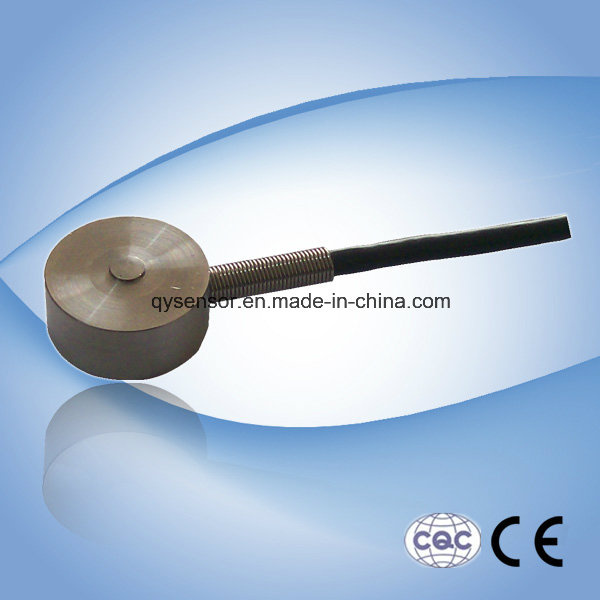

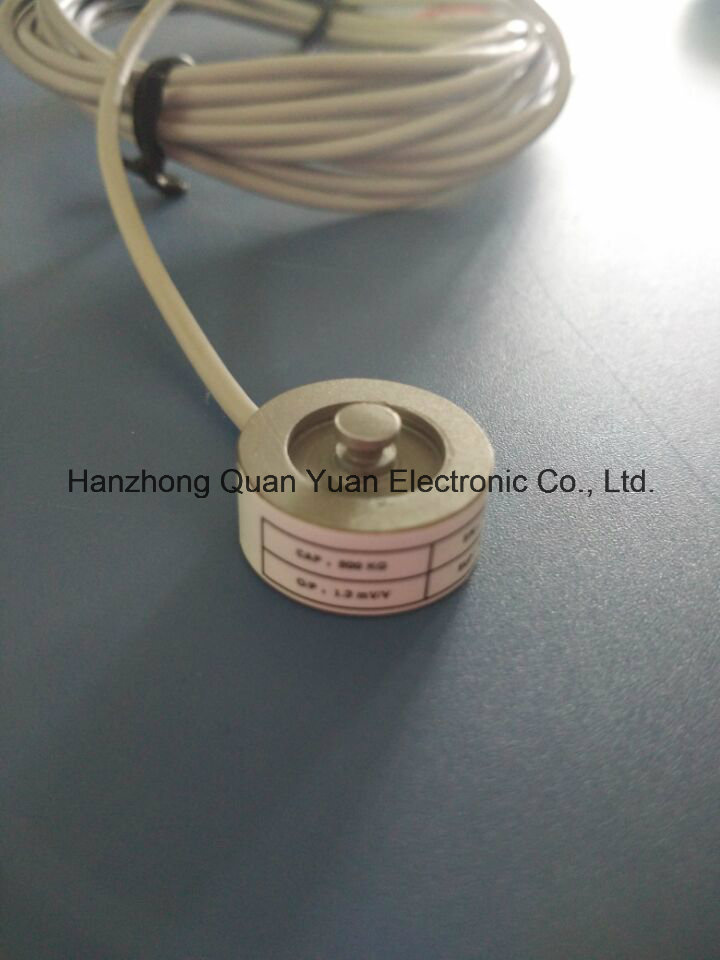

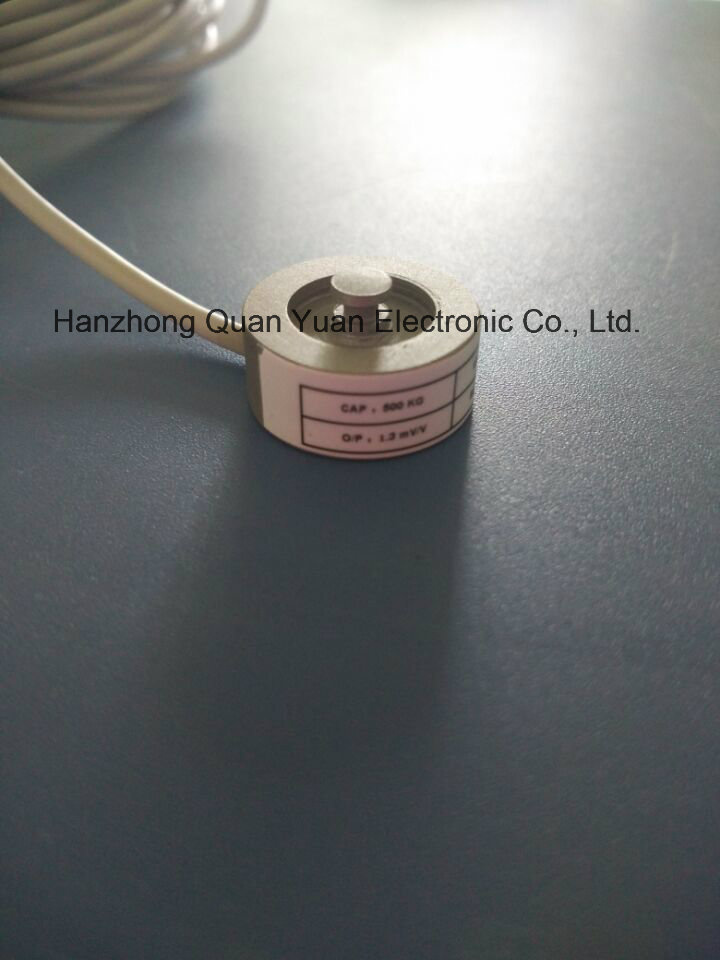

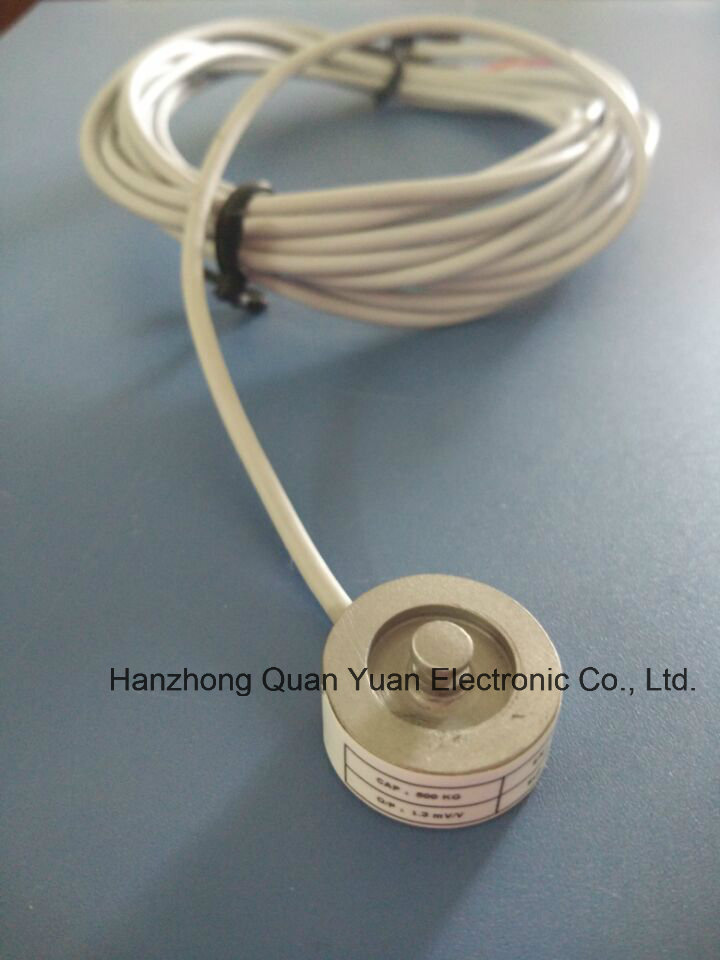

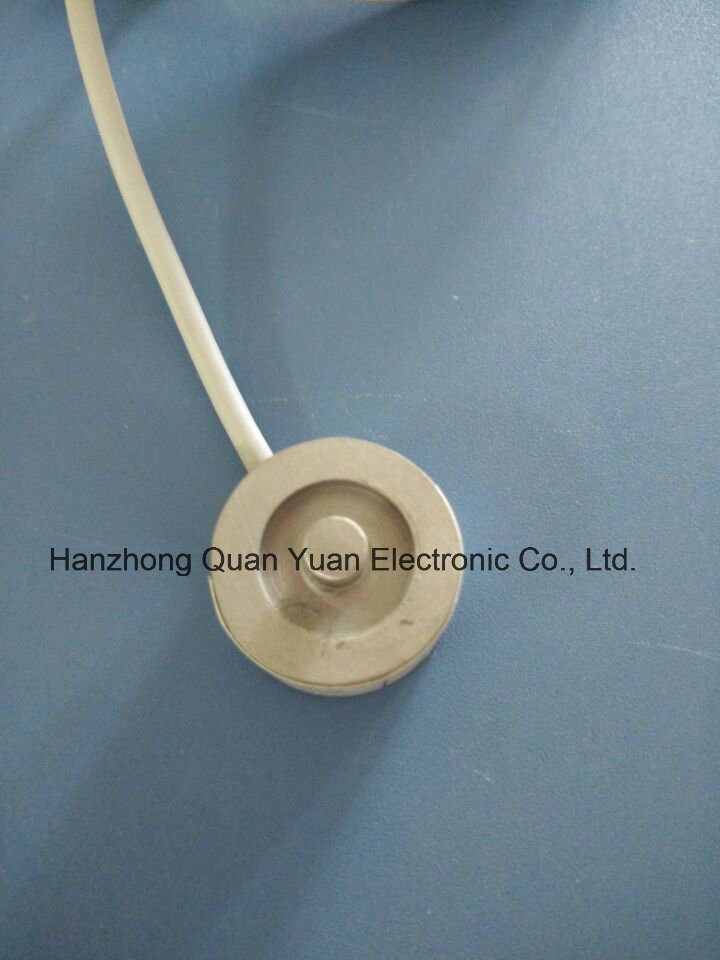

Sub-miniature Compression Load Cell(kg to 500 kg) 1mV/V/ IP65

Product Discription:

QH-62B load cells are available in the capacities of 5kg to 500kg.

Alloy. construction with wheel shaped type,

Silicon adhesive sealed, surface anodized and anti-corrosion.

Integral structure and easy installation.

Suitable for platform scale and vehicle scales.

Features:

Capacity: 5kg to 500kg

High accuracy.

Aluminum parallel beam.

Integral installation.

The cable length could be chose by customer's application.

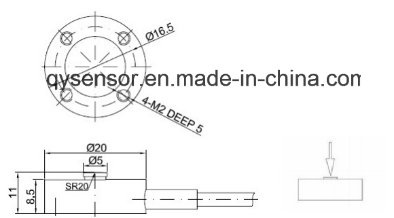

Electrical connection and Dimensions:

Technical Specifications:

Specifications:
capacity	kg	5,10,20,30,50,100,200,300,500
safe overload	%FS	120
ultimate overload	%FS	150
rated output	mV/V	1.0 ± 0.2
excitation voltage	Vdc	10
combined error	%FS	± 0.3	± 0.5	± 1
zero unbalance	%FS	± 2
non-linearity	%FS	± 0.3	± 0.5	± 1
hysteresis	%FS	± 0.3	± 0.5	± 0.5
repeatability	%FS	± 0.1	± 0.2	± 0.2
creep	%FS/30min	± 0.1	± 0.2	± 0.3
input resistance	Ω	350 ± 10
output resistance	Ω	351 ± 4
insulation resistance	M Ω	≥ 5000 @ 50 Vdc
operating temperature range	ºC	-10 ~ +60
compensated temperature range	ºC	-10 ~ +40
temperature coefficient of SPAN	%FS/10ºC	± 0.05	± 0.1	± 0.2
temperature coefficient of ZERO	%FS/10ºC	± 0.05	± 0.1	± 0.2

Electrical connection:

Excitation+ red Excitation- black Signal+ green Signal- white

Four-core shielded cable with polyethylene. Cable is not connected with elastomer.

Cable length:0.45 m

Cable diameter :4 ±0.2 mm

The cable length could be chose by customer's application.
