Submersible Level & Temperature Sensor (QST-204)

Name: Submersible Level & Temperature Sensor (QST-204)
Brand: all-electronics-online.com
SKU: 682465061
Availability: InStock
Rating: 4.8 (85 reviews)

Price:	US $ 92-108/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QST-204
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Range:	Level 0~100mh2o
Accuracy:	0.1% Fs, 0.25% Fs (Standard)
Body Material:	Stainless Steel
Temperature:	-20--+80

Product Description

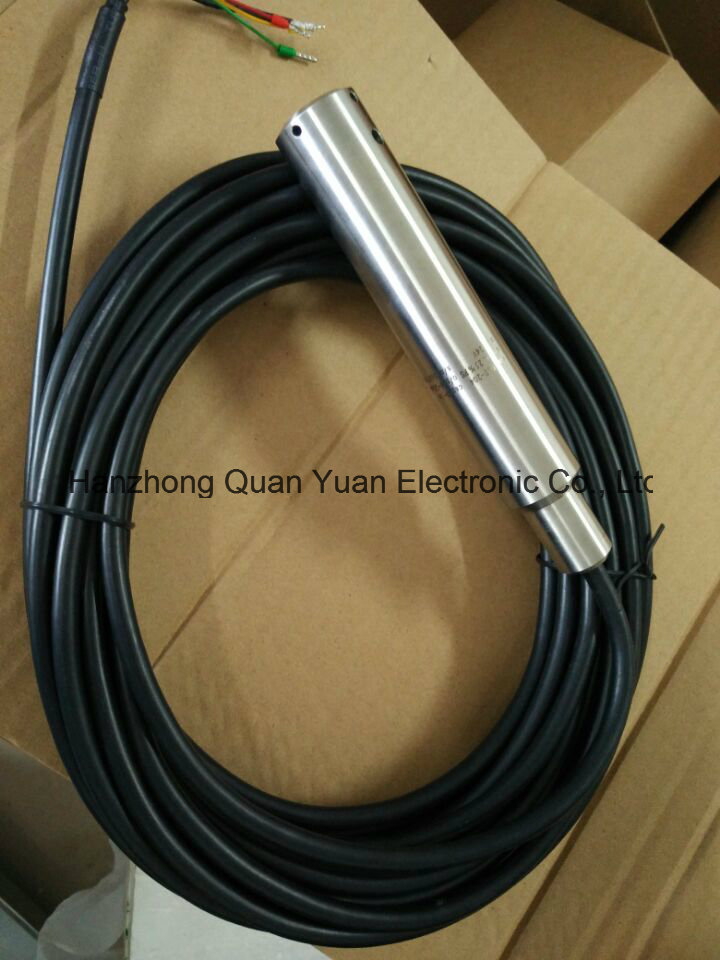

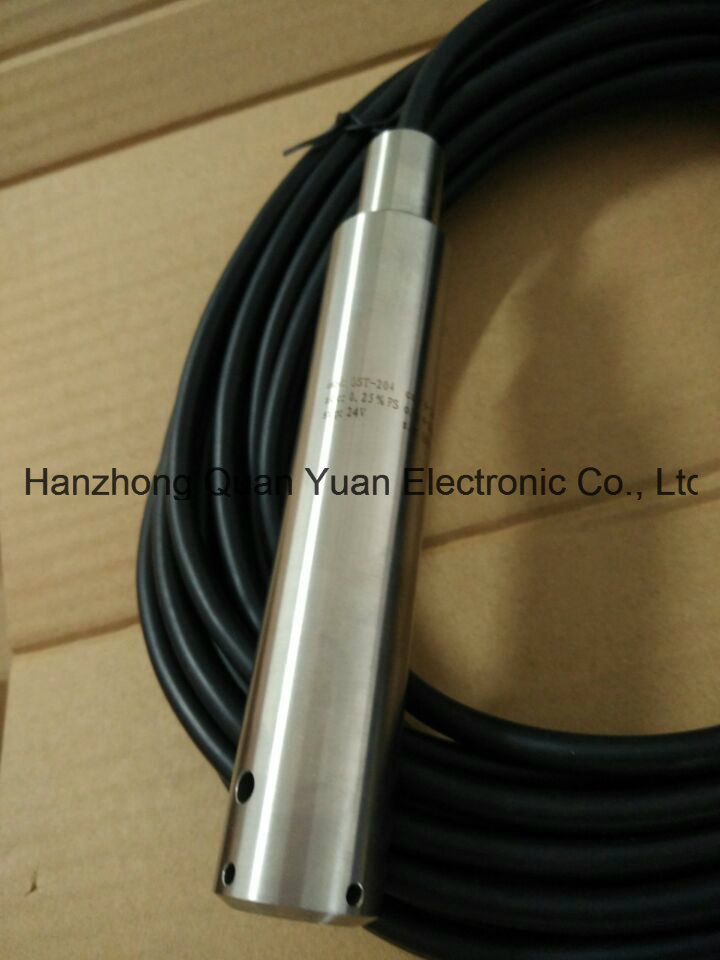

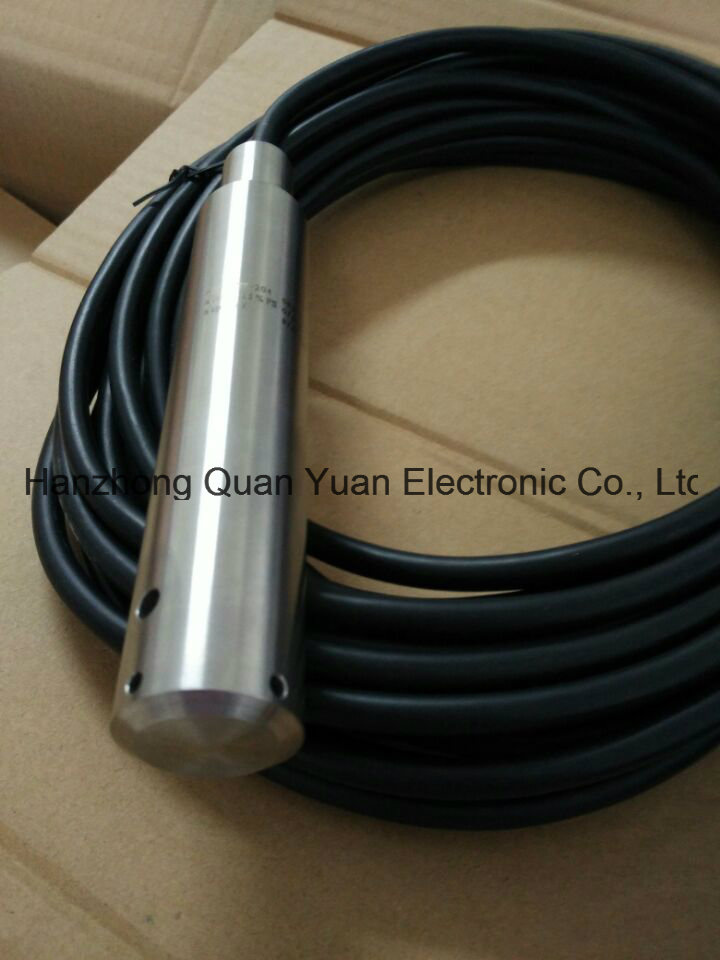

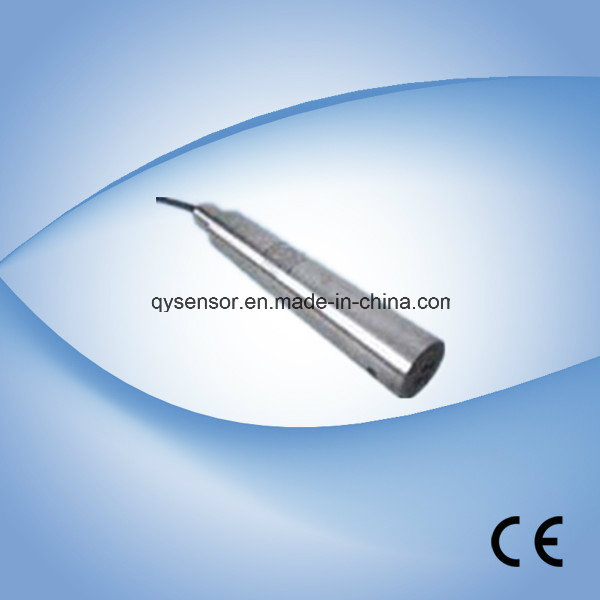

Submersible Level & Temperature Sensor (QST-204)

Application:QST-204 submersible level & temperature integration transmitter in composed by high accuracy & stability pressure sensor, temperature sensor and special propose circuit, the level and temperature of measured media will be transformed to 4~20mA or 0 ~ 10mA electrical output signal separately. With the characteristics of high reliability and high stability, it is widely used for measuring static and dynamic state of various liquid in water works, oil refinery, chemical plant, glassworks, sewage treatment works, water supply system, reservoir and riverway.

Features:

Submersible temperature level transmitter

4mA~20mA signal output,0~5, 0~10VDC can be choosen Measure range:Level 0~100mH2O, Temperature≤80ºC High accuracy

Good stability

Wide operation temp.:-20ºC~+80ºC

Good ability in corrosion resistance:316L diaphragm,1Cr18Ni9Ti housing Trebling lightning protection, anti-condensation and anti-interference design

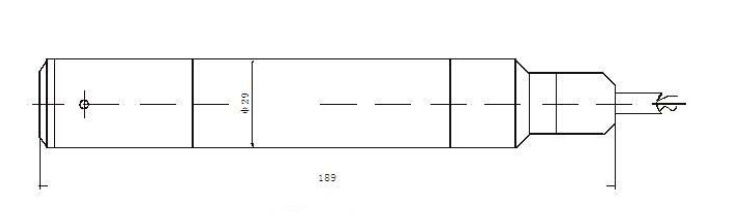

Dimensions:

Technical Specifications

Measuring media	Liquid which are compatible to 316L stainless steel
Measuring range	mH2O			0~100

	transmitter			4~20mA
	(2 wires)
Signal output
	transmitter		0~10mA,0~5V, 0~10V

	(3 wires)

Power supply	Vdc		12~36V(Standard 24V)
Static accuracy	%FS		0.1	0.3	0.5
non-linearity hysteresis	%FS		≤0.1	≤0.3	≤0.5
zero drift	%FS/4h		≤0.1	≤0.3	≤0.5
Temp. coefficient of	%FS/ºC		≤0.01	≤0.03	≤0.05
ZERO

Long-term stability	%FS/year		0.1	0.2	0.3
Response time	(10%~90%)ms			≤1
safe overload	%			200
Operation temp.	ºC			-25~+80
Compensated temp.	ºC			0~+70
Material of diaphragm		316L Stainless steel
Defend grade			IP 67
Material for housing			1Cr18Ni9Ti
Explosion-proof grade			Exia IICT6

Electrical connection:

For 4~20 mA level output & 4~20 mA temperature output

Power +: red	signal (level): green
Signal (temperature): blue	shielded wire: black

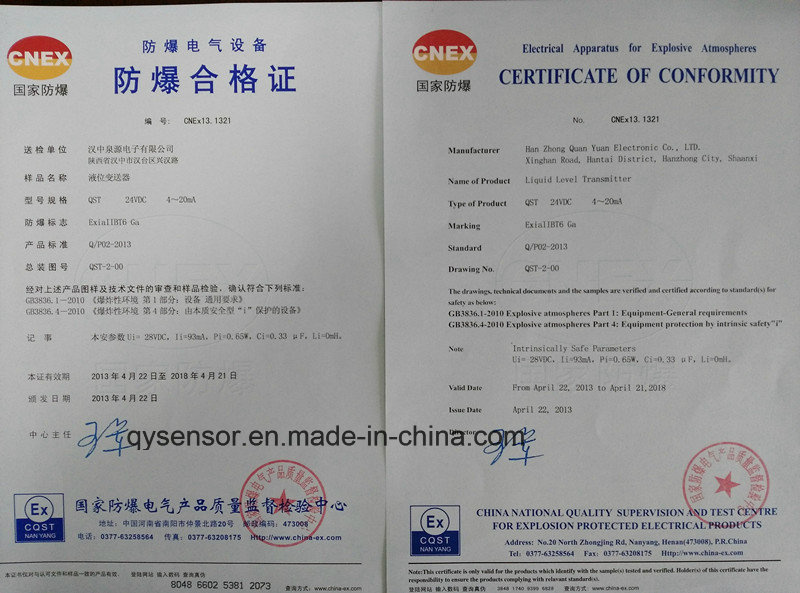

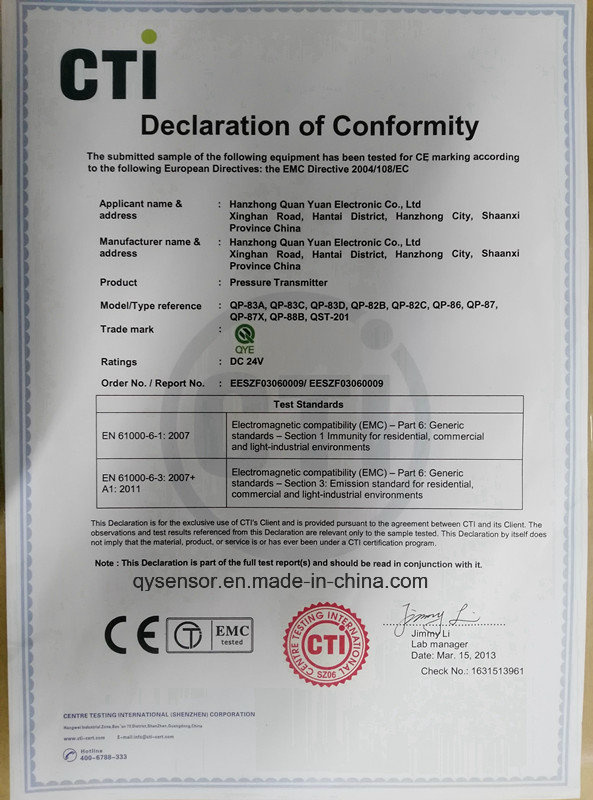

Certificates:
