Submersible Pressure Sensor

Name: Submersible Pressure Sensor
Brand: all-electronics-online.com
SKU: 831422295
Availability: InStock
Rating: 4.3 (130 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	IP16

Product Description

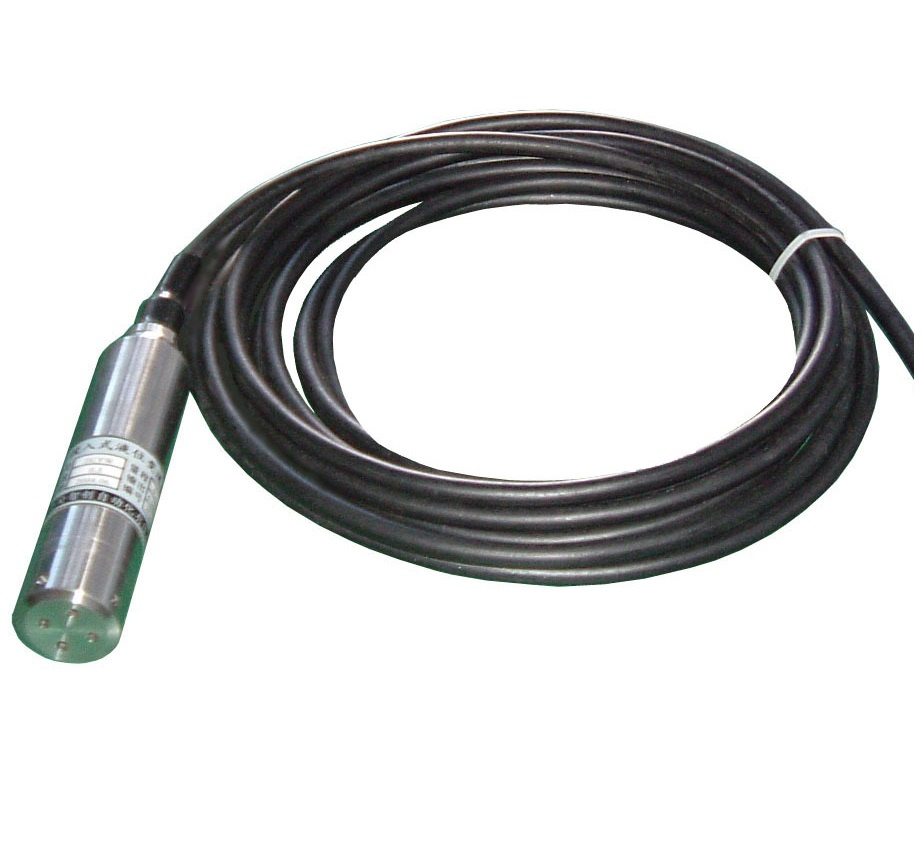

IP16 Submersible Level Transmitter

Introduction

IP16 submersible level transmitter, composed by high accuracy & stability pressure sensor, is transformed to standard 4~20mA electrical output signal separately. The unique craft seal structure has good performance of preventing leak, even this product is be immersed into liquid for a long time, still has good operation reliability. It is featured with high accuracy, good stability, long service life as well as easy installation etc.

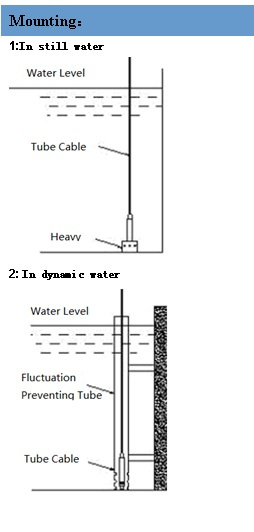

Installation

1:In still water

2: In dynamic water

Parameters

Media	Oil or Liquid
Type	Gauge or absolute
Range	0~300m
Accuracy	0.25%FS
Output	4~20mA,0~5V,1~5V,0~10V RS485
Power	12~36VDC
Working Temp.	-30~60ºC
Environment Temp.	-40~85ºC
Zero drift	≤±0.05%FSºC
Span drift	≤±0.05%FSºC
Compensation Temp.	0~70ºC
Overload pressure	200%FS
Burst pressure	500%FS
Response Time	≤2ms
Load	(Current output)250~1425Ω(Voltage output)≥2KΩ
Sealing	IP68
Long time stability	0.1%FS/Year
Vibration	0.1%FS
Protection	IP68
Explosion Proof	ExiallCT6

*IP16*	*Submersible Level Sensor*
*IP16U IP16*	IP16 Level Transmitter With Only Submersible Part
*IP16S*	IP16 Level Transmitter With Separate Structure
*IP16D*	IP16 Level Transmitter With Separate and Display Structure
	0	RS485 Output(Modbus Protocol)
	3	0.5~4.5V(Three-Wire)
	4	1~5V( Three-Wire )
	5	4~20mA( Two-Wire )
	6	0~5V( Three-Wire )
	7	0~10V( Three-Wire )
	9	Output type according the customer request
		Mxxx	Xxx meter cable length
				Mxxx	0~xxx meter liquid level
					G	Gauge
					S	Seal
					A	Absolute
IP16U	5	M005	-	M005	G
