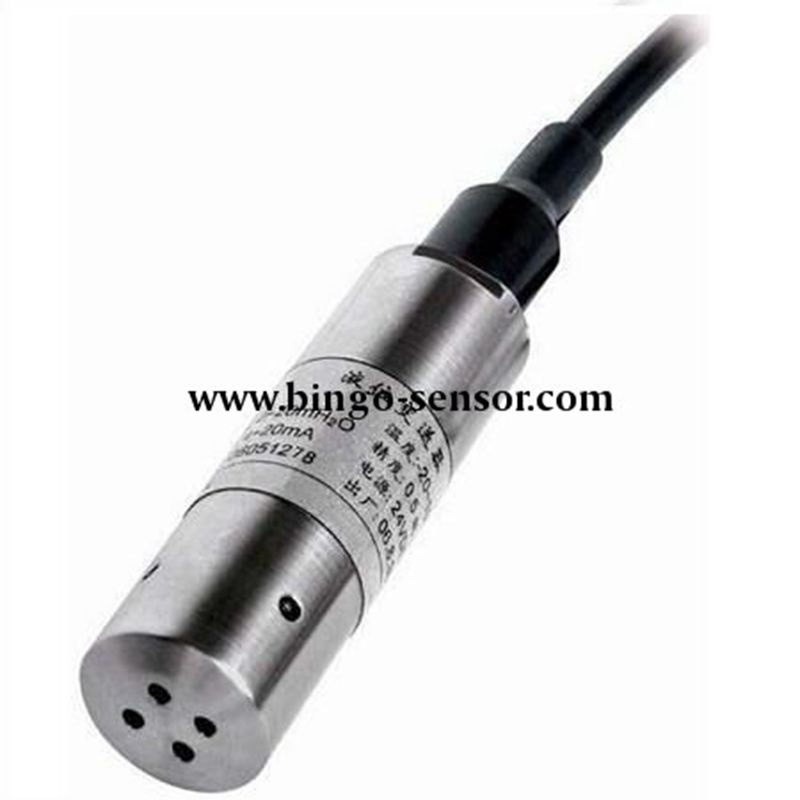

Submersible Pressure Transmitter or Pressure Sensor

Name: Submersible Pressure Transmitter or Pressure Sensor
Brand: all-electronics-online.com
SKU: 726084835
Availability: InStock
Rating: 5 (97 reviews)

Price:	US $ 1-11/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PT-S002
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pressure:	0~1^^2^^3^^4^^5^^10^^200m
Output:	4~20madc
Accuracy:	0.25%Fs
Overload Capacity:	150%

Product Description

Introduction
PT-S002 type silicon piezoresistive level transmitter level sensor based on the measurement
Of the static pressure of the liquid level proportional to the depth of the liquid, and after
Amplification circuit converts the standard current voltage signal output, establish output
Level electrical signals depth linear correlation of liquid depth measurement. In the structure,
It use waterproof wire and stainless steel housing sealed connection, snorkel in the cable
With the outside world, the design of the internal structure is anti-condensation. Has good
Stability and reliability, and are widely used in the measurement and control of the water
Level in the field of environmental protection, water conservancy, power plants, urban water
Supply and drainage, hydrology exploration.

Technical Parameter

Pressure range	0~1^^2^^3^^4^^5^^10^^200m
Output	4~20mADC(two wire), 0~5VDC(three wire or four wire), 0~10mADC(three wire or four wire)
Accuracy	≤±0.25%FS(typical);≤±0.5%FS(max)
Years stability	≤±0.1%FS(typical);≤±0.2%FS(max);
Overload capacity	150%
Supply voltage	12~28VDC(typical:24VDC)
Compensation temperature	-20ºC ~+70ºC
Working temperature	-40ºC ~+85ºC
Insulation resistance	>100MΩ/50V
Insulating strength	>500MΩ/500V
Manometry way	Immersion
Electrical connection	Waterproof seal cable wire
Medium	Liquid compatible with 316LSS
Protection Grade	IP65
Explosion-proof Grade	ExiallCT5
