| Prod Model: |
PT-S003 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output: |
4~20madc |
| Accuracy: |
0.25%Fs |
| Overload Capacity: |
150% |
| Insulation Resistance: |
>100mΩ/50V |
Product Description
Introduction

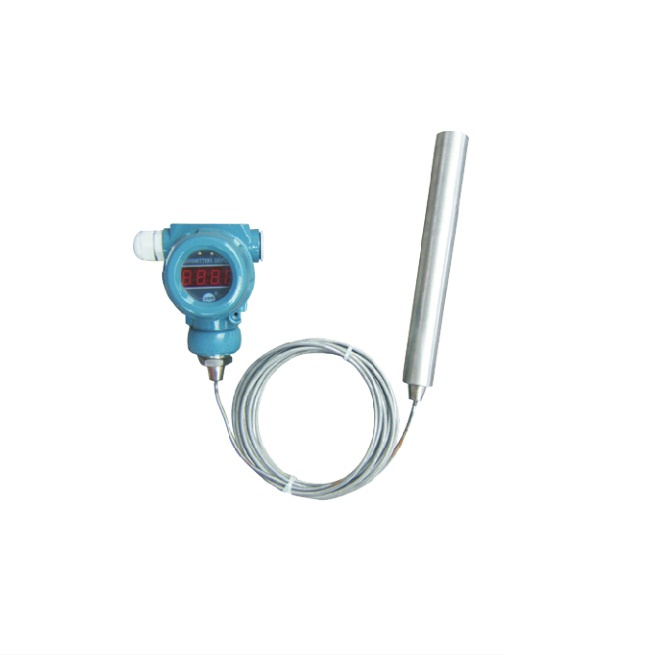

PT-S003 anti-lightning level transmitter utilizes OEM oil-filled core encapsulated in stainless steel housing, and front-end protection cap play the protective role of the sensor diaphragm also enable smooth liquid come into contact with the diaphragm; Waterproof wire and housing seal connection, the vent tube within the cable in communication with the atmosphere of the internal structure to prevent condensation design. And internal circuit design of the three anti-lightning module, which can effectively prevent the destruction of the induced lightning
Technical Parameter
| Pressure range | 0~1^^2^^3^^4^^5^^10^^200m |
| Output | 4~20mADC(two wire),
0~5VDC(three wire or four wire),
0~10mADC(three wire or four wire) |
| Accuracy | ≤±0.25%FS(typical);≤±0.5%FS(max) |
| Years stability | ≤±0.1%FS(typical);≤±0.2%FS(max); |
| Overload capacity | 150% |
| Supply voltage | 12~28VDC(typical:24VDC) |
| Compensation temperature | -20ºC ~+70ºC |
| Working temperature | -40ºC ~+85ºC |
| Insulation resistance | >100MΩ/50V |
| Insulating strength | >500MΩ/500V |
| Manometry way | Immersion |
| Electrical connection | Waterproof seal cable wire |
| Medium | Liquid compatible with 316LSS |
| Protection Grade | IP65 |
| Explosion-proof Grade | ExiallCT5 |
Our service:
1). Delivery in time,delivery time is 7 days for sample and 15 working days for bulk order;
2). Strong production capacity and strict quality control system;
3). Your inquiry and problems related to our products or prices will be replied in 24 hours;
4). Well-trained and experienced staffs to answer all your inquires;
5). After-sale tracking service for all of our clients;
6). OEM is available; small quantities, mixed bulk orders are also welcome;
7). Payment: L/C, D/A, D/P, T/T, Paypal , Western Union, MoneyGram;
8). Delivery way: UPS, DHL, TNT, FEDEX, EMS, CHINA POST.
Guarantee:
1).12 months warranty for most of our products;
2). We will arrange delivery of the goods on time;
3). Within the warranty period, we will bear all the quality problem of our products;
4). Beyond the warranty period, we will despatch the replacement parts to help fix the products, but the parts will be charged;
5). Without any problem, we will gain the feedbacks of our products to help improve better products.
